BioMax2 / KBio2-Online
Installation and Programming Manual
www.kimaldi.com Page 15 of 91
JP1, JP2: Jumpers to select KSP Application_ID (see Subsection 6.3.1. )
LEDs showing the electronics status:
LD1 - 3V3 supply operating
LD2 - Rx/Tx Instructions or Events between BioMax2 and the Host computer
LD3 - Red - Ethernet Link Error
LD4 - Green - Ethernet Activity (when blinking).

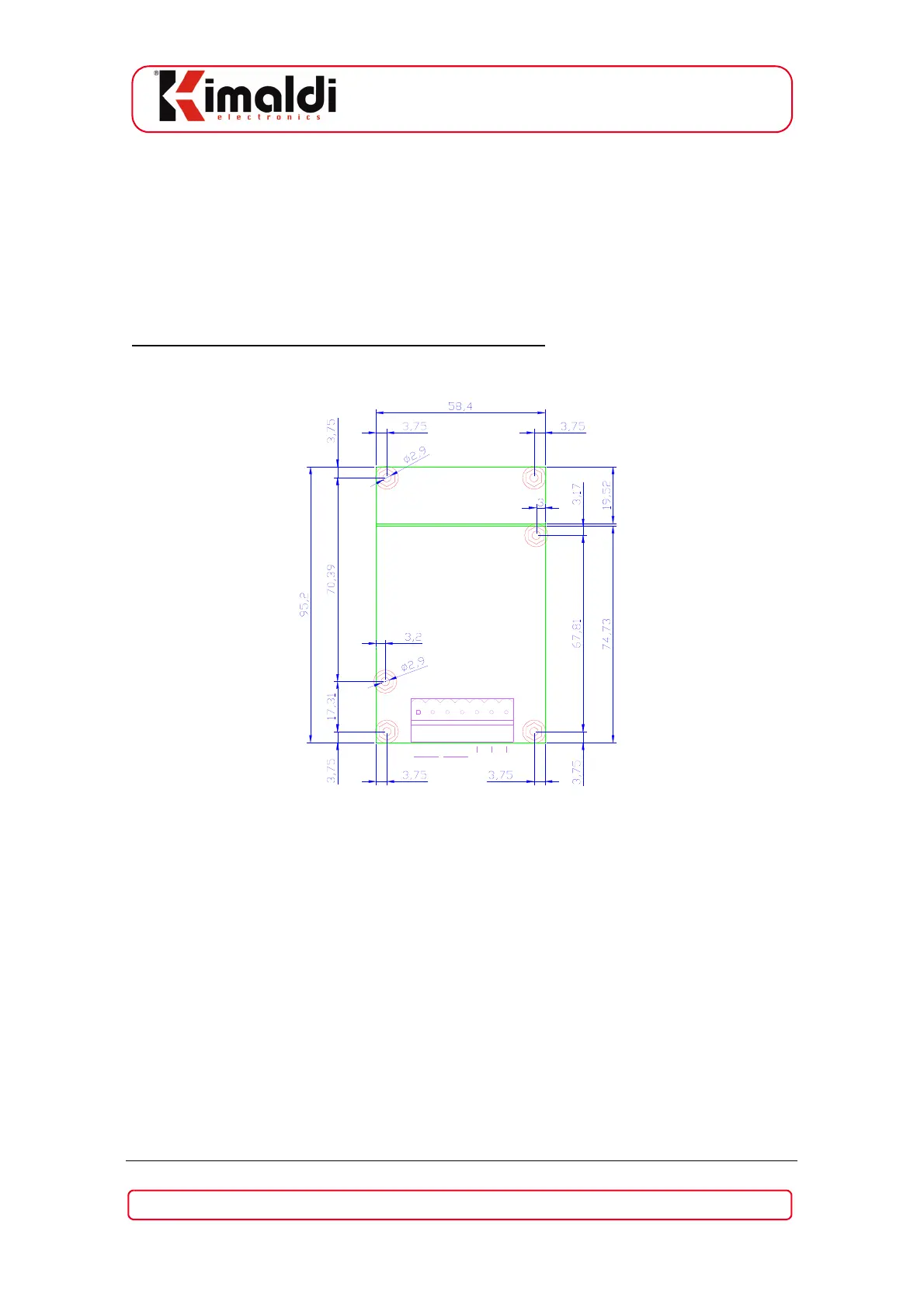

4.6. Mechanical Outline, KBio2-Online
Measurements in mm.
J1
IN0
GND
+5V TX RX
POWER IN HOST
RELE0
