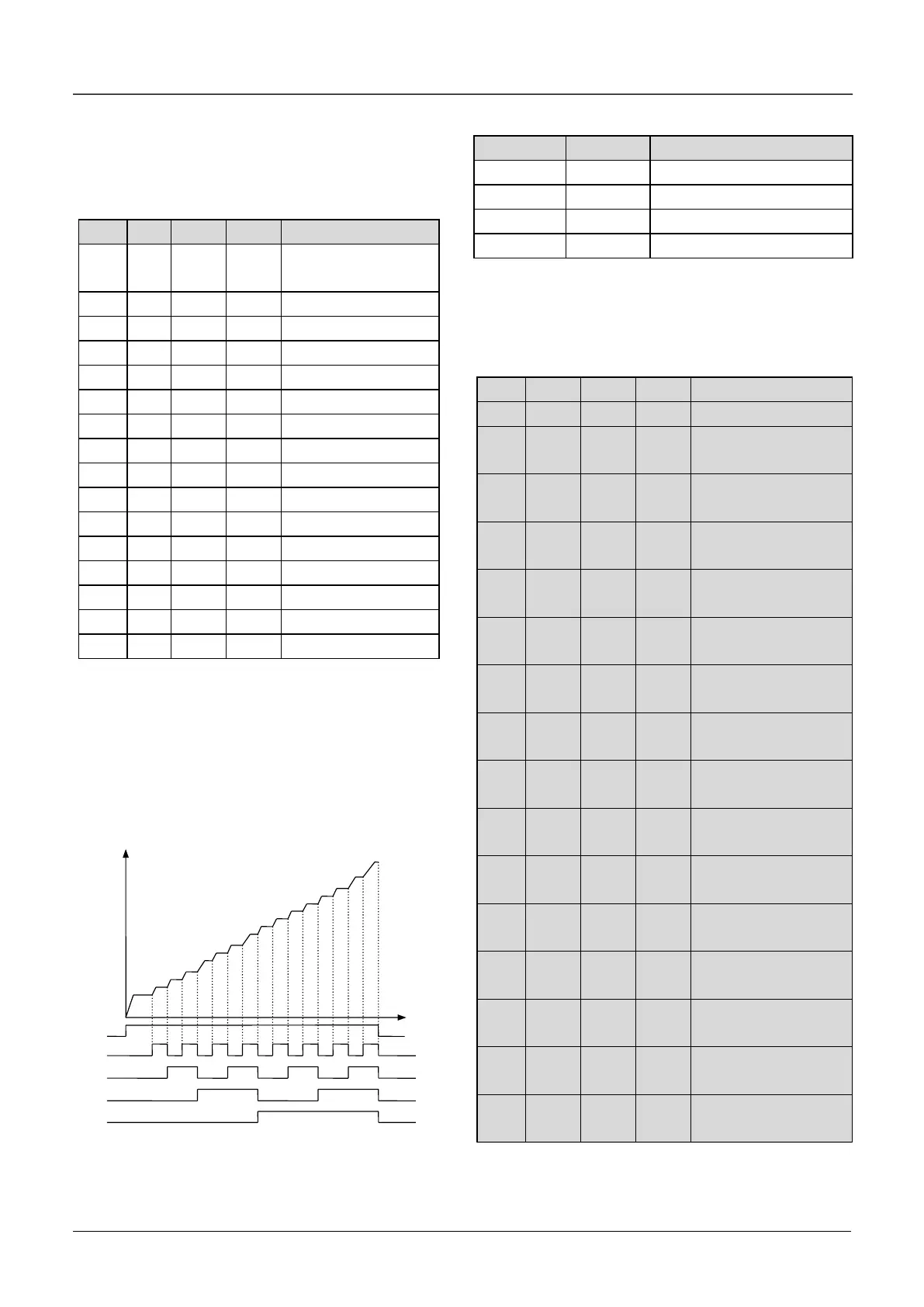

Kinco FV20 Series User Manual

44
44
ON/OFF combinations of these terminals K4,K3,K2
and K1. Refer to Group C0 to set the value of
Preset frequency.
Table 6-2 On/Off combinations of terminals
K4
K3
K2
K1
Frequency setting
OFF
OFF
OFF
OFF
Common operating
frequency
OFF
OFF
OFF
ON
Preset frequency1
OFF
OFF
ON
OFF
Preset frequency 2
OFF
OFF
ON
ON
Preset frequency 3
OFF
ON
OFF
OFF
Preset frequency 4
OFF
ON
OFF
ON
Preset frequency 5
OFF
ON
ON
OFF
Preset frequency 6
OFF
ON
ON
ON
Preset frequency 7
ON
OFF
OFF
OFF
Preset frequency 8
ON
OFF
OFF
ON
Preset frequency 9
ON
OFF
ON
OFF
Preset frequency 10
ON
OFF
ON
ON
Preset frequency 11
ON
ON
OFF
OFF
Preset frequency 12
ON
ON
OFF
ON
Preset frequency 13
ON
ON
ON
OFF
Preset frequency 14
ON
ON
ON
ON
Preset frequency 15
The frequency references will be used in multiple
speed operation. Following is an example：
Definitions of terminals X1, X2,X3 and X4 as
following：
After setting A6.00 to 27, A6.01 to 28 and A6.03 to
30, terminals X1~X4 can be used in multiple speed
operation, as shown in Fig. 6-18.
K
4
K
K
2
K
3
Speed 1
Output frequency
Time
Common
command
Fig.6-18 Multi-step speed operation
31～32： Acc/Dec time selection
Table 6-3 Acc/Dec time selection
Terminal 2
Terminal1
Acc/Dec time selection
OFF
OFF
Acc time 1/Dec time 1
OFF
ON
Acc time 2/Dec time 2
ON
OFF
Acc time 3/Dec time 3
ON
ON
Acc time 4/Dec time 4
Through the On/Off combinations of terminal 1and
2,Acc/Dec time 1~4 can be selected. 33 ～ 36 ：
Multi-voltage setting in closed loop
Table 6-4 On/Off combinations for voltage selection
K4
K3
K2
K1
Voltage setting
OFF
OFF
OFF
OFF
Determined by C1.01
OFF
OFF
OFF
ON
Preset close-loop
reference 1
OFF
OFF
ON
OFF
Preset close-loop
reference 2
OFF
OFF
ON
ON
Preset close-loop
reference 3
OFF
ON
OFF
OFF
Preset close-loop
reference 4
OFF
ON
OFF
ON
Preset close-loop
reference 5
OFF
ON
ON
OFF
Preset close-loop
reference 6
OFF
ON
ON
ON
Preset close-loop
reference 7
ON
OFF
OFF
OFF
Preset close-loop
reference 8
ON
OFF
OFF
ON
Preset close-loop
reference 9
ON
OFF
ON
OFF
Preset close-loop
reference 10
ON
OFF
ON
ON
Preset close-loop
reference 11
ON
ON
OFF
OFF
Preset close-loop
reference 12
ON
ON
OFF
ON
Preset close-loop
reference 13
ON
ON
ON
OFF
Preset close-loop
reference 14
ON
ON
ON
ON
Preset close-loop
reference 15
Speed 15
Common
Operating
frequency
