Refer to C1.19~C1.33 to set the value of Preset
close-loop reference.
37： Forward prohibit.
The drive will coast to stop if the terminal activate
when running forward. If the terminal activate before
the drive run forward, the drive will run in 0Hz.
38： Reverse prohibit.
The drive will coast to stop if the terminal activate
when running reverse. If the terminal activate before
the drive run reverse, the drive will run in 0Hz.
39： Acc/Dec prohibit
If the setting is 15, the terminal can make the motor
operate at present speed without being influenced
by external signal (except stopping command).
40： Process closed loop prohibit
Forbid process closed loop control.
41： Switch speed control and torque control
Switch speed control mode and torque control
mode.
42： Main frequency switch to digital setting
Switch the main frequency selector to digital setting.
43： PLC pause
Pause PLC function control.
44： PLC prohibit
Forbid PLC function running.
45： PLC stop memory clear
Clear the memory which store the steps before PLC
function stop.
46~47： Reserved.
A6.08 is used to set the time of filter for input
terminals.When the state of input terminals change,
it must keep the state for the filter time,or the new
state won’t be valid.

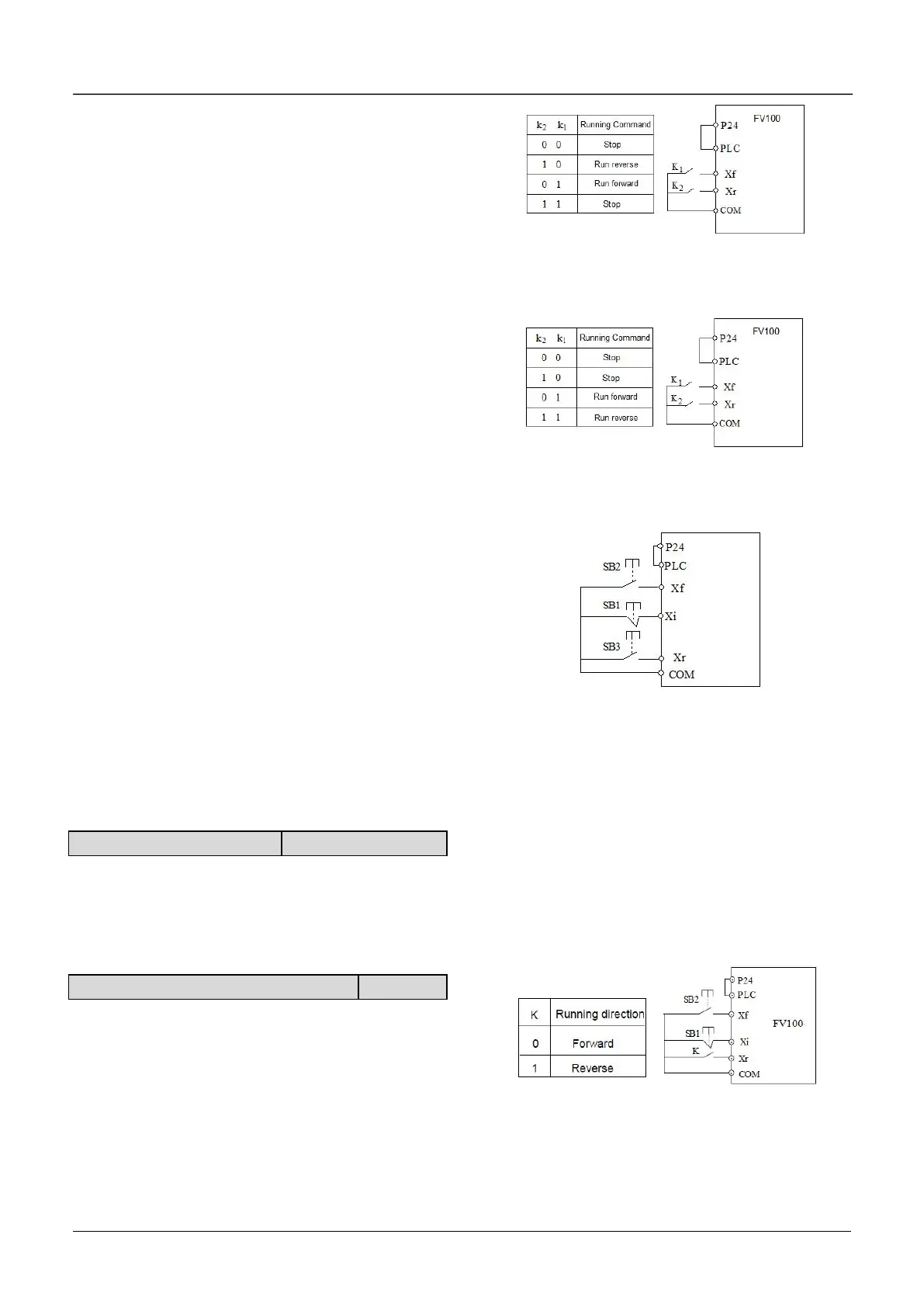

This parameter defines four operating modes
controlledby external terminals.
0： 2-wire operating mode 1
Fig.6-17 2-wire operating mode 1
1： 2-wire operating mode 2
Fig.6-18 2-wire operating mode 2
2： 3-wire operating mode 1
Fig.6-19 3-wire operating mode 1
Where：
SB1： Stop button
SB2： Run forward button
SB3： Run reverse button
Terminal Xi is the multi-function input terminal of
X1~X6.At this time, the function of this terminal
should be defined as No.5 function of “3-wire
operation”.
3： 3-wire operation mode 2
Fig.6-20 3-wire operation mode 2
Where：
SB1： Stop button
SB2： Run button
