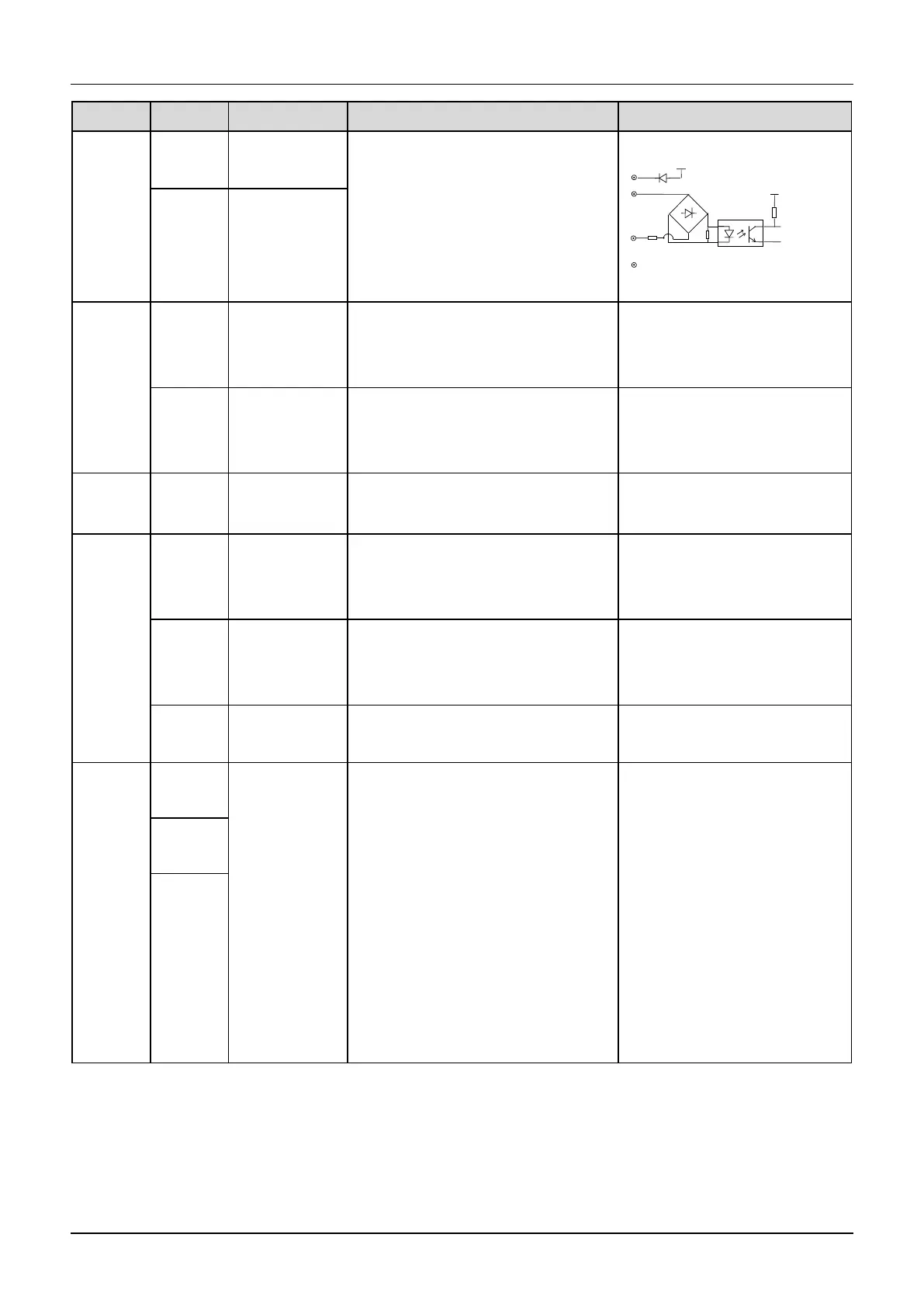

Multi-function
input terminal 4
Input voltage range:2~30v
Multi-function
input terminal 5
Multi-fun
ction
output
terminal
Bi-direction
open-collector
output
Can be defined as multi-function digital
output terminal , refer to the A6.24
desctription (Com port: CME)
Optocoupler isolation output
Maximum working voltage: 30v
Maximum output current: 50mA
Open collector
pulse terminal
Can be defined as multi-function pulse
signaloutput terminal , refer to the
A6.24 desctription(Com port: CME)
Maximum output frequency:
100kHz(Depend on the A6.26)
Maximum output current: 200mA
Multi-function
input common
port
Common port of Multi-function input
(Short cut with 24V in default)
Common port of X1~X7, PLC is
isolated from 24V internally
Common port of
24V power
supply
Three common ports in all, cooperate
with
other terminals
COM is isolated from
CME and GND inside the drive
Common port of multi-function output
terminal Y1
Can be defined as multi-function relay
output terminal(Refer to the A6.16 for
function description)
R1a-R1b：Normally closed，
R1a-R1c：normally open
Contact capacity ：
AC250V/2A（COSΦ＝1）
AC250V/1A（COSΦ＝0.4）
DC30V/1A
Input voltage of relay output
terminal 's
overvoltage class is overvoltage
class II
Wiring of analog input
1）AI1, AI2 can be connected to analog voltage or current sigle-ended input. Voltage or current mode can be seleted by
AI1and AI2. The wiring is as follows:
