wiring is as Fig.4-8 (Make sure the PLC and 24v
terminal is disconnected)

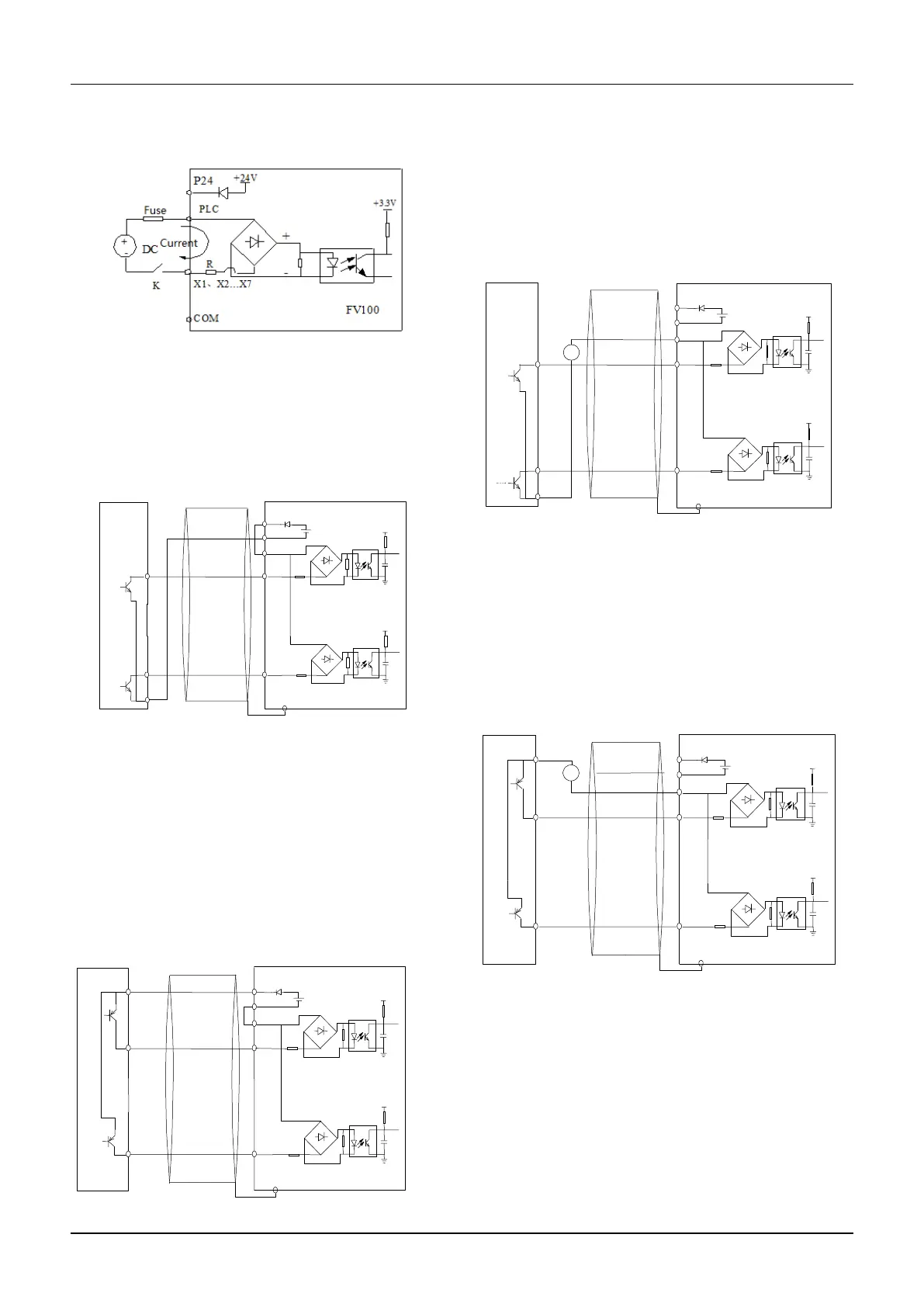

Fig.4-8 Wiring of external power supply
2. Source/drain connection method
1) Use internal +24V power supply and the external
controller uses NPN transistors whose common emitter
are connected, as shown in the fig.4-9
Fig.4-9 Source connection of using the
external power supply
2) Use internal +24V power supply and the external
controller uses PNP transistors whose common emitter
areconnected, as shown in the fig 4-10(Make sure the
PLC and 24v terminal is disconnected). The wiring is as
shown in fig.4-10
Fig 4-10 Drain connection of using the
internal power supply
3) Source connection if using the external power supply
(Make sure the PLC and 24v terminal is disconnected).
As shown in the fig.4-11
Fig 4-11 Source connection if use the
external power supply
4）Drain connection if use the external power supply
(Make sure the PLC and 24v terminal is disconnected).
As shown in the fig 4-12
Fig 4-12 Drain connection if using the
external power supply
Multi-function output terminal wiring
1. Multi-function output terminal Y1, Y2 can use the
internal 24 power supply, the wiring is as shown in
Fig.4-13
External controller
External
Shielded cable's end near the drive
should be connected to the PE
Shielded cable's end near the drive
should be connected to the PE
Shielded cable's end near the drive
should be connected to the PE
Shielded cable's end near the drive
should be connected to the PE
To Next Page
