Kioti CK2810 - Implement Lowering Limit Control; 3-Point Hitch Lowering SPEED; Joystick Lever

DESCRIPTION OF OPERATING SYSTEM
4
4
-
27

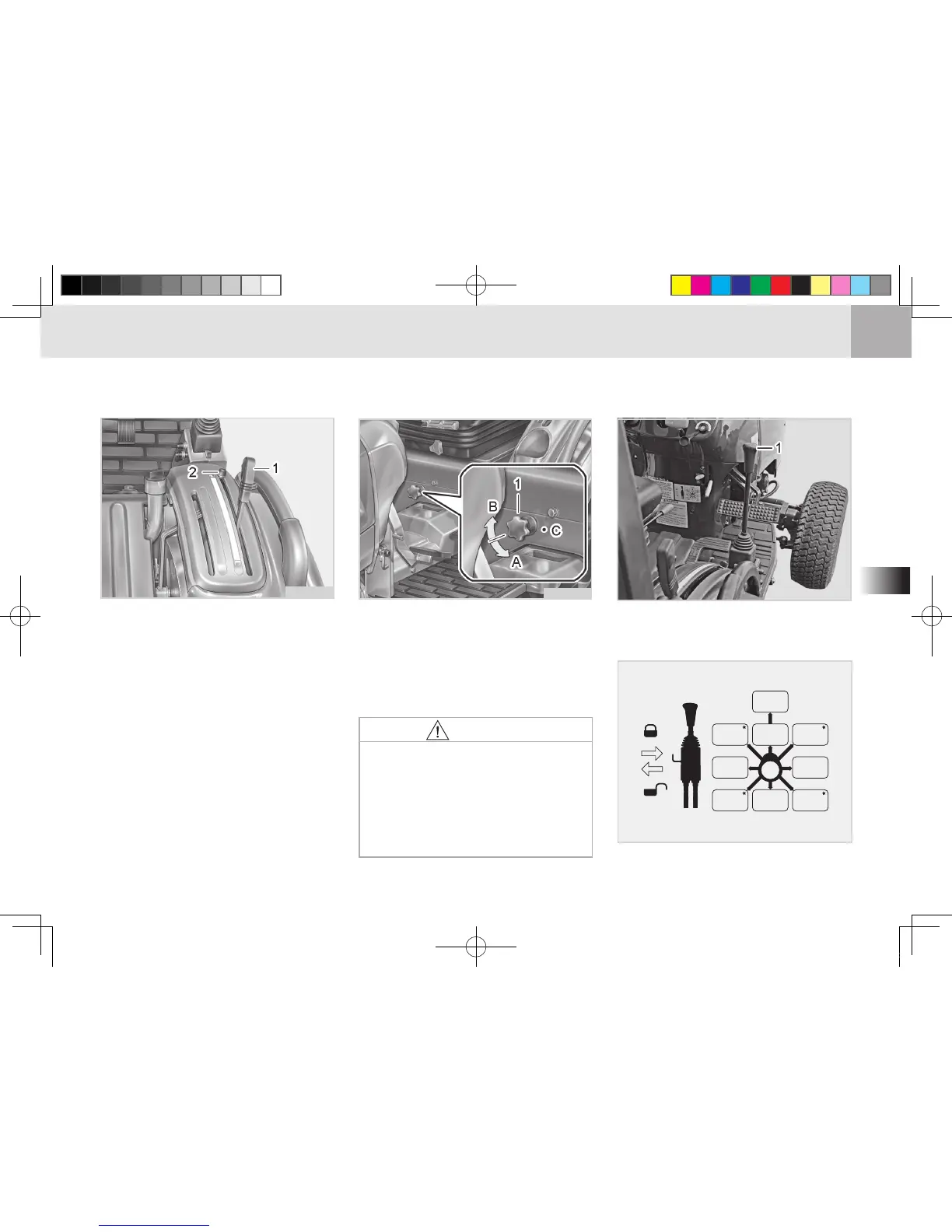

The implement lowering limit can be
changed and adjusted by shifting the
locker.
LOWER LIMIT
The lower limit can be adjusted by
moving the position of the locker.
Shifting the locker backward raises
the lower limit and shifting the locker
forward lowers the lower limit.
(1) Hydraulic Control Lever
(2) Lock Bolt
IMPLEMENT LOWERING LIMIT
CONTROL
196O702C
3-POINT HITCH LOWERING SPEED
196O703C
(1) 3-Point Lowering Speed Knob
(A) FAST (B) SLOW
(C) LOCK
The lowering speed of the 3-point
hitch can be controlled by adjusting
the 3-point lowering speed knob.
To avoid personal injury:
F a s t l o w e r i n g s p e e d m a y
cause damage or injury. Low-
er in g s p ee d o f i mp le me nt
should be adjusted to two or
more seconds.
•
CAUTION
JOYSTICK LEVER
(1) Joystick Lever
M56O433A
FLOAT
N
DOWN
DOWN &
ROLL BACK
ROLL
BACK
UP
DUMP
DUMP &
DOWN
UP &
ROLL BACK
UP &
DOWN
RELEASE
LOCK
M56O605A
