REAR WHEEL
Rear wheel tread width can be ad-
justed as shown with the standard
equipment tires.
For the rear wheels, switch them to
adjust their treads.

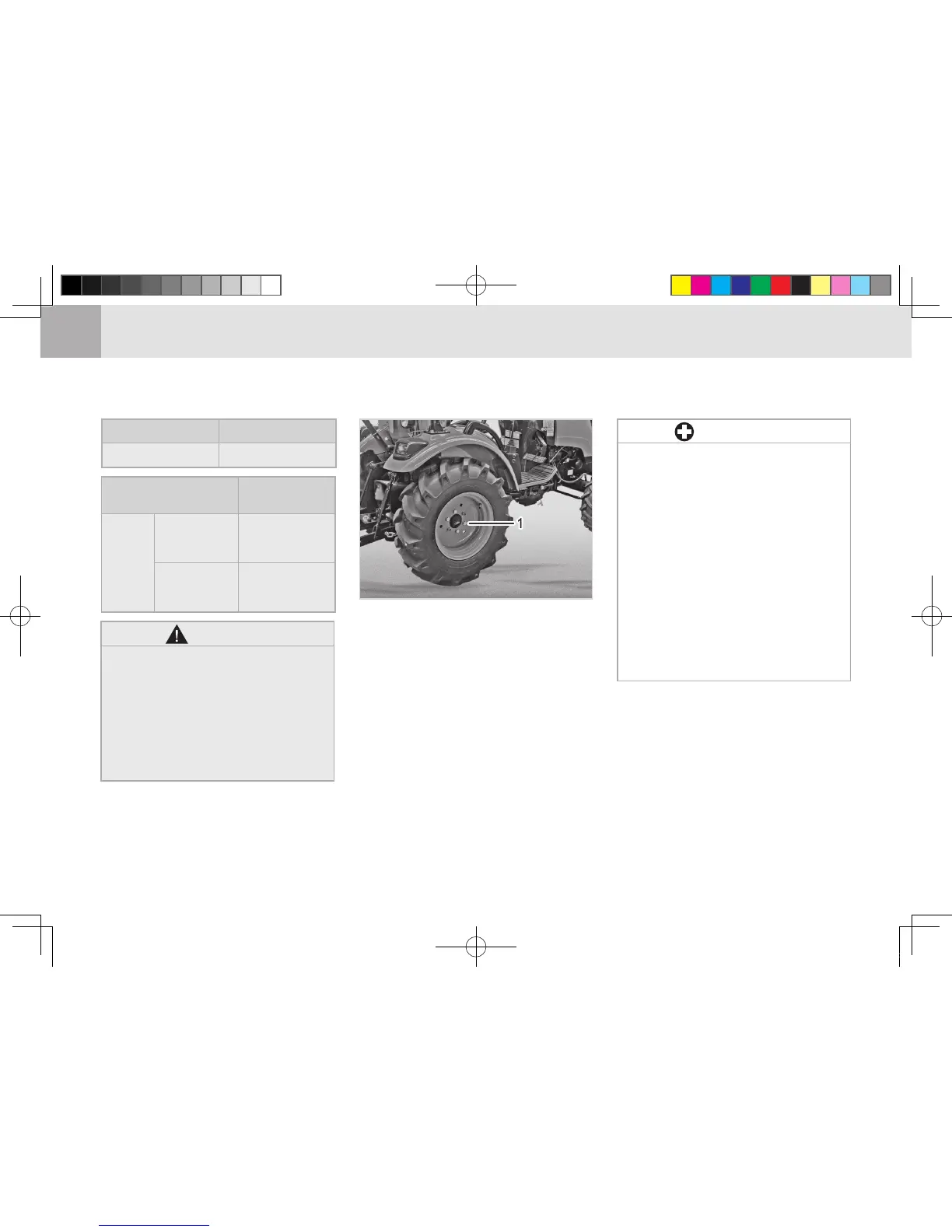

M56O430A
(1) Tightening torque : 22 kgf
.
m
Use tires approved by KIOTI only.
Assemble the tire as shown in
the gure.
Contact your local KIOTI Dealer
if it is necessary to change the
tire specification or installation
method.
•
•
•
WARNING
Always attach tires as shown
in the drawings.
If not attached as illustrated,
transmission parts may be
damaged.
When re-fitting or adjusting
a wheel, tighten the bolts to
the following torques then re-
check after driving the tractor
200m (200 yards) and there-
after according to service in-
terval. (See "MAINTENANCE"
section)
•
•
•
IMPORTANT
Tire
Distance
7-12 989 mm (38.9 in.)
Item
Tightening
Torque
Front
Wheel Bolt
83.4 N·m
61.5 lbf-ft
8.5 kgf.m
Wheel Nut
68.4 N·m
50.6 lbf-ft
7.0 kgf.m
