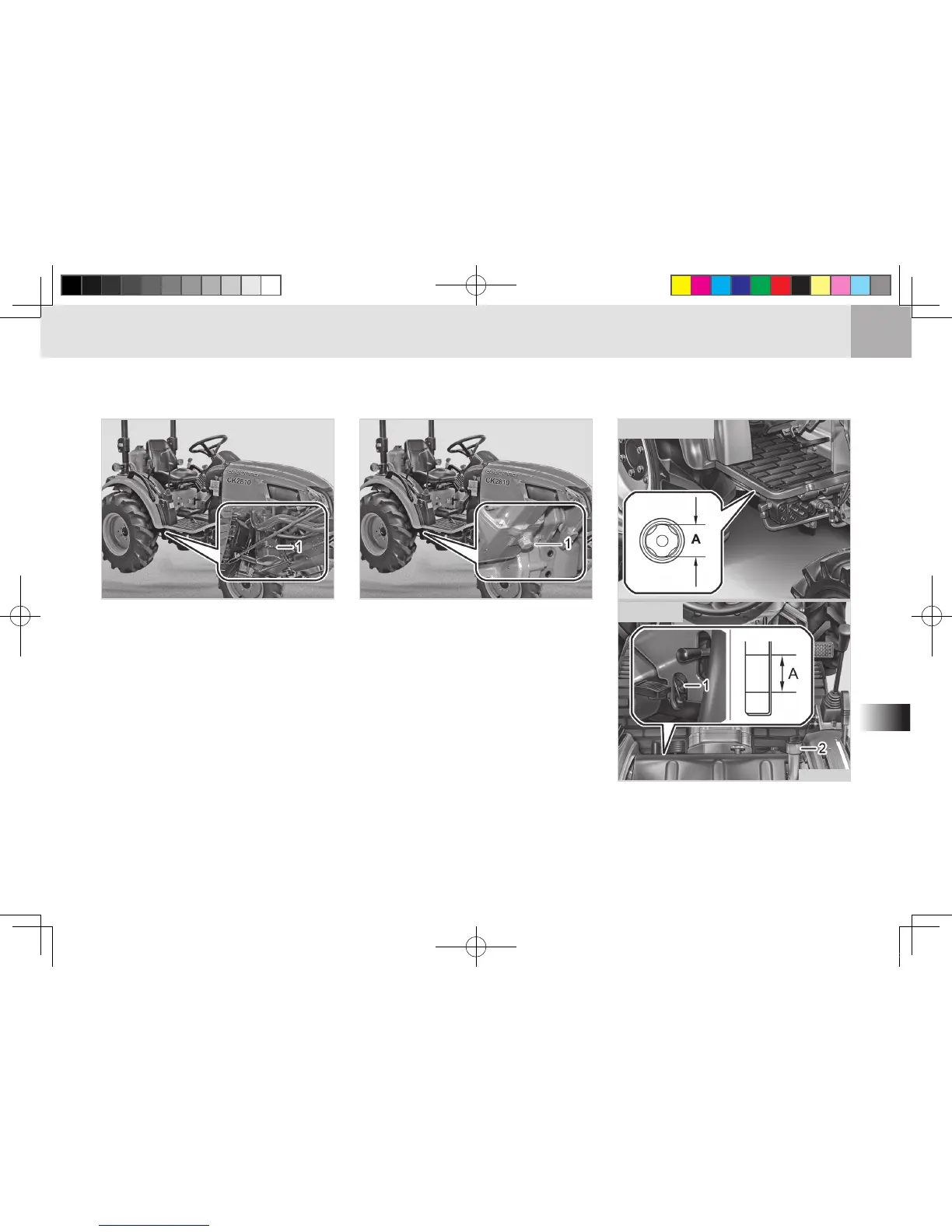

M56O747A M56O748A
(1) Oil Filter Cartridge
The transmission fluid should be
changed if it is contaminated or after
the transmission is serviced or every
400 hours of operation. When chang-
ing the transmission uid, make sure to
change the uid lter. However, replace
the lter only at initial 50 hours and ev-
ery 200 hours of operation afterward.
1. Park the tractor on level ground
and start the engine to warm it up.
2. Stop the engine, apply the parking
brake and wait until the oil cools
down.
(1) Drain Plug
3. To drain the used fluid, place the
oil container under the transmis-
sion case and remove the drain
plug to drain used uid. If the uid
does not flow out freely, unscrew
the air bleeding plug on the side
of the hydraulic cylinder on the left
of the top link bracket to facilitate
drainage. Reinstall the drain plugs
securely afterward.
4. Unscrew the fluid filter from the
rear right section on the tractor us-
ing a lter wrench.
(1) Gauge (2) Oil Filler Plug
(A) Oil level is acceptable within range
M56O744A
To Next Page
