3-POINT HITCH
MAKE PREPARATIONS FOR
ATTACHING IMPLEMENT
SELECTING THE TOP LINK
MOUNTING HOLES
When installing the implerment, se-
lect the proper hole not interfered
with other objects around the imple-
ment.
ATTACHING AND DETACHING
IMPLEMENTS

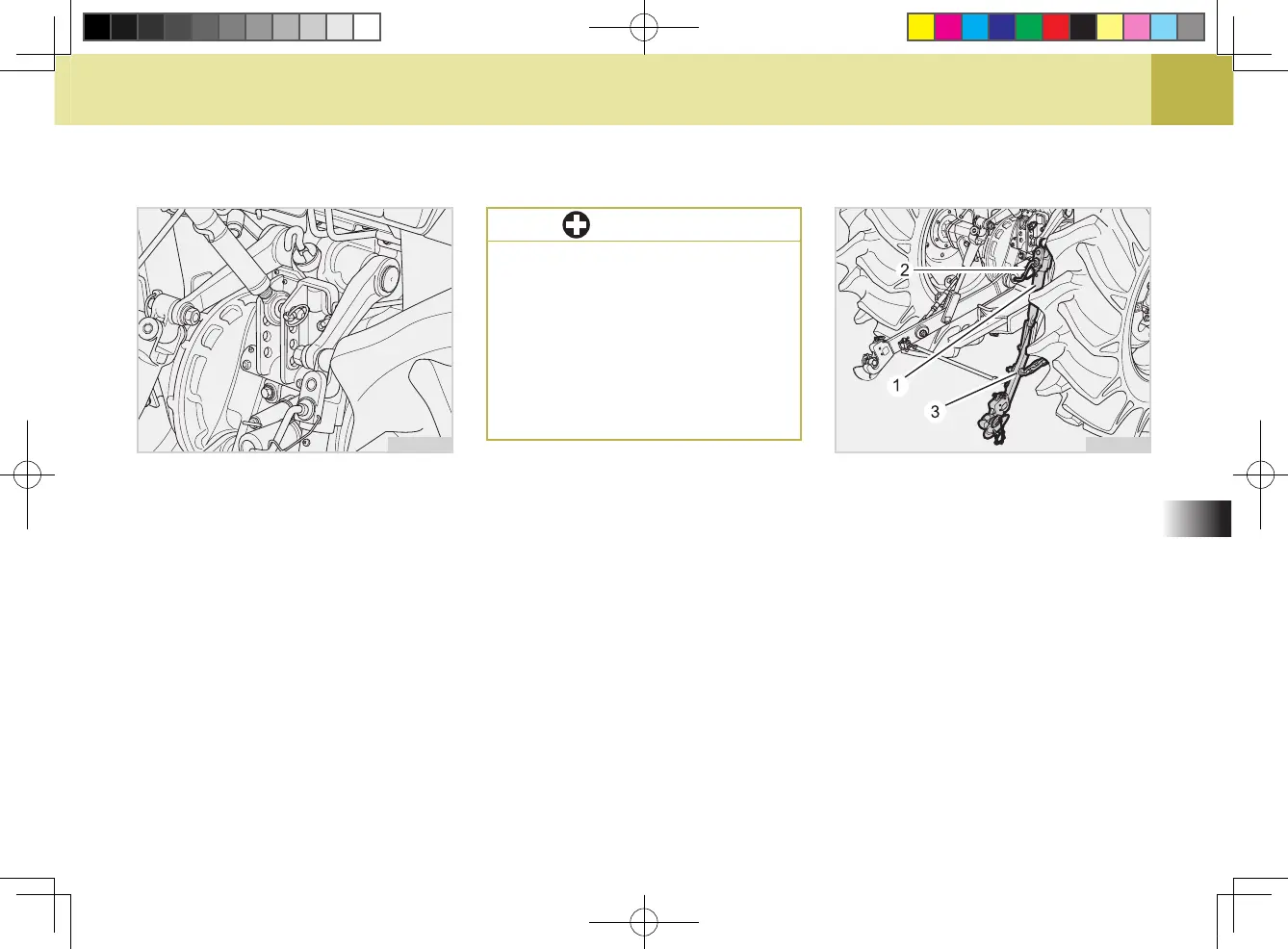

(1) Lifting Rod (Right) (2) Handle
(3) Lower Link
DRAFT HITCH
It must only be used for an attach-
ment which the tractor is designed to
employ.
ADJUSTMENT OF LIFTING ROD
1) Adjust the position of the imple-
ment evenly by moving the lifting
rod.
2) After the adjustment is completed
secure with the stopper.
3) Correct positioning of the lifting
rod to the lower link is shown be-
low positioning varices accord-
ing to the type of implement being
uses.
621O602A 621O603A
IMPORTANT
Use the draft hitch when draft-
ing. Do not hitch to the top
linkage bracket or the safety
frame.
Failure to follow this instruc-
tion may cause an overturn,
which may result in damage,
injury or an accident.
