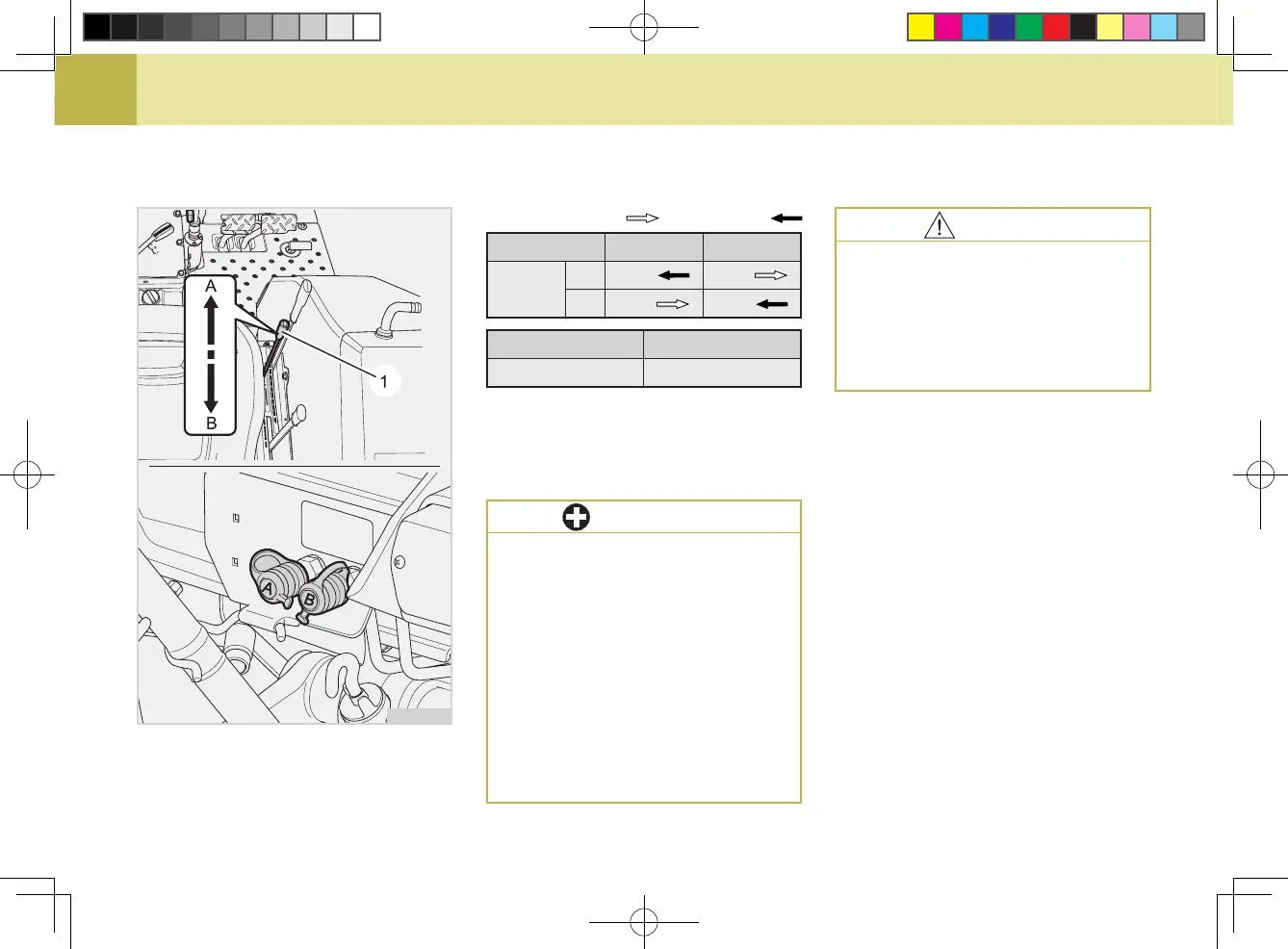

(1) Double Acting Lever
(A) A PORT
(B) B PORT
DOUBLE ACTING LEVER
(IF EQUIPPED)
621O708A
Pressure Returning
Move the lever up or down and hold.
This will raise or lower the imple-
ment. Lever will return to neutral
when released.
CONNECTING
1. Clean both couplers.
2. Remove dust plugs.
3. Insert the implement coupler to
the tractor hydraulic coupler.
4. Pull the implement coupler slight-
ly to make sure couplers are rmly
connected.
COUPLER CONNECTING AND
DISCONNECTING
CAUTION
To avoid personal injury:
Stop the engine and relieve
pressure before connecting or
disconnecting lines.
Do not use your hand to check
for leaks.
IMPORTANT
Do not hold the lever in the
“ p ul l ” o r “ p us h” p os i ti on
once the remote cylinder has
reached the end of the stroke,
as this will cause oil to flow
through the relief valve.
To enlarge the front loader out-
put, when using the hydrau-
lic system of the tractor, do not
operate the boom and the buck-
et cylinder simultaneously.
Port Push Pull
Lever1
A In Out
B Out In
Coupler Size
Port A, B PT 1/2"
