1. To drain the used oil, remove the
right and left drain plugs and lling
plug at the front axle case and drain
the oil completely into the oil pan.
2. After draining, reinstall the drain
plugs.
3. Remove the oil level check plug.
4. Fill with the new oil up to the check
plug port.(See "LUBRCANTS" in
Maintenance Section)
5. After filling, reinstall the filling plug
and check plug.

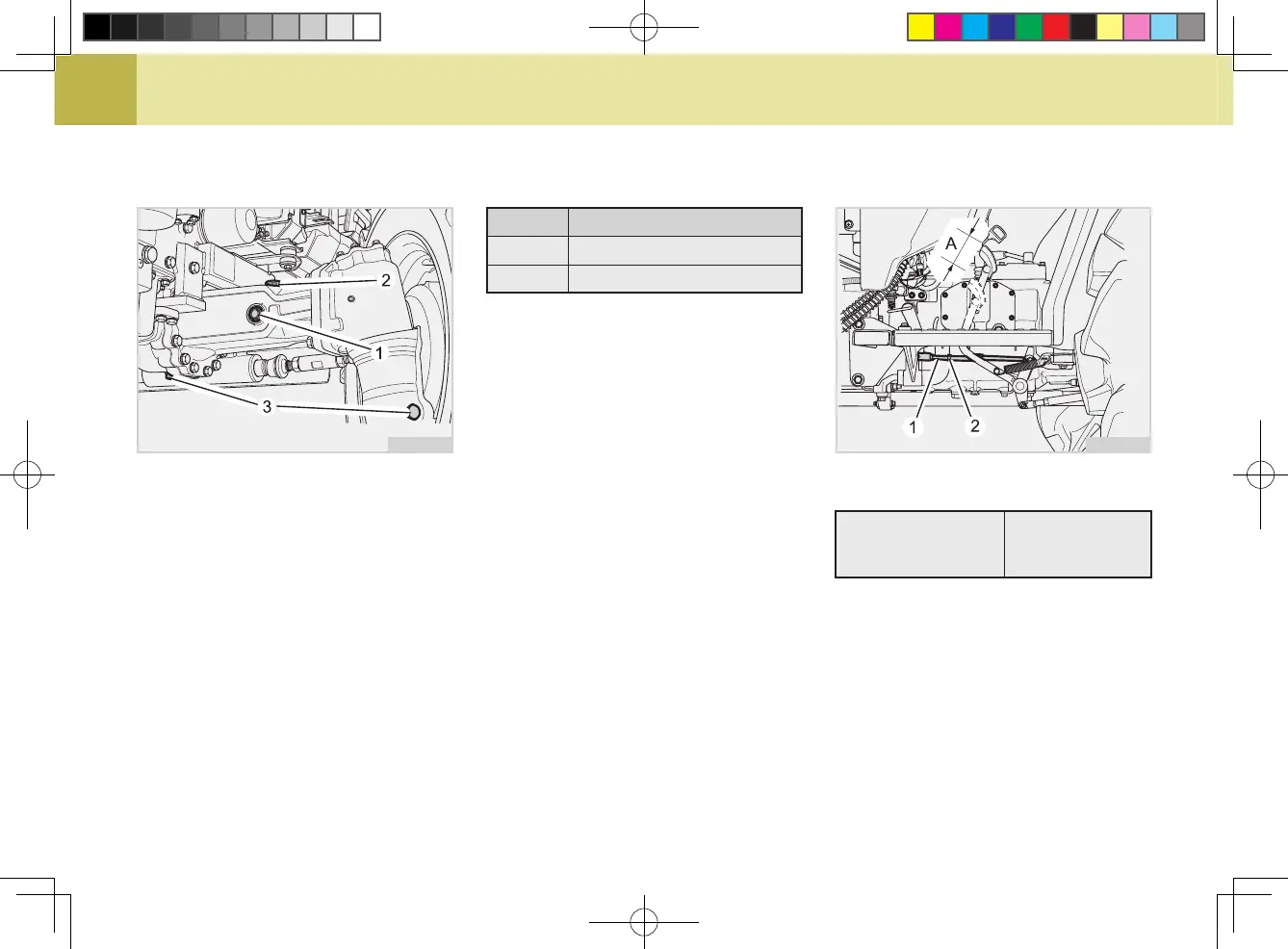

CHANGING FRONT AXLE
CASE OIL
(1) Check Plug (2) Filling Plug
(3) Drain Plug
621Oa15a
ADJUSTING CLUTCH PEDAL
1. Stop the engine and remove the
key.
2. Slightly depress the clutch pedal
and measure free travel at top of
pedal stroke.
3. If adjustment is needed, loosen
the lock nut, remove the clevis pin
and adjust the rod length within
acceptable limits.
4. Retighten the lock nut and replace
the clevis pin.
(1) Clutch Rod (2) Nut
(A) Free Travel
621Oa16a
Proper clutch pedal
free travel (A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
on the pedal
L3503 8 L (2.11 U.S.gal.)
LK45 6 L (1.59 U.S.gal.)
