1. Park the machine on a flat sur-
face.
2. Check engine oil before starting
the engine or 5 minutes or more
after the engine has stopped.
3. To check the oil level, draw out
the dipstick, wipe it clean, replace
it, and draw it out again. Check to
see that the oil level lies between
the two notches. If the level is too
low, add new oil to the prescribed
level at the oil inlet.
(See "LUBRICANTS" in Mainte-
nance Section)

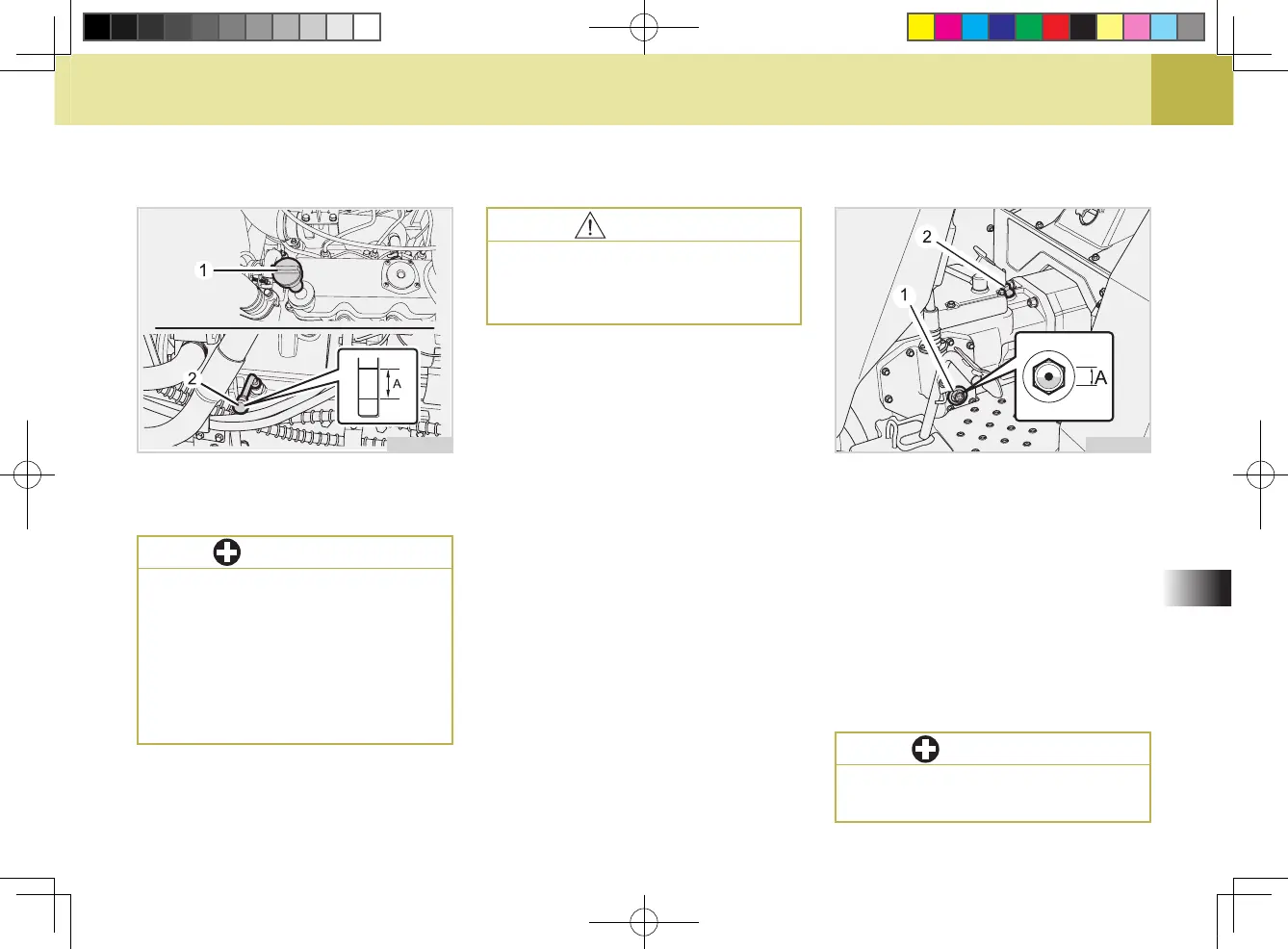

CHECKING ENGINE OIL LEVEL
(1) Oil Inlet (2) Dipstick
(A) Oil Level is Acceptable Within This Range.
621Oa02a
IMPORTANT
CAUTION
-
CHECKING TRANSMISSION
FLUID LEVEL
(1) Level Gauge (2) Oil Filling Plug
(A) Oil Level is Acceptable Within This Range.
1. Park the machine on a flat sur-
face, lower the implement and
shut off engine.
2. Check the fluid level on the flu-
id level dipstick. If the level is too
low, add new oil to the prescribed
level at the oil inlet. (See "LUBRI-
CANTS" in Maintenance Section)
621Oa03a
IMPORTANT
-
