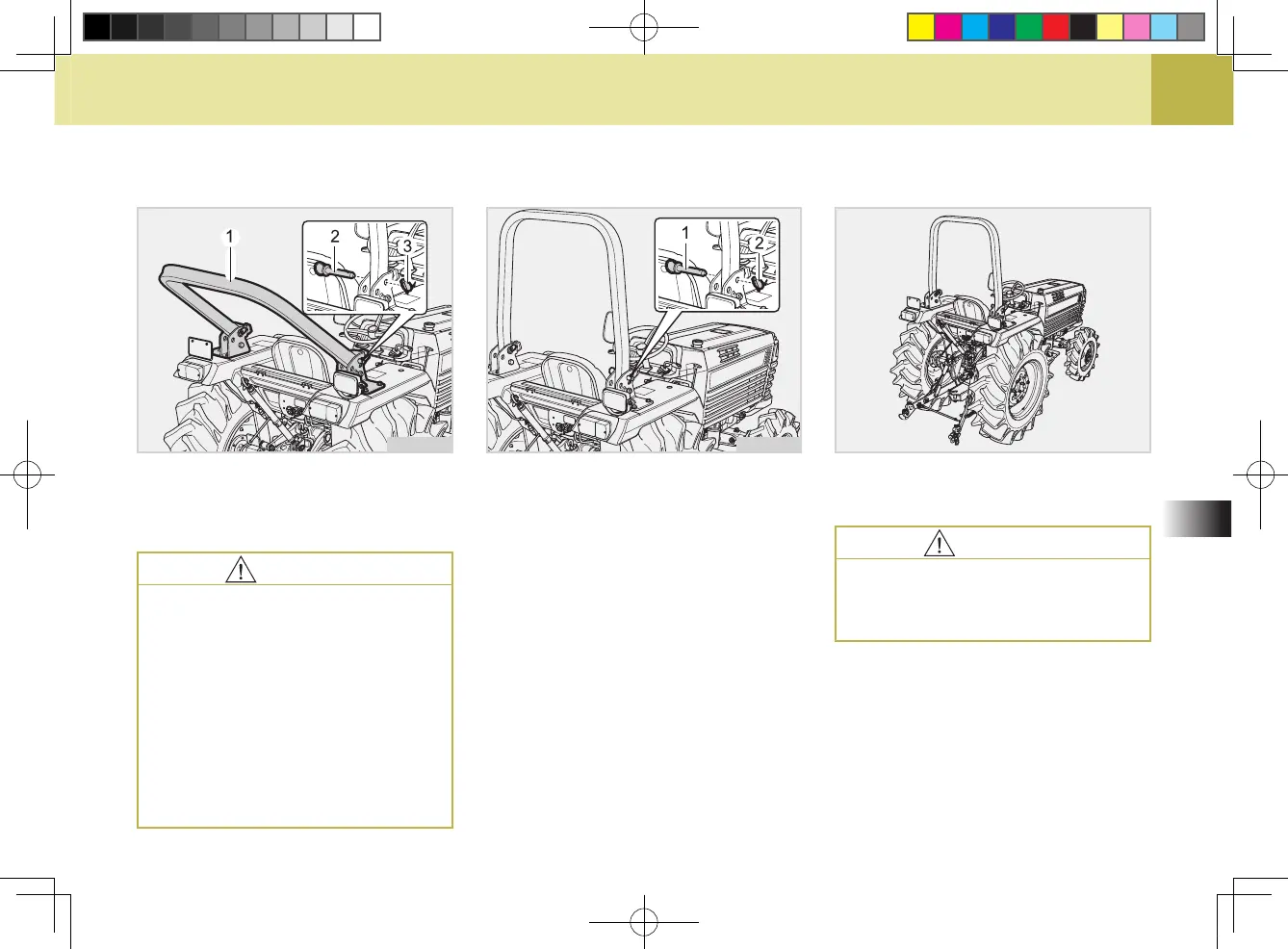

(1) ROPS (2) Set Pin
(3) Snap Pin
1. Remove the clip pin and set pin.
(1) Set Pin (2) Snap Pin
The standard fold-down roll bar makes
it quick and easy to maneuver in low-
clearance areas when equipped with
the fold able ROPS is replaced with a
sturdy 4-post ROPS with a steel plate
roof for added safety.
OPERATING THE TRACTOR
OPERATING ROPS
TO FOLD THE ROPS
621O511A 621O512A
FOLD ABLE ROPS
621O513A
CAUTION
To avoid personal injury:
Make sure the pin are properly
installed and secured.
CAUTION
You should always stop the en-
gine, remove the key and set
the parking brake before rais-
ing or folding the rops.
Always perform such tasks
from a safe and stable position
at the rear of the tractor.
Folding the ROPS should only
be done when absolutely nec-
essary, and should be returned
to the up-right position as soon
as possible.
