Front tread can not be adjusted.

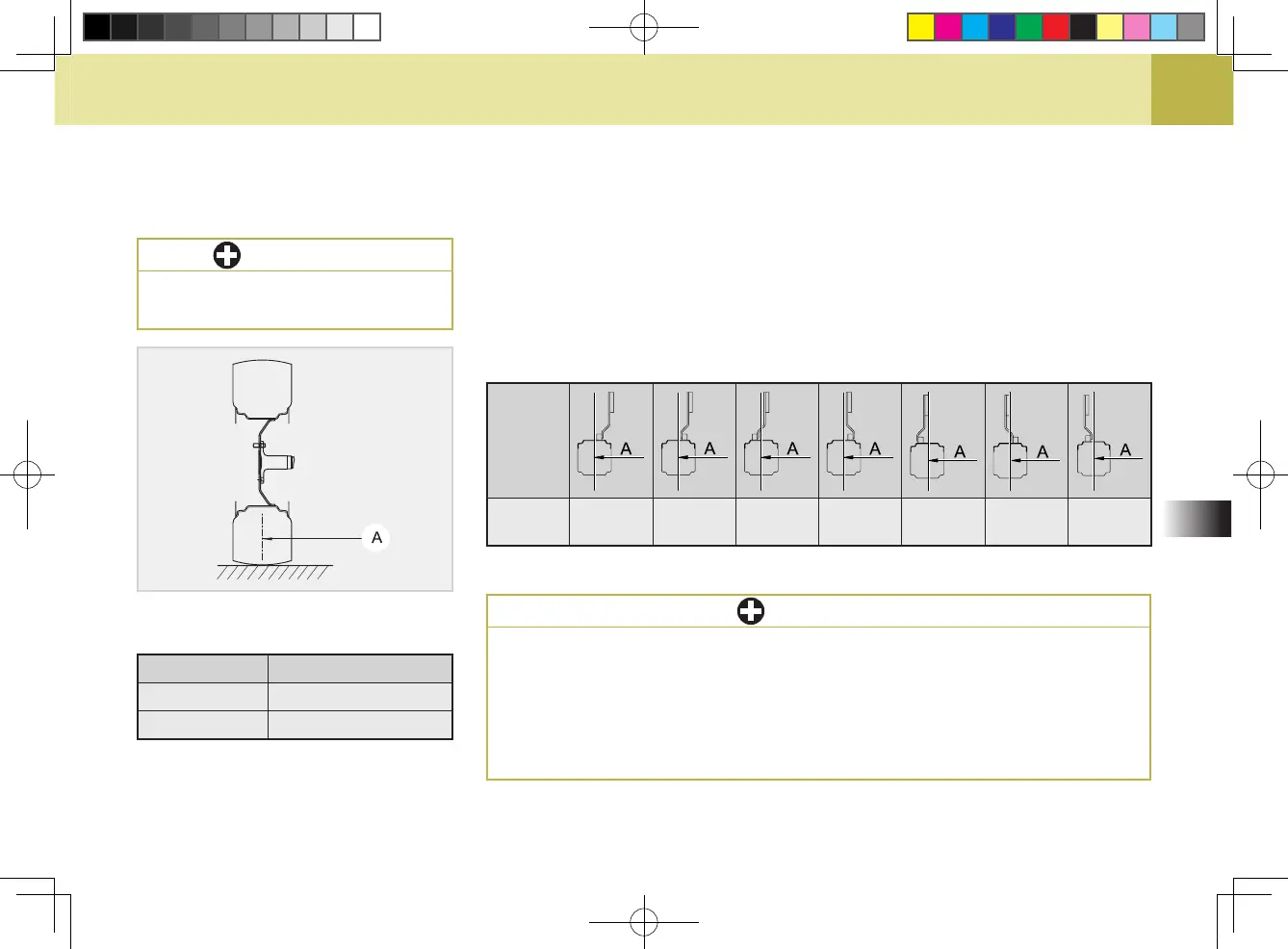

TREAD
FRONT WHEELS REAR WHEELS
(A) Tread
621O801A
Rear wheel tread width can be adjusted as shown with the standard equip-
ment tires.
To change the tread width.
1. Remove the wheel rim and the disk mounting bolts.
2. Change the position of the rim and disk to the desired position, and then
tighten the bolts.
(A) Tread
IMPORTANT
Do not turn front discs to ob-
tain wider tread.
* IND… for Industrial
Tire Tread
8-16 1,130 mm (44.5 in.)
9.5-16 1,165 mm (45.9 in.)
IMPORTANT
Always attach tires as shown in the drawings.
If not attached as illustrated, transmission parts may be damaged.
When re-tting or adjusting a wheel, tighten the bolts to the following
torques then recheck after driving the tractor 200 m (218 yards) and
thereafter according to service interval.
Torques : 197~210 N·m (20~21 kgf·m, 145~155 lbf·ft)
Model
All
1,426 mm
(56.1 in.)
1,328 mm
(52.2 in.)
1,252 mm
(49.2 in.)
1,226 mm
(48.2 in.)
1,154 mm
(45.4 in.)
1,128 mm
(44.4 in.)
1,052 mm
(41.4 in.)
