Connect the controller to sensors with standard Ethernet cables up to 75 feet long. See the
installation guide supplied with the sensors for sensor installation instructions.

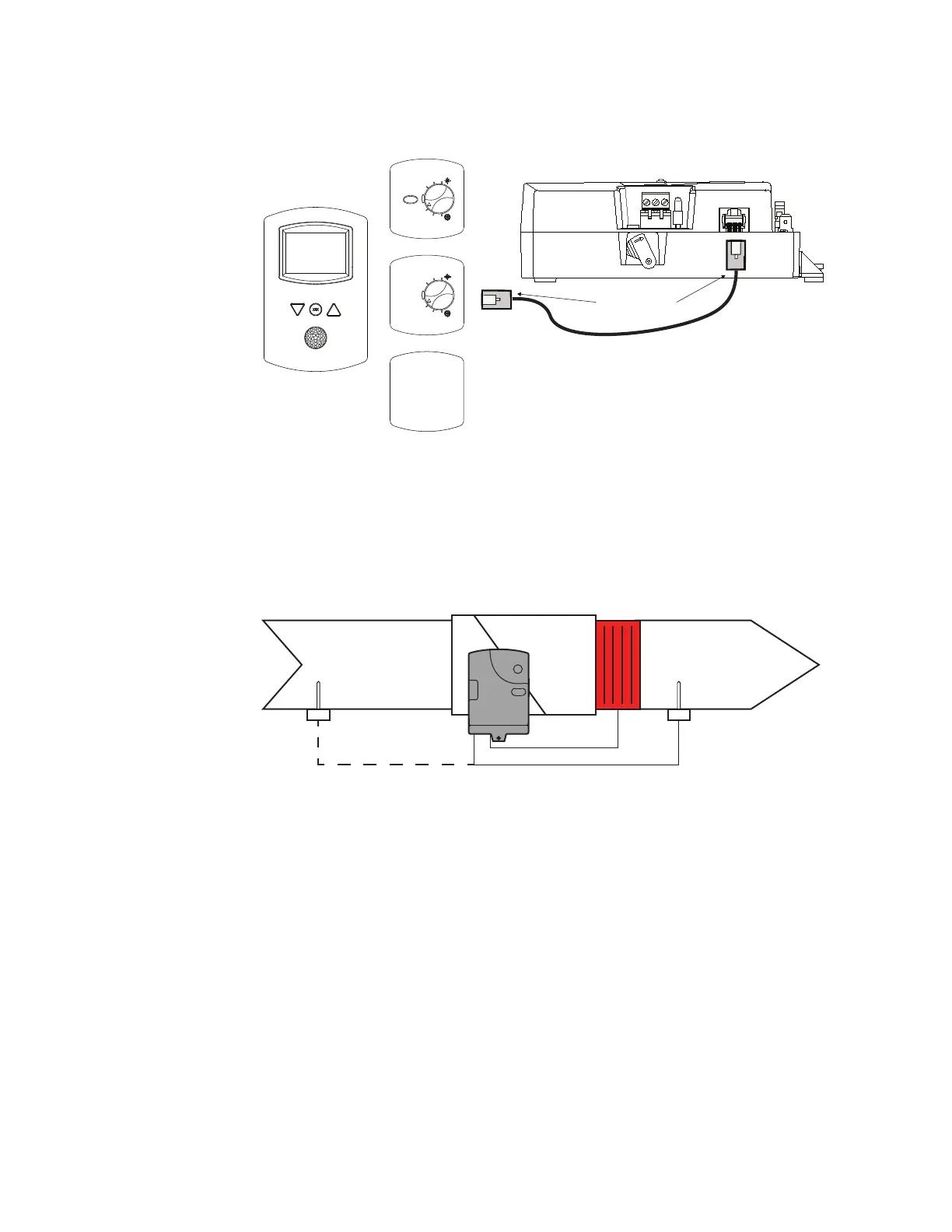

Illustration 2–4 Connecting to a sensor
Ethernet cable
Maximum 75 feet
Connecting a DAT sensor
The Discharge Air Temperature sensor is required for automatic changeover and for VAV
terminal units with reheat.
Illustration 2–5 Discharge air temperature sensor location
DAT sensor
Prefered location
DAT sensor
Changeover only
Section 2: Installing the controllers KMC Controls, Inc.
16 Revision H
