Cooling or heating without reheat
The BAC-8001 is configured for single-duct cooling VAV control without reheat. Connect the
controller as shown in the illustration Cooling or heating application drawing on page 42.
A BAC-8005 or BAC-8205 may also be used for this application.
For cooling and heating, a duct temperature sensor is required for Discharge Air Temperature
limiting and automatic changeover. See the topic Advanced options on page 33 for
instructions to enable Discharge Air Temperature limiting.
Submittal sheets for several variations of this application are available from the BAC-8000
series page at KMCControls.com.

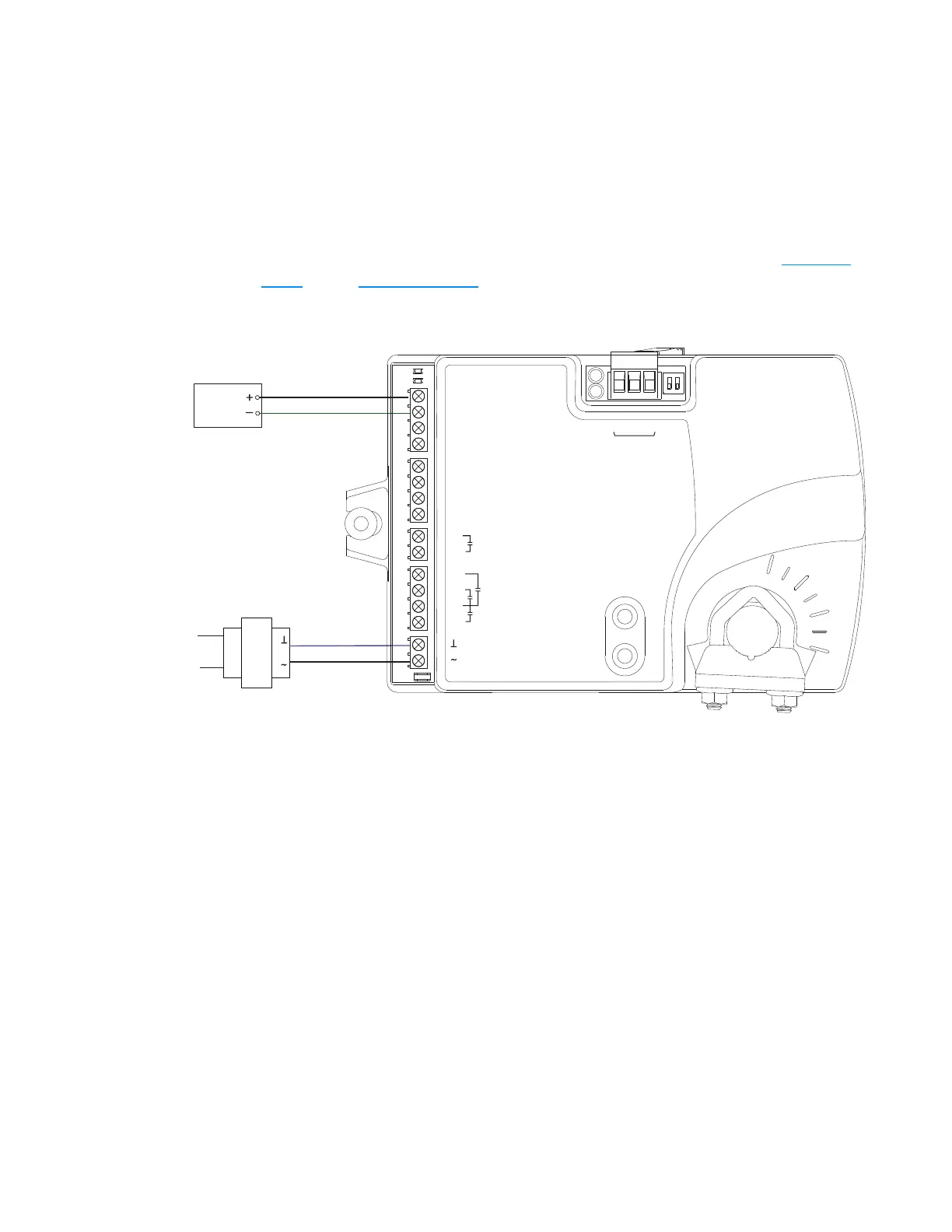

Illustration 6–1 Cooling or heating application drawing
24 VAC
Duct
Temp
Sensor
ON CTS
1 2
COMM
READY
AI1
AI5
GND
AO4
AO3
SC
BO8
BO5
BO6
SC
BO7
24VAC
AI6
GND
AI7
T-STAT/ SENSOR
-A
+B
S
EOL
BACnet MS/TP
Section 6: Application drawings KMC Controls, Inc.
42 Revision H
