Staged reheat
The staged reheat application is for BAC-8005 or BAC-8205 controllers. The controllers are
configured to switch reheat units that are controlled with 24 volts AC. Reheat units with up to
three stages of reheat can be controlled by these controllers.
l For one-stage, electric reheat or hot water reheat with an on/off valve, use only output
terminal BO6.
l For two-stage reheat use output terminals BO6 and BO7.
l For three-stage reheat use output terminals BO6, BO7, and BO8.
For cooling and heating, a duct temperature sensor is required for Discharge Air Temperature
limiting and automatic changeover. See the topic Advanced options on page 33 for
instructions to enable Discharge Air Temperature limiting.
When connecting the controller to a fan powered VAV unit, the fan circuits must be
compatible with the following specifications.
l The fan start circuit is a 24 volt AC pilot duty output.
l The fan speed output is 0-10 volts DC.
Submittal sheets for several variations of this application are available from the BAC-8000
series page at KMCControls.com.

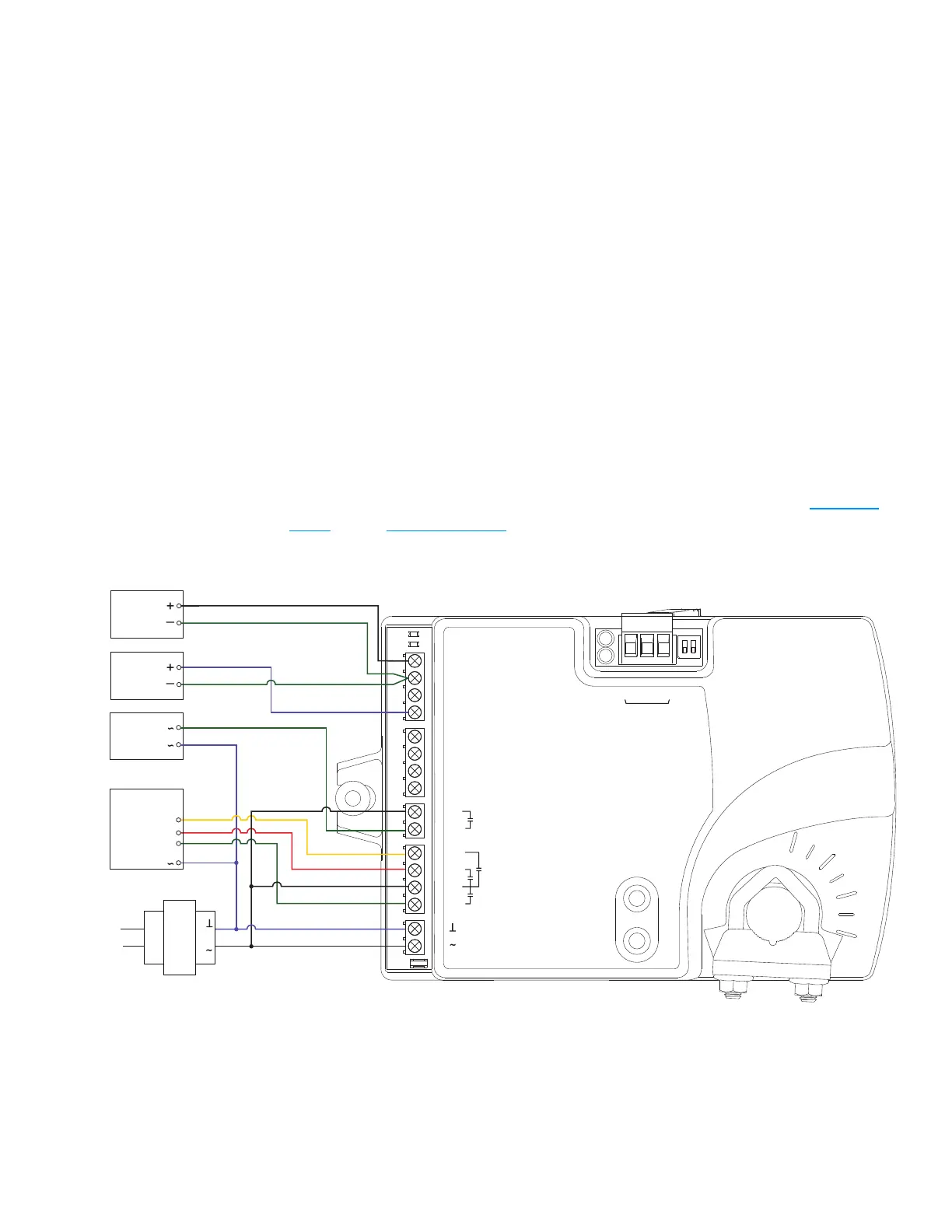

Illustration 6–2 BAC-8005 and BAC-8205 with three-stage reheat
ON CTS
1 2
COMM
READY
AI1
AI5
GND
AO4
AO3
SC
BO8
BO5
BO6
SC
BO7
24VAC
AI6
GND
AI7
T-STAT/
SENSOR
-A
+B
S
EOL
BACnet MS/TP
Fan
Speed
Duct
Temp
Sensor
Stage 1
Stage 2
Stage 3
24VAC
Fan start
Reheat
24 VAC
SimplyVAV Section 6: Application drawings
Revision H 43
