Section 11

Parts List

20425652

5-2005/Rev 0

11-10

Table 11-3

Hydraulic Cartridge Seal

05130091

Item

Part

Number

Description

Quantity

1 05130109 Seal Bushing, 1.36 x 0.89 1

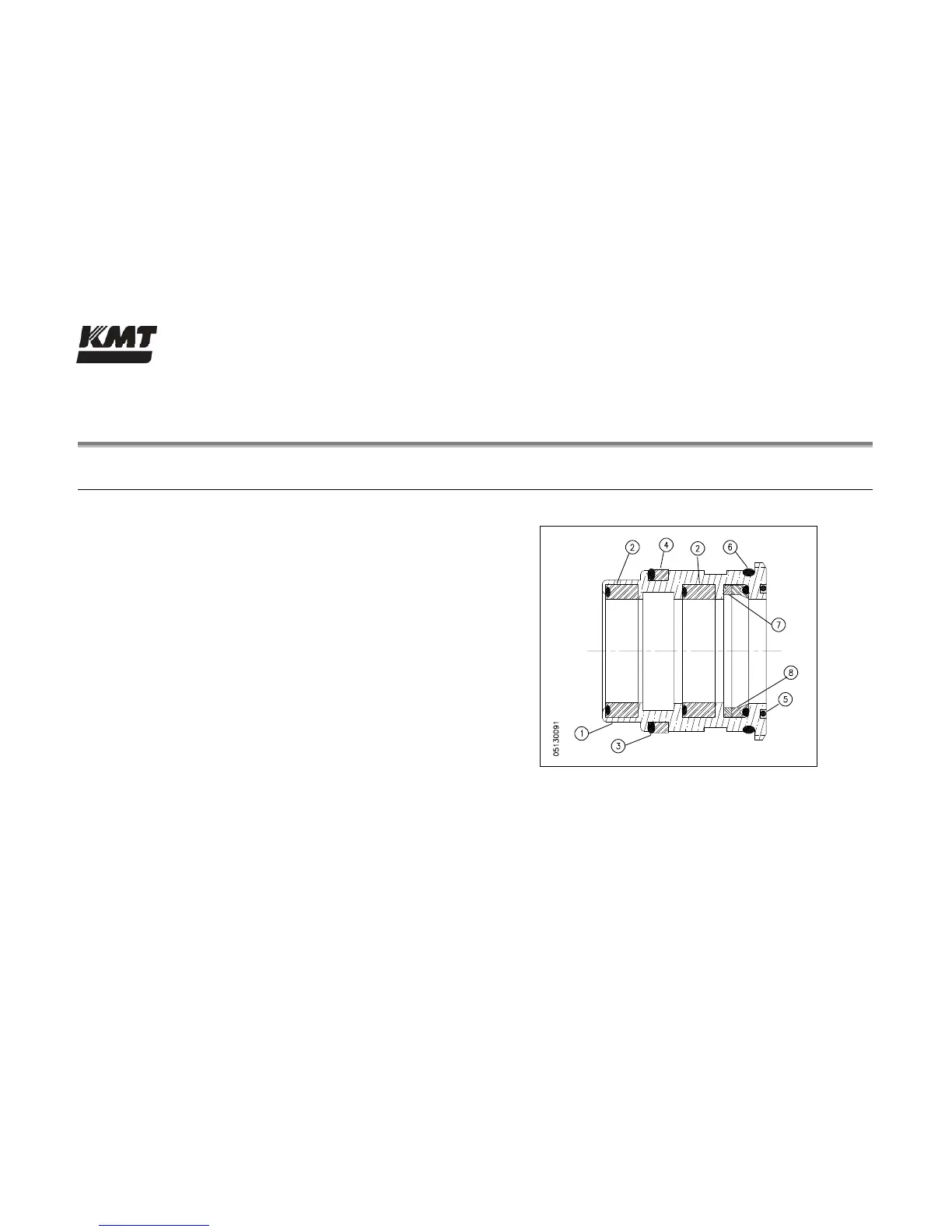

Figure 11-3: Hydraulic Cartridge Seal

2 05015060 Packing Ring W/O-Ring, 1.125 x 0.875 2

3 10193522 O-Ring, 1-3/16 x 1-3/8 x 3/32 1

4 05050760 Backup Ring, 1.188 x 1.375 1

5 05129481 O-Ring, 1 x 1-1/8 x 1/16 1

6 05013024 O-Ring, 1-1/4 x 1-3/8 x 1/16 1

7 05129515 Backup Ring, 1.127 x 0.891 1

8 05027255 Packing Seal, U-Cup W/O-Ring 1

80084759 Rebuild Kit

Includes Items 2-8
