Table 11-4

Sealing Head Assembly

80072349

Item

Part

Number

Description

Quantity

1 49834039 Sealing Head Body 1

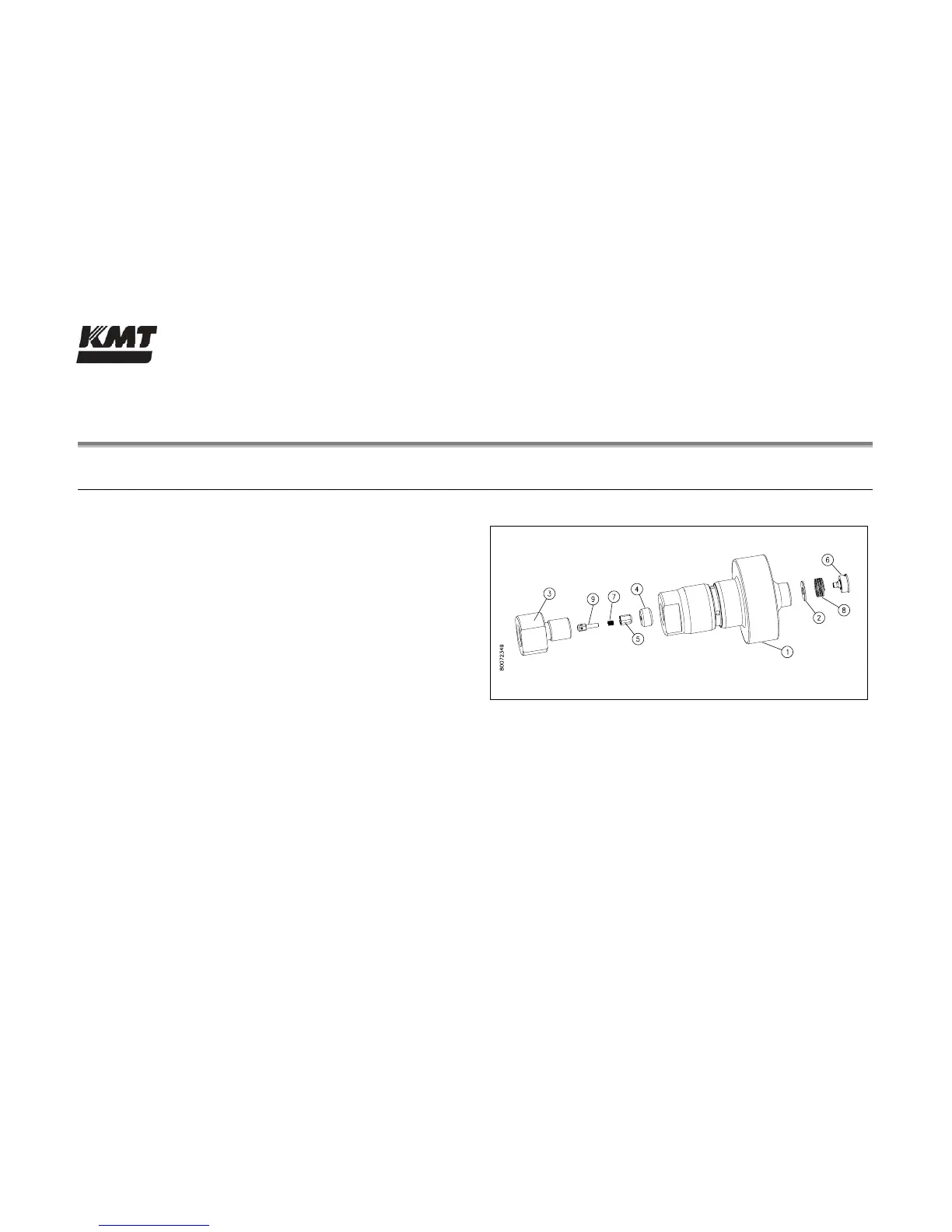

Figure 11-4: Sealing Head Assembly

2 05144662 Inlet Poppet Valve 1

10107894 Alternate Inlet Poppet Valve

3 05116777 Gland Nut 1

4 05112768 Seat 1

5 05116561 Discharge Poppet Valve 1

6 05144670 Poppet Retainer 1

7 05147863 Compression Spring 1

8 49884562 Compression Spring 1

9 05116751 Poppet Pin 1

05133335 Rebuild Kit

Includes Items 4, 5, 7 and 9
