Section 10
Specifications
20479304
2-2012/Rev 04
10-9
Torque Specifications

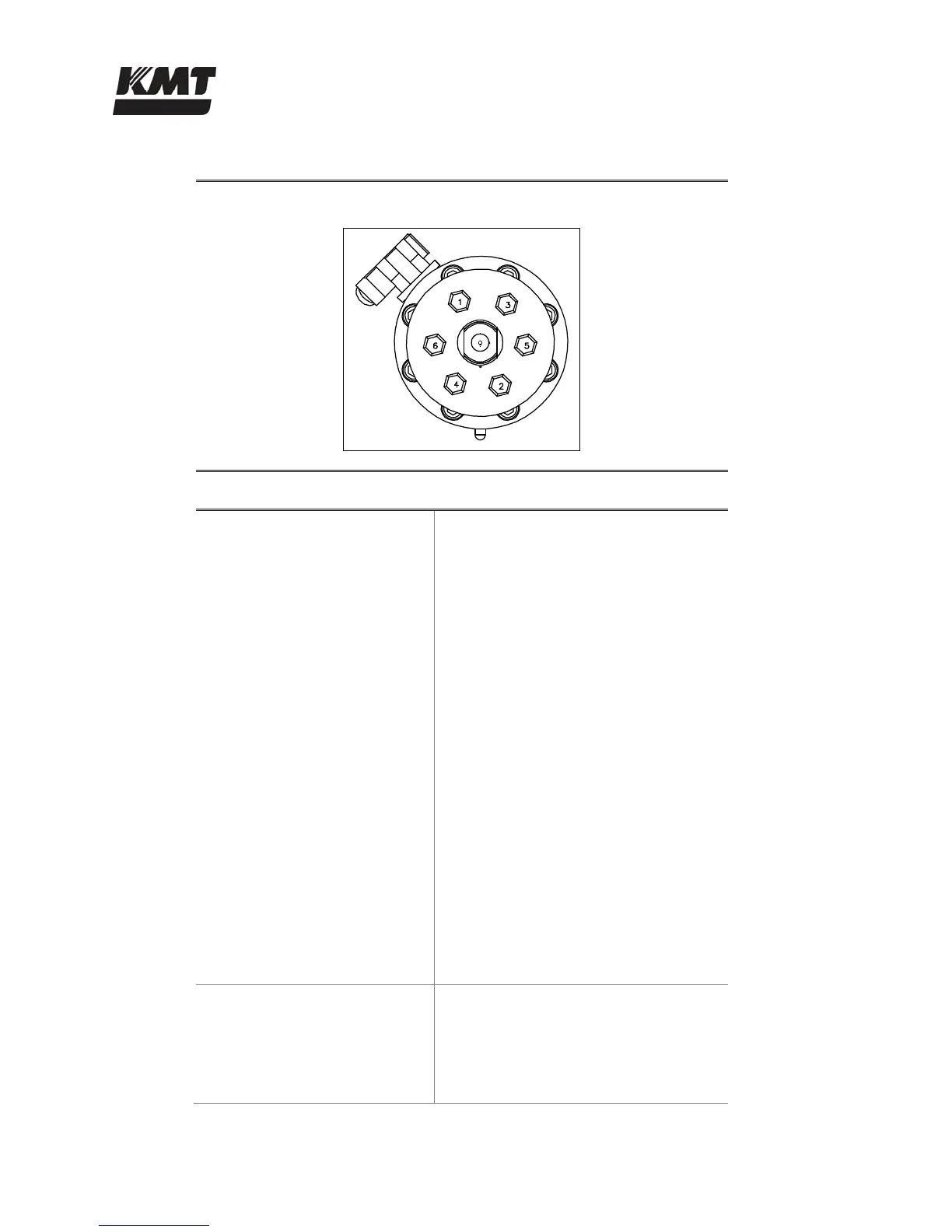

6-Bolt Crossing Pattern
* Note: Crossing Pattern: 1, 2, 3, 4, 5, 6
Hydraulic Cylinder Head
Socket Head Screws 8 (M14) each
Torque 75-80 ft-lbs (102-108 Nm)
Hex Key M12
Proximity Switch
Socket Head Screws 2 (M6) each
Torque 140-160 in-lbs (16-18 Nm)
Hex Key M5
Sealing Head
Discharge Gland 130 ft-lbs (176 Nm)
Poppet Retainer Screw 30 in-lbs (3.4 Nm)
Pneumatic Control Valve
HP Adapter 25 ft-lbs (34 Nm)
1/4-inch Outlet to Drain 25 ft-lbs (34 Nm)
Pneumatic Actuator 5 ft-lbs (7 Nm)
3/8-inch HP Gland 50 ft-lbs (68 Nm)
High Pressure Fittings
1/4-inch Gland Nut 25 ft-lb (34 Nm)
3/8-inch Gland Nut 50 ft-lb (68 Nm)
9/16-inch Gland Nut 110 ft-lb (149 Nm)
