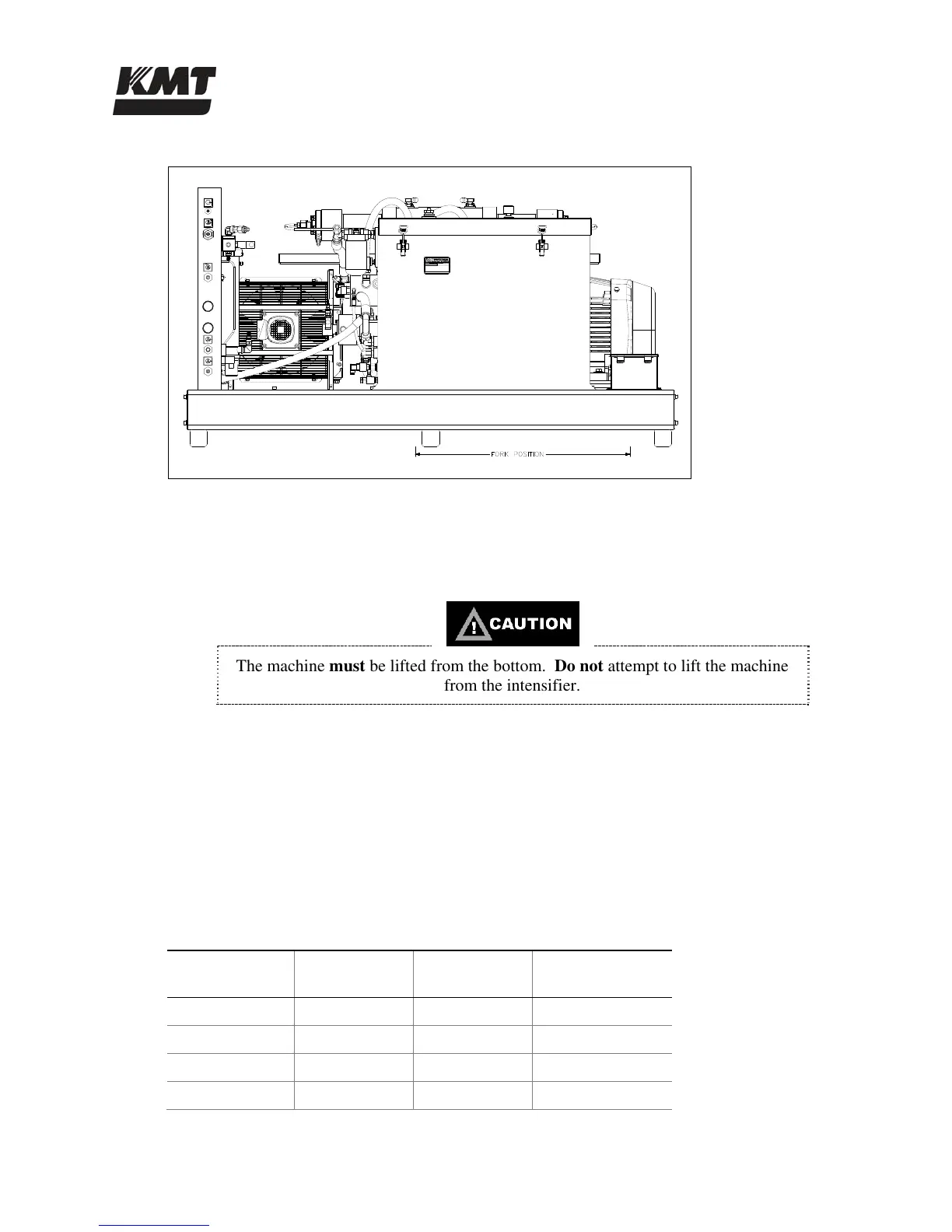

Figure 2-2: Fork Pockets
If the machine will be installed in an overhead location, a forklift or crane can be used to position
the pump. Heavy straps or chains, properly rated for the weight requirements, should be placed
across the bottom, and wrapped around the sides of the machine so they meet on the top. The
straps can then be attached to a crane or forklift to lift the machine.
The machine must be lifted from the bottom. Do not attempt to lift the machine
from the intensifier.
2.4 Power Requirements
Power supplied to the pump and wiring for remote control must comply with local, regional and
national electrical codes. Service voltage and ampacity must meet the requirements of the
specific model. Voltage fluctuations in excess of +/- 10 percent of nominal voltage may damage
the machine and void the warranty. Refer to Table 2-2, Ampacity and Power Voltage
Requirements.
Table 2-2
Ampacity and Power Voltage Requirements
Power Voltage
Motor
Horsepower
Full Load
Amps
Circuit Breaker
Amps
200/3/50-60 50 132 175
208/3/50-60 50 128 175
230/3/60 50 116 150
380/3/50 50 69 100
