Section 4
Low Pressure Water System
20479275
9-2010/Rev 02
4-4

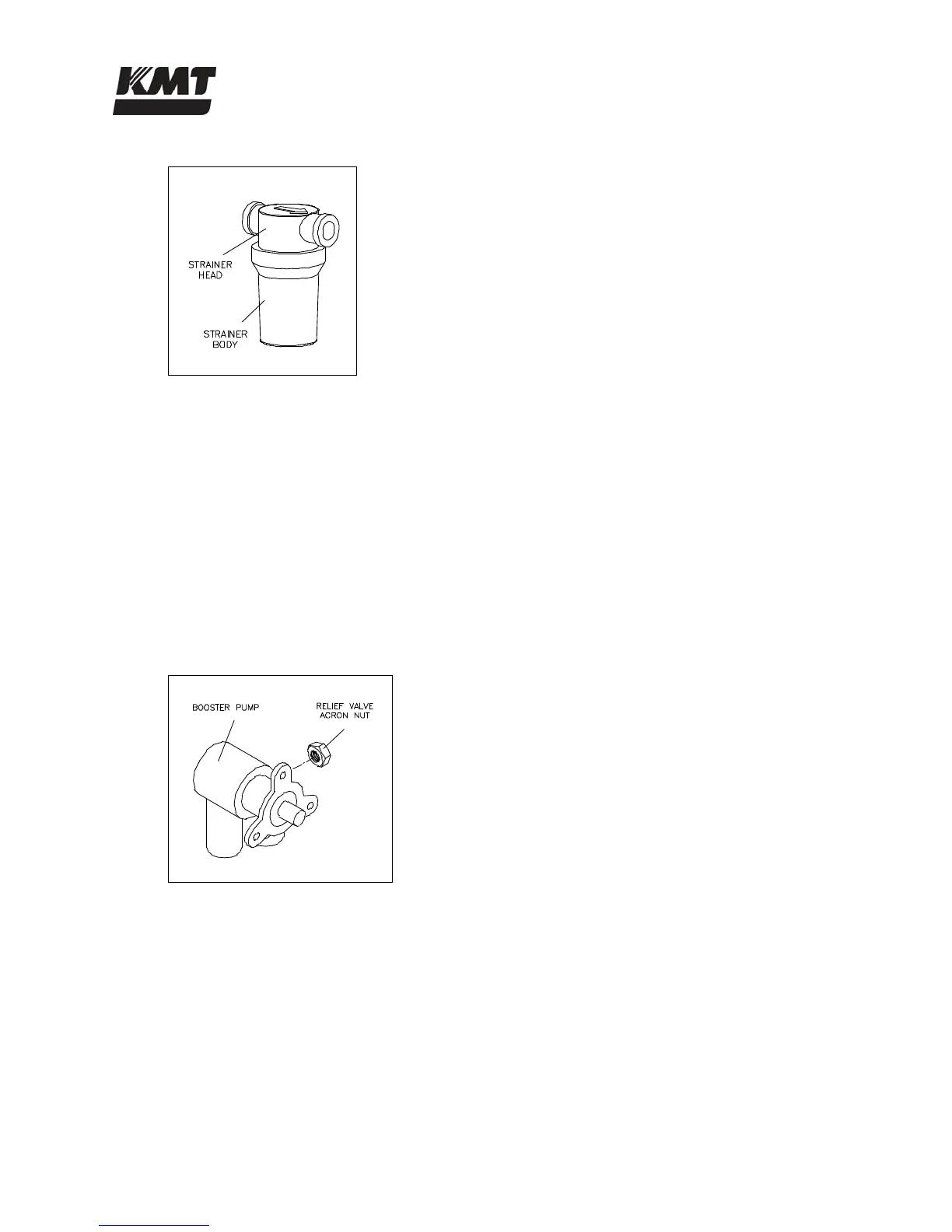

Figure 4-3: Strainer
5. Unscrew and remove the strainer body. Remove and clean the mesh liner.
6. Ensure the gasket is properly positioned in the body, install the liner and screw the strainer
body into the strainer head, hand tighten.
7. Turn the cutting water supply on.
8. Press the red bleed valve to remove any air inside the housing.
9. Start the machine and verify satisfactory pressure readings.
Booster Pump Adjustment
If the discharge pressure from the booster pump stays below 90 psi (6 bar) while the intensifier is
shifting, the relief valve on the booster pump should be adjusted.
Figure 4-4: Booster Pump
1. Turn the cutting water supply on.
2. Start the machine and initiate normal, shifting operation.
3. Observe the discharge pressure from the booster pump. If the pressure stays below 90 psi
(6 bar), continue with Step 4.
4. Stop the intensifier and remove the acorn nut on the side of the pump to access the
adjustment screw. It is normal for water to leak out when the acorn nut is removed.
5. Use a flat screwdriver and turn the adjustment screw clockwise to increase the discharge
pressure or counter-clockwise to decrease the pressure. Adjust the pressure to the highest
desired pressure, within normal booster pump range.
