2.3 Site Requirements
The intensifier must be installed indoors where air borne dust and contaminants are minimal. The
ambient temperature should be between 40 F (5 C) and 104 F (40 C), with a maximum
relative humidity of 95%.
Refer to Table 2-1, Equipment Dimensions and Weight, to establish a suitable installation site. A
minimum clearance of 36 inches (914 mm) should be provided on all sides of the machine to
facilitate service.

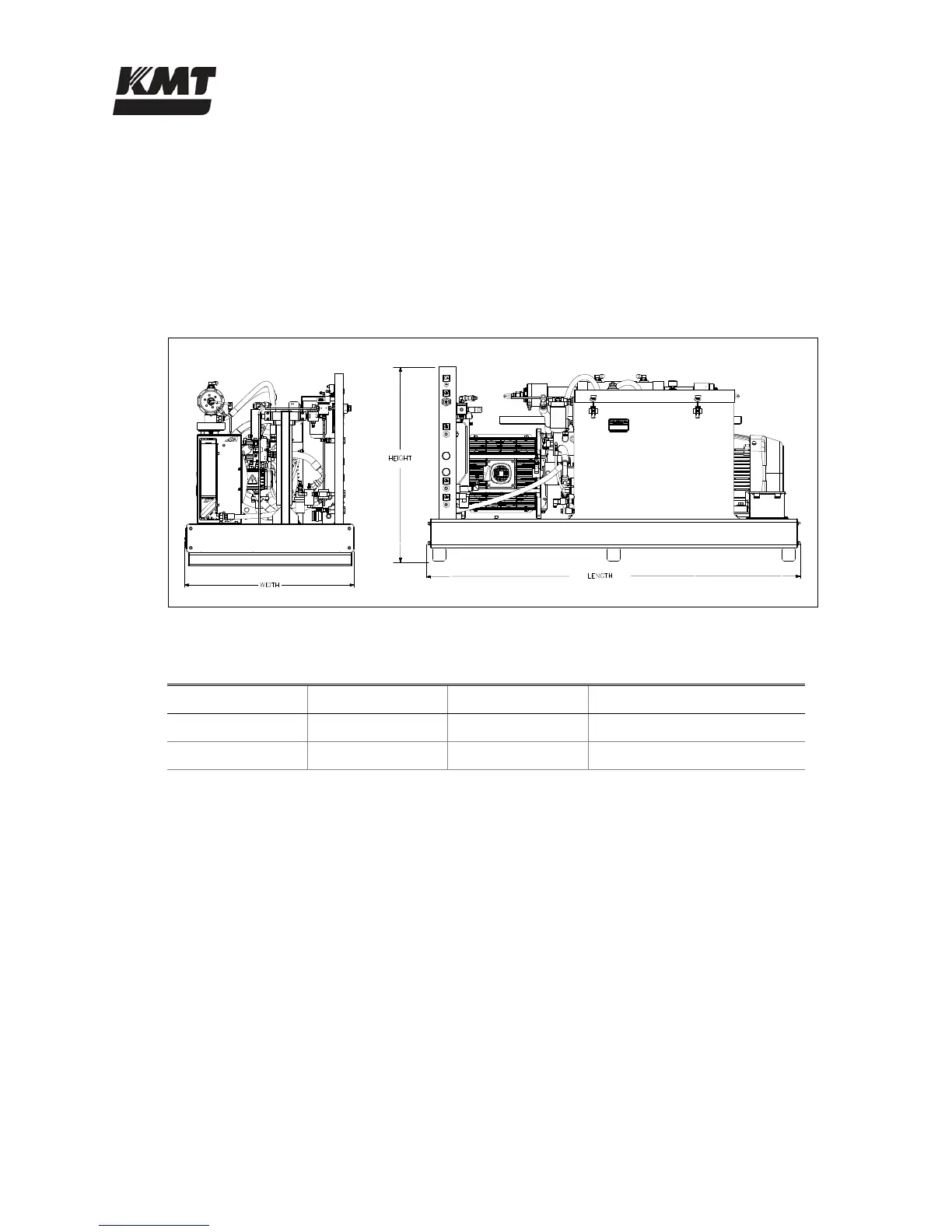

Figure 2-1: Equipment Dimensions
Table 2-1
Equipment Dimensions and Weight
Length Width Height Weight
85.37” (2,168 mm) 39.36” (1,000 mm) 43.06” (1,094 mm) 2,590 lbs (1,175 kg) air-to-oil
2,194 lbs (995 kg) water-to-oil
Transporting
The weight of the machine is not evenly distributed from one end to the other. Do not attempt to
lift the machine from either end. Note the warnings stamped on the crate. The center of gravity
is clearly identified on the sides of the crate. The forklift should be positioned accordingly.
When the machine has been removed from the crate, note the position of the supports on the
bottom of the machine. To balance the weight the forklift should be positioned as shown below.
