Section 8
High Pressure Water System
20479291
2-2012/Rev 04
8-13
8. Connect the high and low pressure water piping and turn the low pressure water supply
on.
9. Start the machine in low pressure mode to flush air from the high pressure components
and to check for obvious leaks. After 5-10 strokes, switch to high pressure operation and
check for leaks.
If leaks are detected, turn the machine off and remedy the problem. When the problem
has been remedied, repeat the start up procedure.
8.8 Sealing Head
The sealing head is sealed to the outboard end of the high pressure cylinder by a metal-to-metal
compression seal. The pre-loading jackbolts in the hard seal end cap hold the sealing head
against the end of the cylinder.
The inlet and discharge check valves in the sealing head ensure the low pressure and high
pressure water only travels in the appropriate direction.

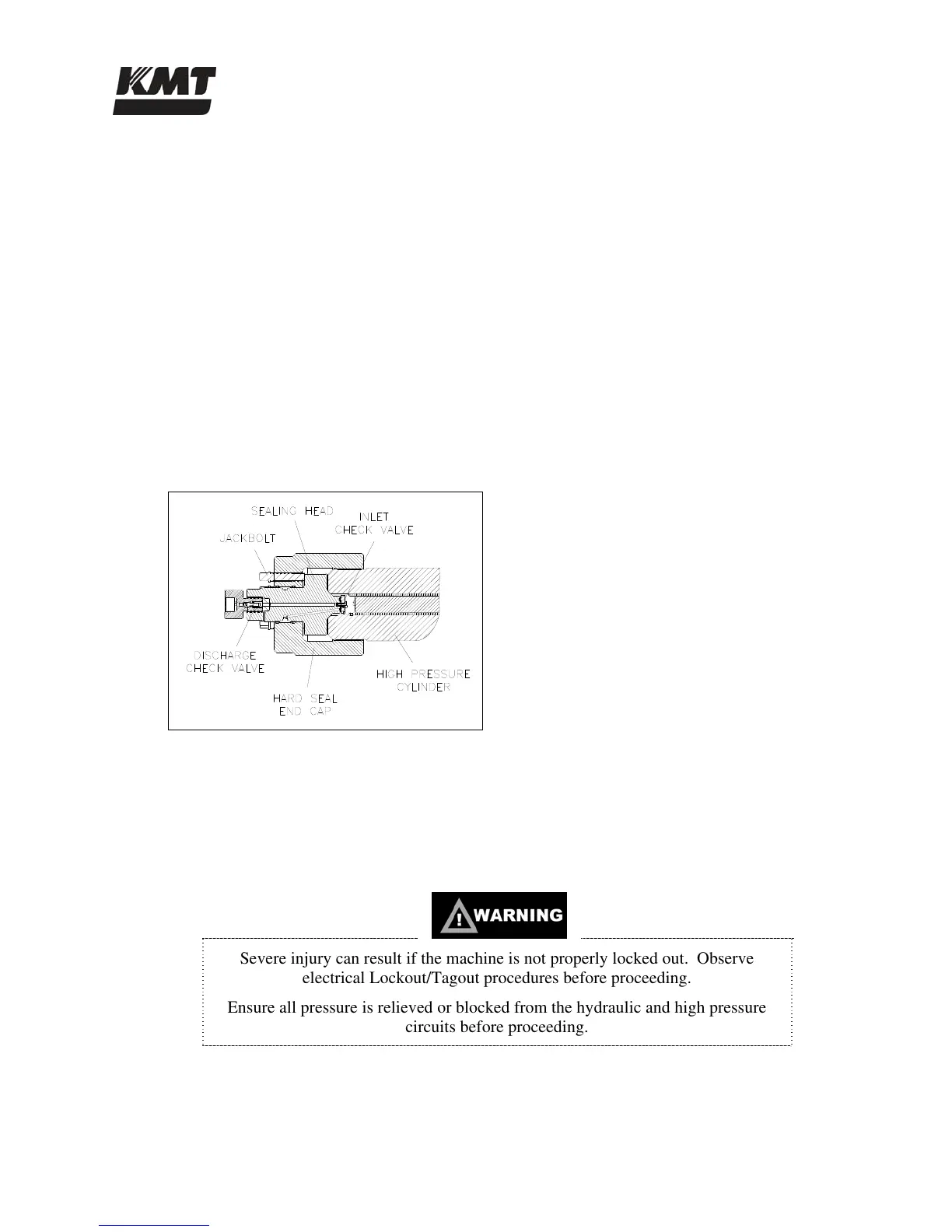

Figure 8-9: Sealing Head
High Pressure Discharge Check Valve
The high pressure discharge check valves should be serviced on a regular, preventive
maintenance schedule. Service is recommended every 1,500 hours. The discharge check valve
can be serviced with the sealing head either installed or removed from the high pressure cylinder.
1. Turn the machine off and observe the appropriate Lockout/Tagout procedures.
Severe injury can result if the machine is not properly locked out. Observe
electrical Lockout/Tagout procedures before proceeding.
Ensure all pressure is relieved or blocked from the hydraulic and high pressure
circuits before proceeding.
2. Disconnect the high pressure water piping, following the procedure, High and Low
Pressure Water Piping.
