KMT STREAMLINE S50 - 8.3 System Components; High Pressure Cylinder Assembly; Hydraulic Cylinder Assembly

Section 8
High Pressure Water System
20479291
2-2012/Rev 04
8-3
8.3 System Components
The following figures illustrate the individual high pressure water system components.

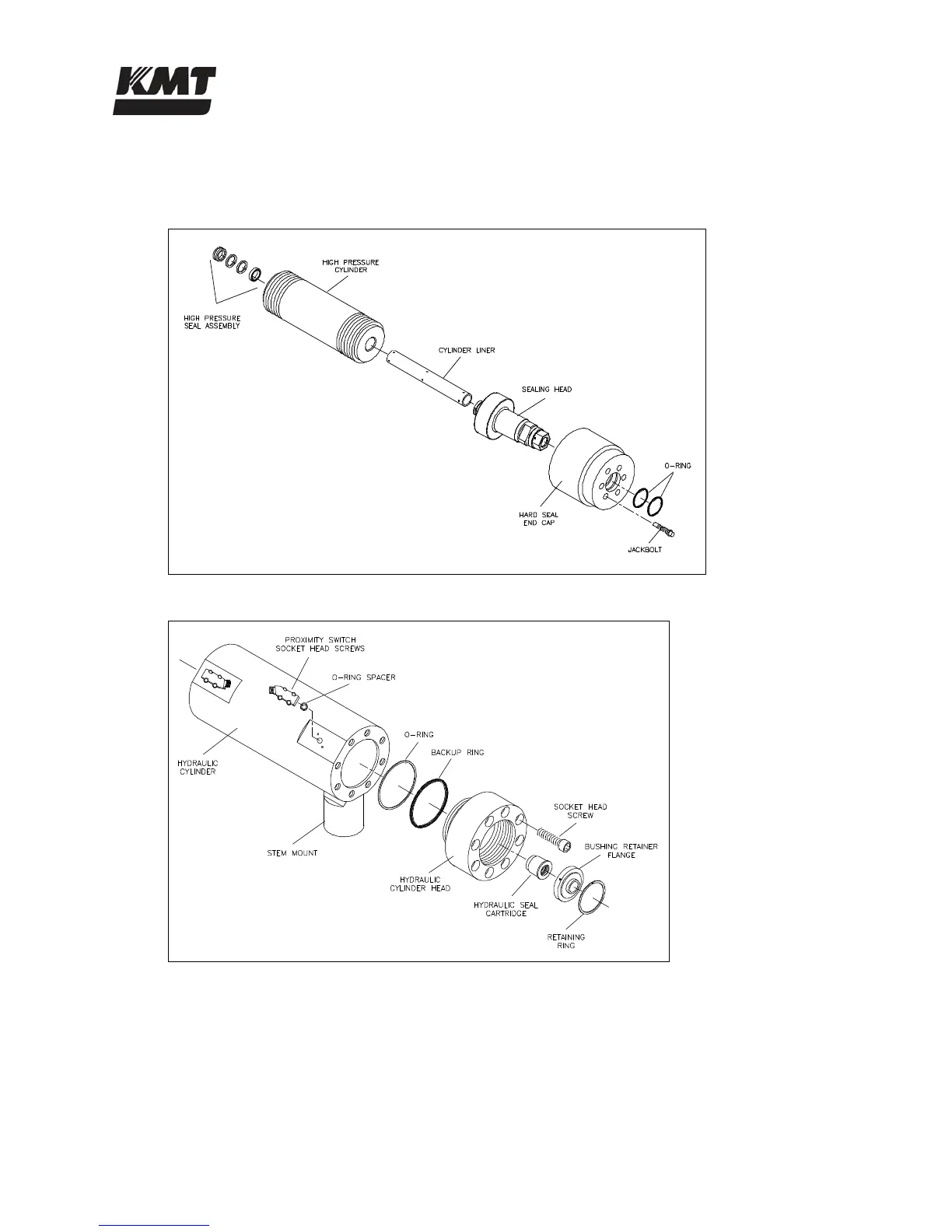

Figure 8-3: High Pressure Cylinder Assembly
Figure 8-4: Hydraulic Cylinder Assembly
