L5-16 Steering Component Repair L05026

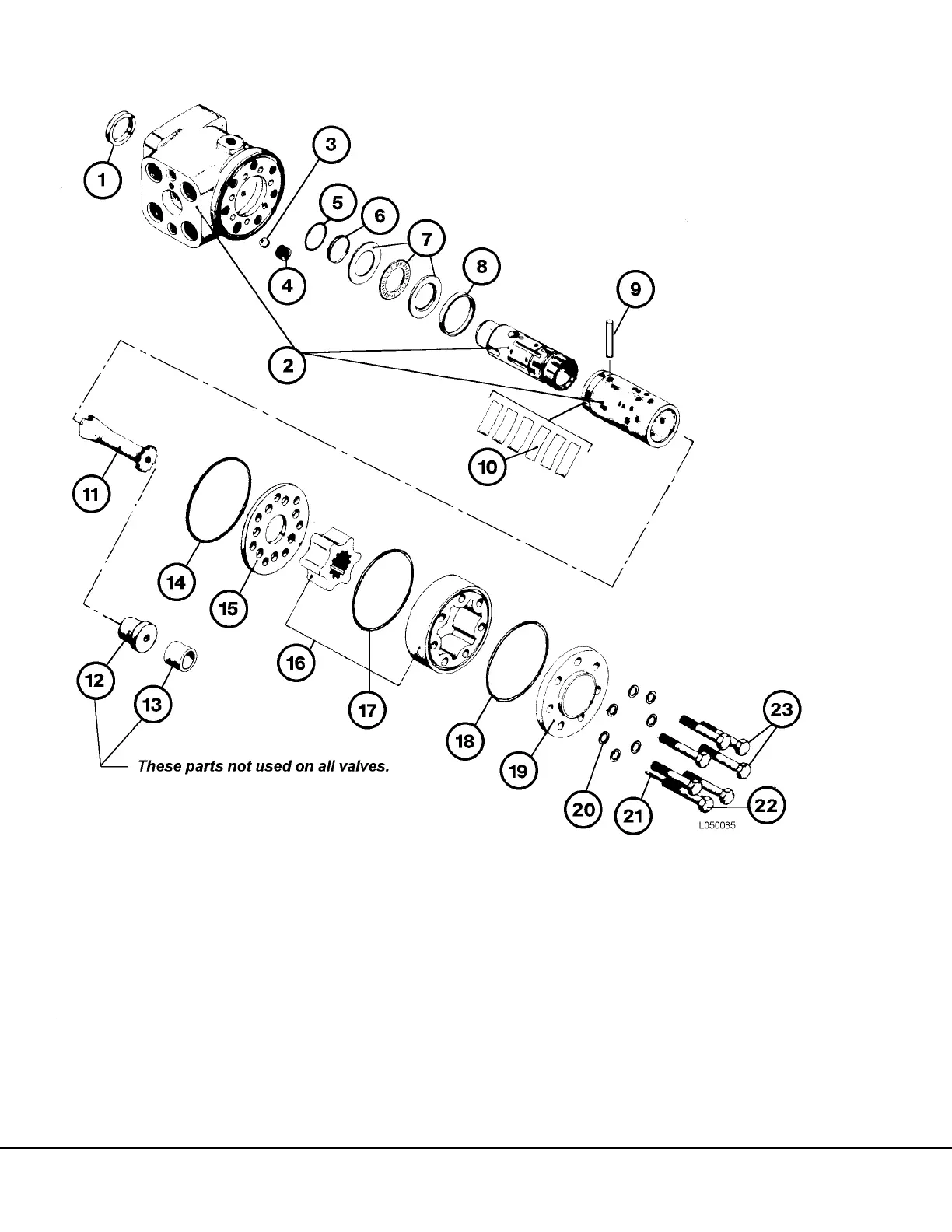

FIGURE 5-17. STEERING CONTROL UNIT
1. Dust Seal
2. Housing & Spools
3. Ball
4. Threaded Bushing
5. O-Ring
6. Kin Ring
7. Bearing Assembly
8. Ring
9. Pin
10. Neutral Position
Springs
11. Cardan Shaft
12. Spacer
13. Tube
14. O-Ring
15. Distribution Plate
16. Gear Wheel Set
17. O-Ring
18. O-Ring
19. End Cover
20. Washers
21. Rolled Pin
22. Capscrews with Pin
23. Capscrews
