Komatsu 830E - Page 470

L5-26 Steering Component Repair L05026

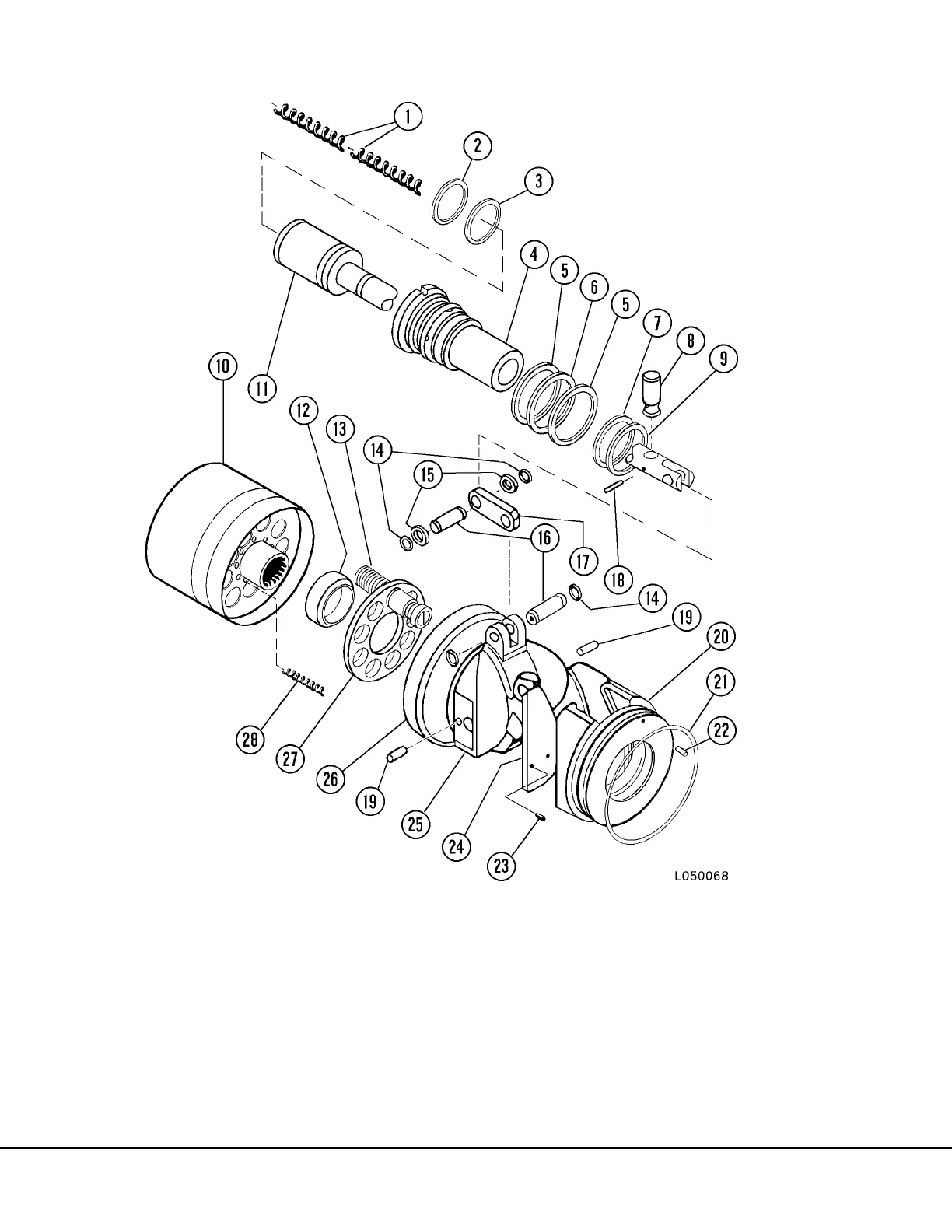

FIGURE 5-23. PUMP, ROTATING GROUP
1. Springs
2. Seal
3. Piston Ring
4. Sleeve
5. Back-up Ring
6. O-Ring
7. O-Ring
8. Pin
9. Back-up Ring
10. Cylinder Barrel
11. Control Piston
12. Ball
13. Piston Shoe Assembly
14. Retainer Ring
15. Washer
16. Pin
17. Link
18. Pin
19. Dowel Pin
20. Saddle
21. O-Ring
22. Roll Pin
23. Roll Pin
24. Saddle Bearing
25. Swash Block
26. Cylinder Bearing
27. Retainer
28. Spring
