Komatsu 830E - Page 704

N5-16 Operator Controls N05056
OVERHEAD STATUS / WARNING INDICATOR LIGHTS

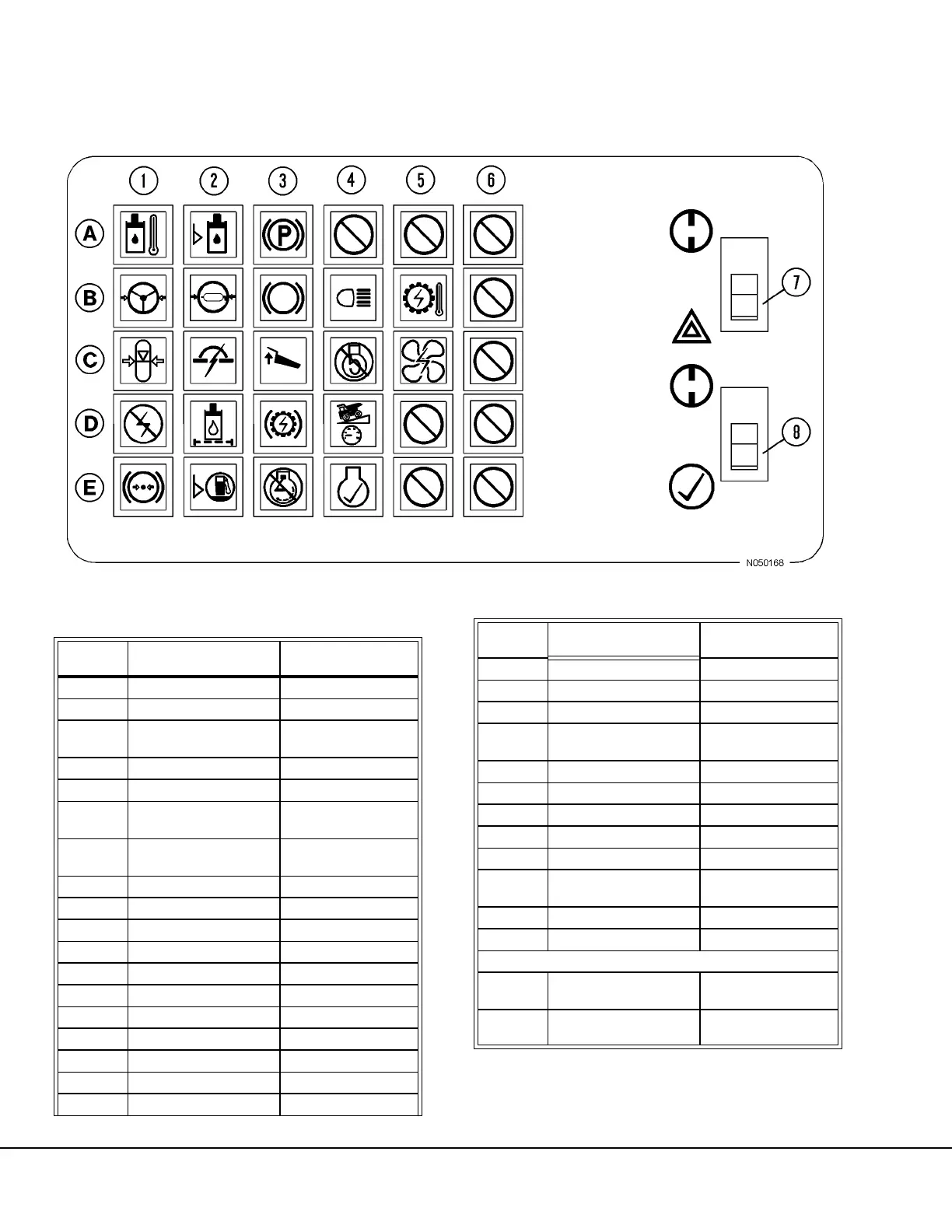

FIGURE 5-8. OVERHEAD STATUS / WARNING INDICATOR LIGHTS
Row/
Column
Indicator
Description
Indicator Color -
Wire Index
A1 Hydraulic Oil Temp. Red - 12FD1/34TL
B1 Low Steering Pressure Red - 12FD/33A
C1
Low Accumulator Pres-
sure
Red - 12F/33K
D1 Electric System Fault Red - 12F/79V
E1 Low Brake Pressure Red - 12F/33L
A2
Low Hydraulic Tank Oil
Level
Red - 12F4/34LL
B2 Autolube Low Press.
Yellow - 12FD8/
68LLP
C2 Circuit Breaker Tripped Yellow - 12FD/31CB
D2 Hydraulic Oil Filter Yellow - 12FD/39
E2 Low Fuel Yellow - 12F5/38
A3 Park Brake Yellow - 12MD/52A
B3 Service Brake Yellow - 12MD/44L
C3 Body Up Yellow - 12MD6/63L
D3 Dynamic Retarding Yellow - 12MD/44DL
E3 Stop Engine Red - 12M/509MA
A4 Blank - For Future Use Yellow - 12MD/SP2
B4 Back-up Lights Yellow - 12MD/47L
C4 5 Minute Idle Timer Yellow - 12MD/23L1
D4 Retard Speed Control Yellow - 12MD/31R
E4 Check Engine Yellow - 12MD7/419
A5 Blank - For Future Use Red - 12MD/528A
B5
Wheel Motor Tempera-
ture
Red - 12FD1/722L
C5 Blower OFF Red - 12FDZ/32B
D5 Blank - For Future Use Yellow - 12F/SP4
E5 Blank - For Future Use Red - 12FD/SP5D1
A6 Blank - For Future Use Yellow - 12M/SP6
B6 Blank - For Future Use Red - 12M/SP7D2
C6 Blank - For Future Use
Yellow - 12MD/
SP7D1
D6 Blank - For Future Use Yellow - 12MD/528
E6 Blank - For Future Use Red - 12MD/SP5D2
SWITCHES
#7
Hazard Lights Switch,
N.O.
11L/45L/45R
#8
Lamp Check Switch,
N.O. (Momentary)
712/528/33H/710
Row/
Column
Indicator
Description
Indicator Color -
Wire Index
