2.5. Options
2.5.1. Extension (input 5-8 and output 2-5)
Power output Outputs 2 -5

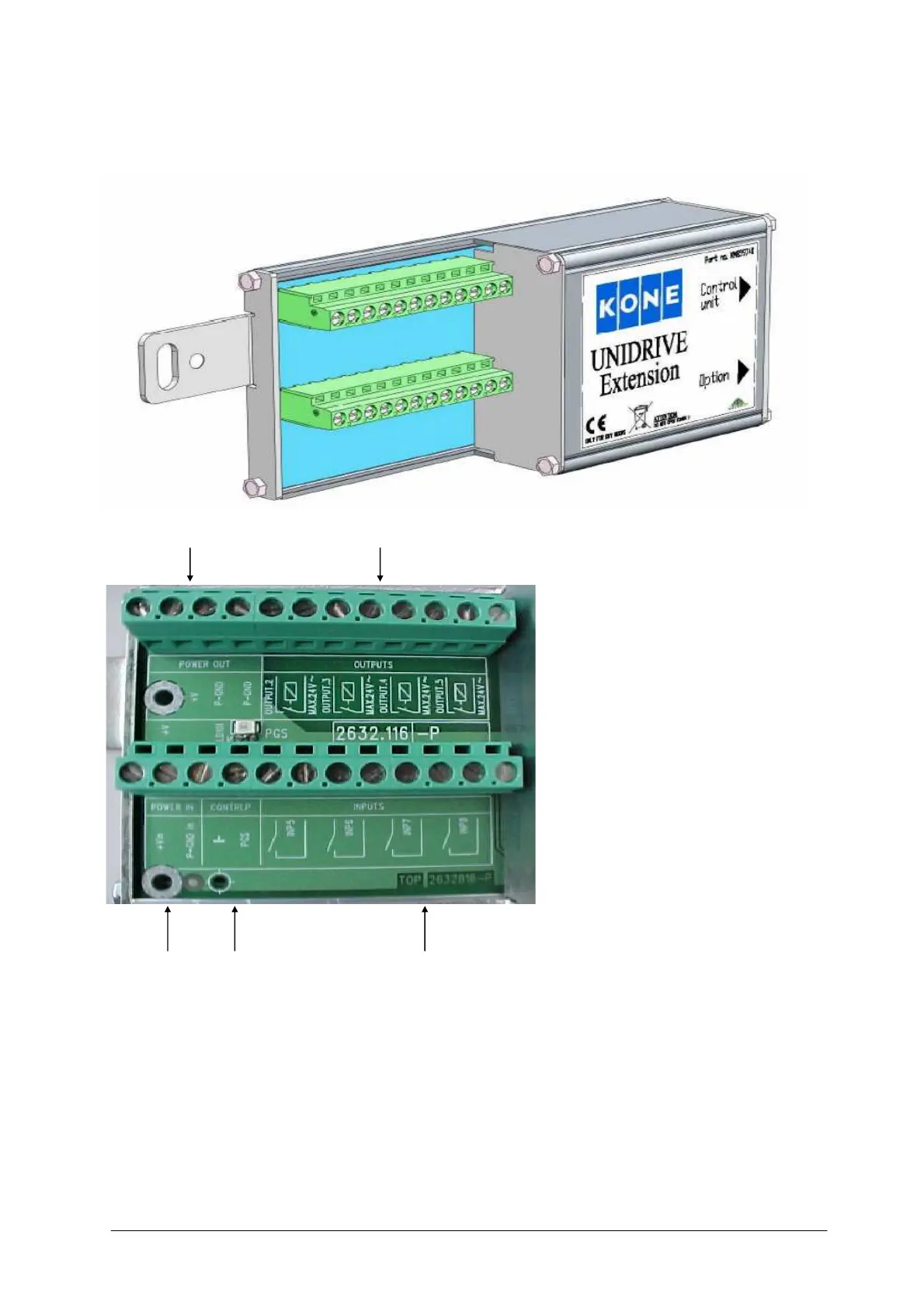

Additional connections are available with
the extension board.
This unit is automatically recognised by the
control box during starting up
4 Additional in- and 4 outputs are available
+ 2 wire connections for the UWS PGS.
Input- and output functions are
programmable (see from § 2.2).
Power input. UWS PGS Inputs 5-8 (are not tested)
(linked to (earth shield under ground)
+24V in
control unit
2.5.2. Infra red
In preparation
2.5.3. Option 1
In preparation
