service manual vs 9 46

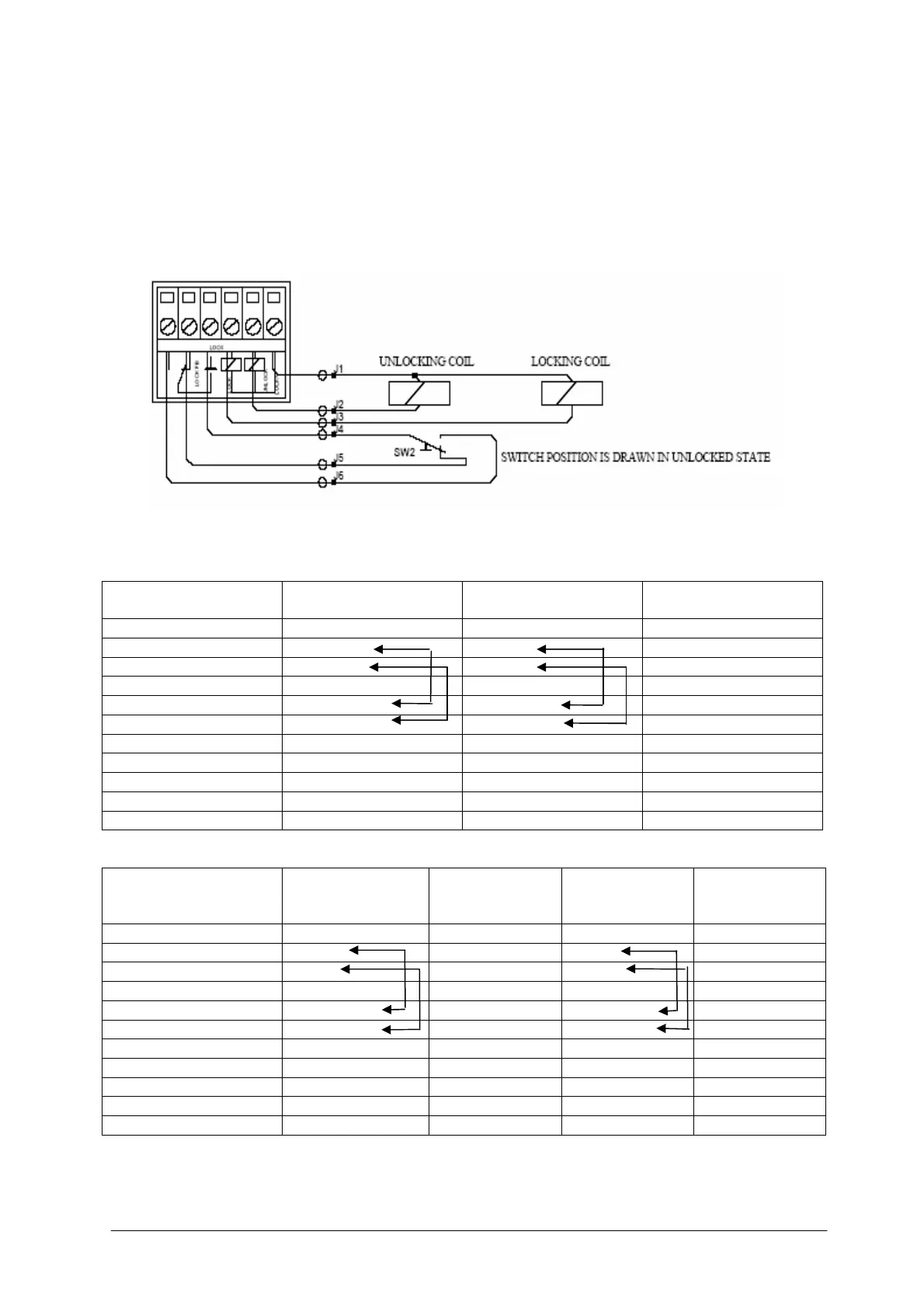

2.6.5. Locking devices several types
On the Psion screen is, after this locking device is selected, more information available when the button <menu> is
pressed on the psion.
2.6.5.1. Besam EMJ/Unislide/Dorma DAC/Dorma CS/Dorma ES90_100/KONE
MONOSTABLE BESAM EMJ
MONOSTABLE
BESAM UNISLIDE
MONOSTABLE
KONE UniDrive
TM
MONOSTABLE
J1 (LOCK +) Black Brown Brown
J2 (Unlock coil) Black Blue White
J3 (Lock coil) --- ---
J4 (Feed back common) --- --- Green
J5 (Feed back NC) --- Wire link --- Wire link Grey
J6 (Feed back NO) --- Wire link --- Wire link Yellow
SW 1 OFF OFF OFF
SW 2 OFF/ON OFF/ON OFF/ON
PSION ext. Lock type Default type Default type Default type
Adjustment ext. voltage Jumper on 24V Jumper on 24V Jumper on 24V
BISTABLE DORMA DAC250
BISTABLE
DORMA CS
BISTABLE
DORMA ES90/100
BISTABLE
KONE
UniDrive
TM
BISTABLE
J1 (LOCK +) Green White Red/Green Pink
J2 (Unlock coil) Brown Green Yellow White
J3 (Lock coil) White Brown Blue Brown
J4 (Feed back common) --- White --- Green
J5 (Feed back NC) --- Wire link Green --- Wire link Grey
J6 (Feed back NO) --- Wire link Brown --- Wire link Yellow
SW 1 ON ON ON ON
SW 2 ON ON ON ON
PSION ext. Lock type Default type Default type Default type Default type
Adjustment ext. voltage Jumper on 24V Jumper on 24V Jumper on 24V Jumper on 24V
