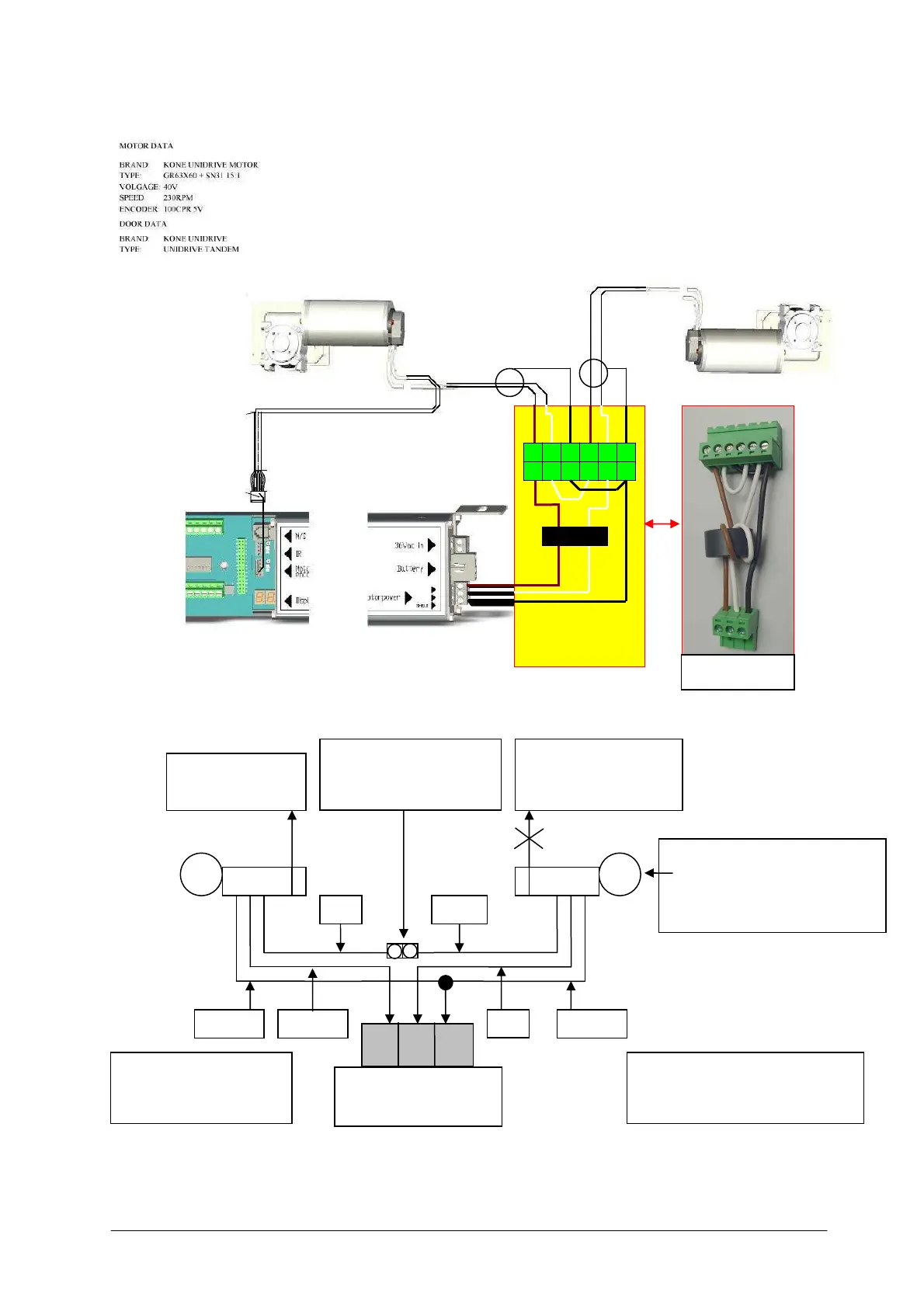

KONE UniD
rive
TM
service manual vs 9
45
Don’t
connect the
slave encoder.
Link e
ncoder
to Control unit
Link via a
daption
Con
trol
unit
Slave motor on end wheel
position.
Remove existing end
wheel
Both black wires on g
round
(GND)
1
Master
Slave
2
GND
3
2
3
1
1= Black
2= Brown
3= White
K
O
N
E
D
E
U
R
S
Y
S
T
E
M
E
N
B
V
Adaption
44
46
Table of Contents
Default Chapter
2
Table of Contents
2
Contents
4
1 Main Manual
4
General
4
Description of the Uni Drive Tm
4
Control Unit
5
Power Supply
6
Program Switch
7
Connections
8
Connection Terminal Overview
8
Open Commands: Inside and Outside
9
Photocells
9
Connection Without Photocells / Sensors
9
Sequence Open
10
Nightswitch (Ns)
10
Input 1-4
10
Output 1
10
Connection Testable Safety Sensors IRIS on and JUPITER
11
Program Switch Unidrive
12
Pin Connection of the PGS Cable
12
Construction of a PGS Cable
13
Locking Devices
14
Dipswitches
15
Learning Button
15
Starting-Up Cycle
15
BATTERY UNIT (Optional)
16
BATTERY PACK (Optional)
16
Battery Functions
17
Power Fail Action
17
Service Displays
18
Display-1
18
Display-2
18
Error Signal on Display 2
18
2 Appendix Unidrive
19
Standard I/Odescription
19
Function Descriptions
20
Locking Devices
20
One Way Mode with Locking
20
Hermetically Mode (Vs 1.35)
20
Springcord (Bungy) Opening
20
NS, Timer Mode / Porter Mode
20
Chemist Lock
20
Auto Close
20
Program Switch Functions
21
Easy Come in
21
Programmable Inputs and Outputs
21
Programmable Input Functions
22
Programmable Input Flags
23
Programmable Outputs
24
Programmable Output Functions
24
Programmable Output Flags
26
Software Settings
26
Speed Settings
26
Timer Settings
26
Winter Opening Position
27
Battery Unit
27
Battery Pack
27
Software Selections
28
Toilet Mode
28
Motor Type
28
Buzzer off (Vs 1.35)
28
Close (DIN18650 - Vs 1.35)
28
Open (DIN 18650 - Vs 1.35)
28
Programmable Input FC-Like Tested (Vs 1.35)
28
Function Keepclosed (Vs 1.35)
28
Function Close at Error (Vs 1.35)
28
Reset Service Counter Without PSION (Vs 1.35)
28
Uws Program Switch with Adapter
29
Options
30
Extension (Input 5-8 and Output 2-5)
30
Infra Red
30
Option 1
30
Motors
31
Motor Types
31
Motor CONNECTIONS
32
Besam EMJ
32
Besam Unislide GR 63 X 25
33
Besam Unislide GR 63 X 55
33
Dorma es 90/100
35
Dorma DAC 250
36
Dorma CS
37
Geze Slimdrive
38
Waldoor UWS 2400 2000
39
Record STA 18
40
Portalp Diva
41
Encoder Cables
42
Geze Slimdrive
42
Besam EMJ
42
Record STA18
43
Portalp Diva
43
Unidrive Tandem Operation
44
Locking Devices Several Types
46
Besam Emj/Unislide/Dorma Dac/Dorma Cs/Dorma ES90_100/KONE
46
Locking GEZE Slimdrive
47
Locking Record STA 18
47
Locking Portalp Diva
48
Safeties
49
Side Screen Protection
49
Obstacle Detection
49
Obstacle Detection Closing
49
Obstacle Detection Opening
49
Default Settings
50
Priority Table
51
Code Repair Parts
51
Psion Settings
52
Added Functions in Unidrive Software Version 1.35 and Psion 1.30
55
Changed Functions in Unidrive Software V1.35
56
