Kone UniDrive User Manual

KONE UniDrive
TM
service manual vs 9 5

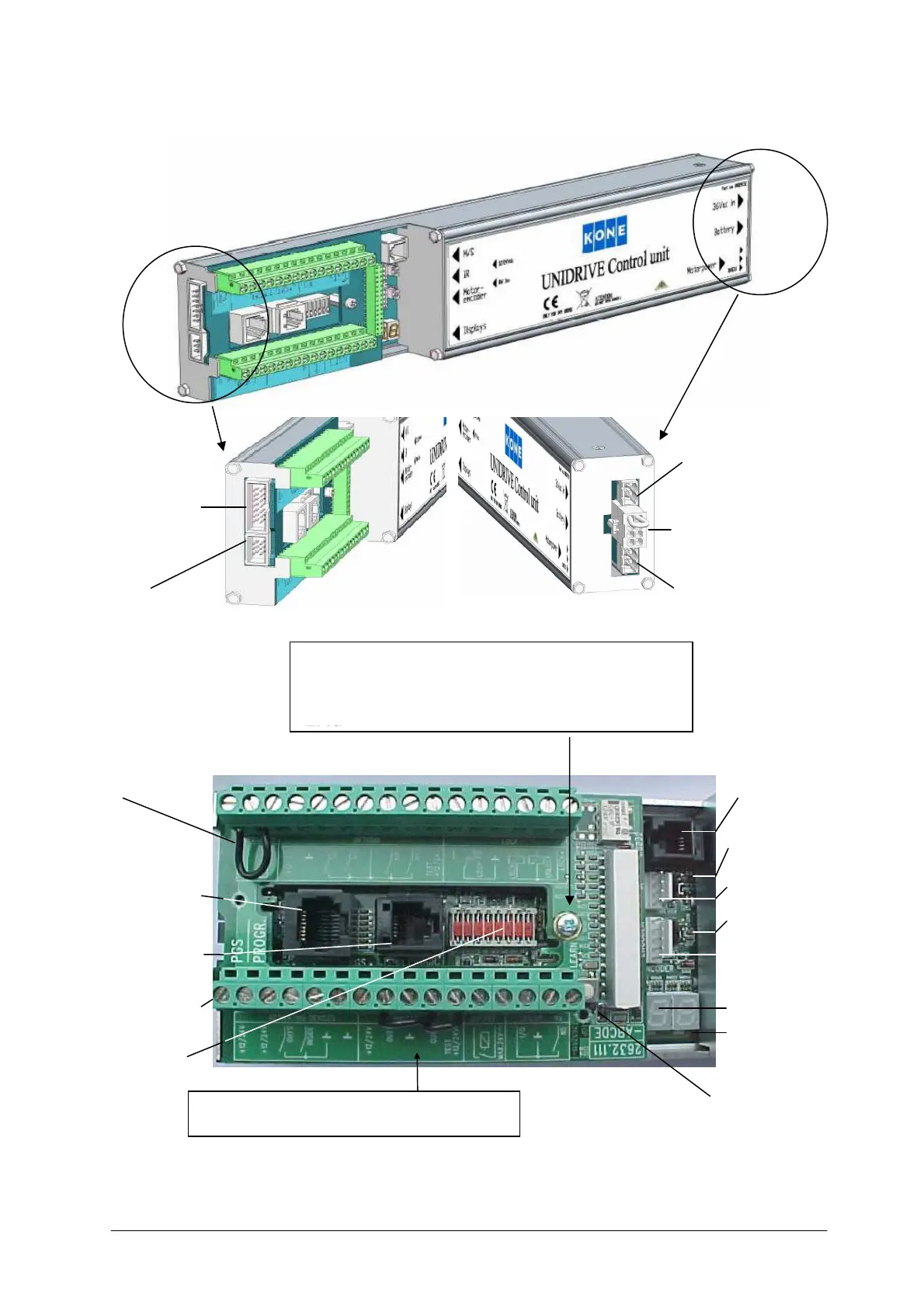

1.2.1. Control unit
Without photocells, use diodes. See § 1.3.3.1
2-wired PGS
adaption (§ 2.4)
or
Extension board
(§ 2.5.1.)
Option
To power supply § 1.2.2
Battery unit/pack § 1.7/1.8
( Without battery, install dummy
connector with wirelink, otherwise
with battery, leave wirelink in the
operator near the control unit )
Motor § 2.6
Emergency input.
Wirelink when not
used.
PGS § 1.2.3.
Psion § 2.10
Connection terminal
§ 1.3.1
Dipswitches § 1.4
Only for use in
Germany on type RW
12/24Vdc
Infra red § 2.5.2
RW (Only Germany)
Encoder § 2.6.3
Display 1 § 1.10.1
Display 2 § 1.10.2
Learning button § 1.5
Fastening bolt for connection terminal. After removing this
bolt the complete connection board is removable. During
pressing in again this board, be careful and bring in the
fastening bolt after installing the connection terminal
(EMC)

Kone UniDrive Specifications

General

Brand	Kone
Model	UniDrive
Category	Control Unit
Language	English
