PAPER FEED UNIT OF TRAY 3 (7155/7165)
3-K-5
3 DIS./ASSEMBLY

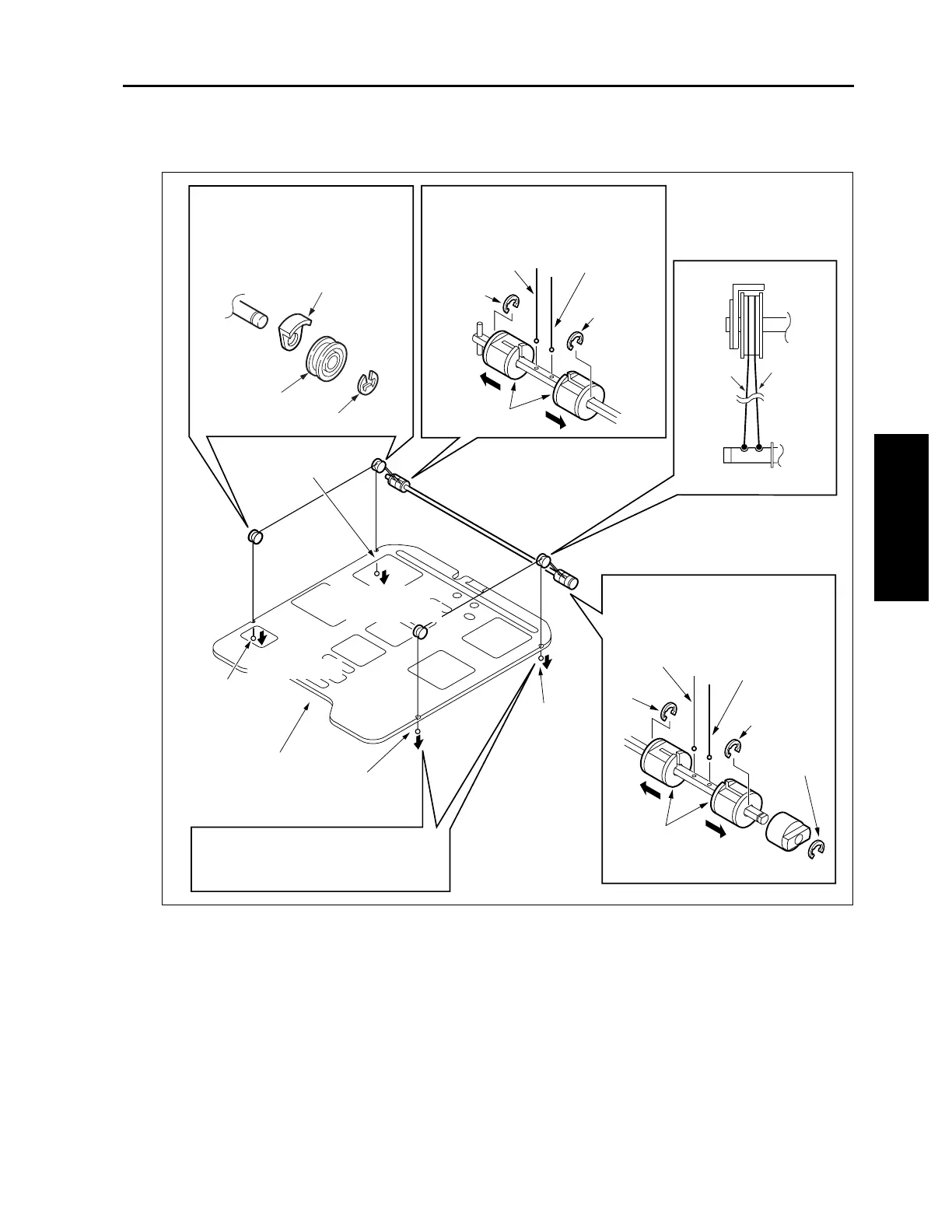

(5) Remove the front and rear wires according to steps 1 to 7 below.
Drive pulley
2, 4 Remove the E-ring to detach
the wire restraining cover
and pulley.
Wire restraining cover
Pulley
E-ring
1 Remove two E-rings to slide out the
drive pulley.
Wire C
(black)
Wire D
(white)
Drive pulley
E-ring
E-ring
Wire C
(black)
Wire D
(white)
3. Remove wire C.
5. Remove wire D.
Up/down plate
Wire B (white)
Wire C (black)
Wire A (black)
7. Repeat steps 2 to 5
to remove wire A and wire B.
6. Remove drive pulley holder
and three E-rings and pull out
the drive pulley.
Wire B (white)
Wire A (black)
E-ring
E-ring
E-ring
