Konica Minolta 7155 - PK-110;PK-120 Parts Layout Drawing

PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE HANDBOOK May 20027155/7165
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE HANDBOOK7155/7165

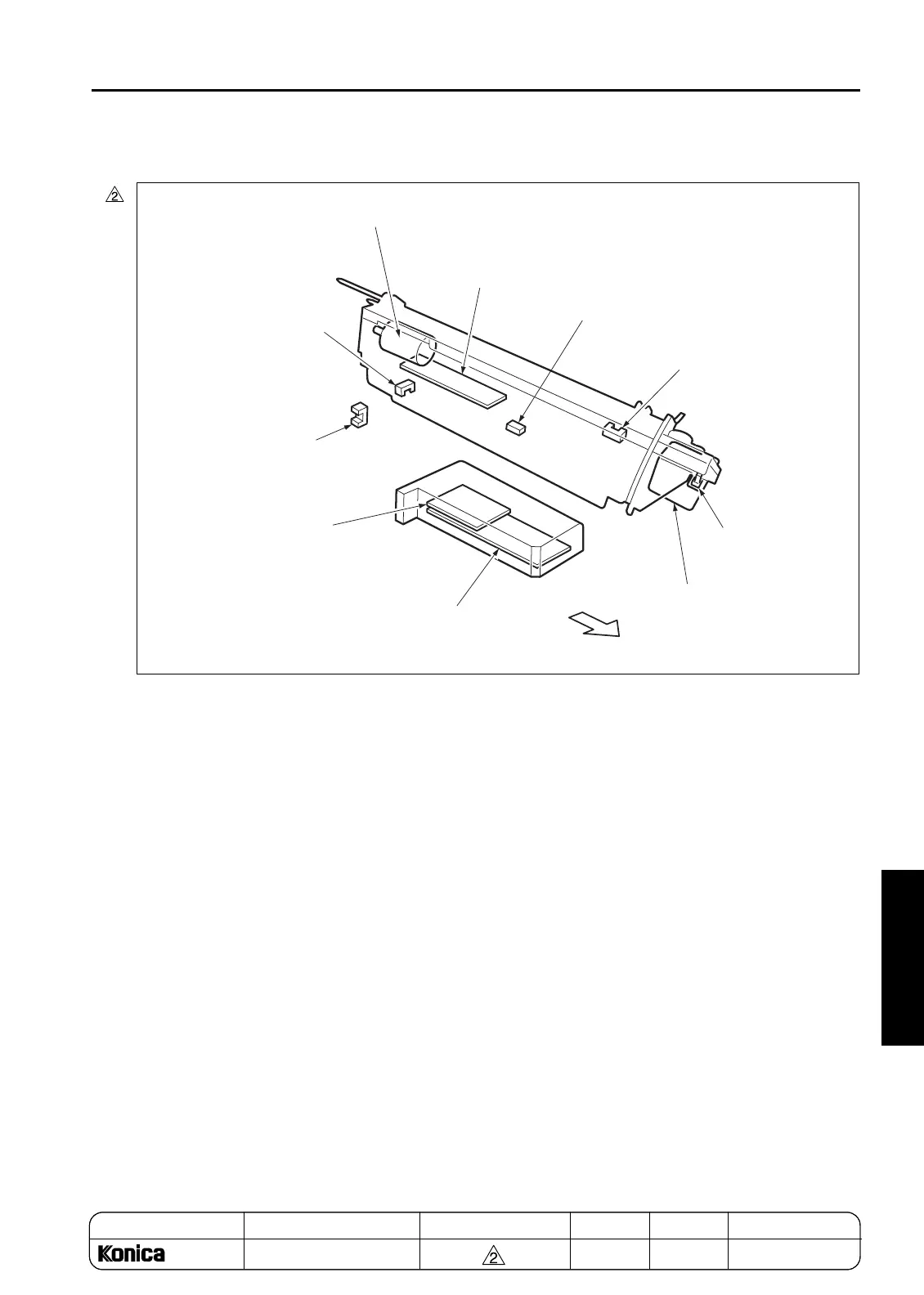

[6] PK-110/PK-120 Parts Layout Drawing
FRONT
M801
Punch motor
PAPER EDGE SENSOR
Paper edge sensor
(PK-120 only)
PS802
Punch scraps full PS
PS801
Punch HP PS
PS803
Punch shift HP PS
(PK-120 only)
M802
Punch shift motor
(PK-120 only)
PKDB
Punch drive board
(PK-120 only)
PKDB
Punch drive board
(PK-110 only)
PS804
Punch scraps box set PS
(PK-120 only)
PS804
Punch scraps box set PS
(PK-110 only)
5-15
REPLACEMENT
