[4] Paper up/down plate horizontal
adjustment (LT-402/LT-412 only)
Caution: Up/down plate horizontal adjustment
must be carried out when a paper feed
jam occurs frequently or after replace-
ment of the up/down wires of a tray.
1. Tool
• Screwdriver (Phillips)

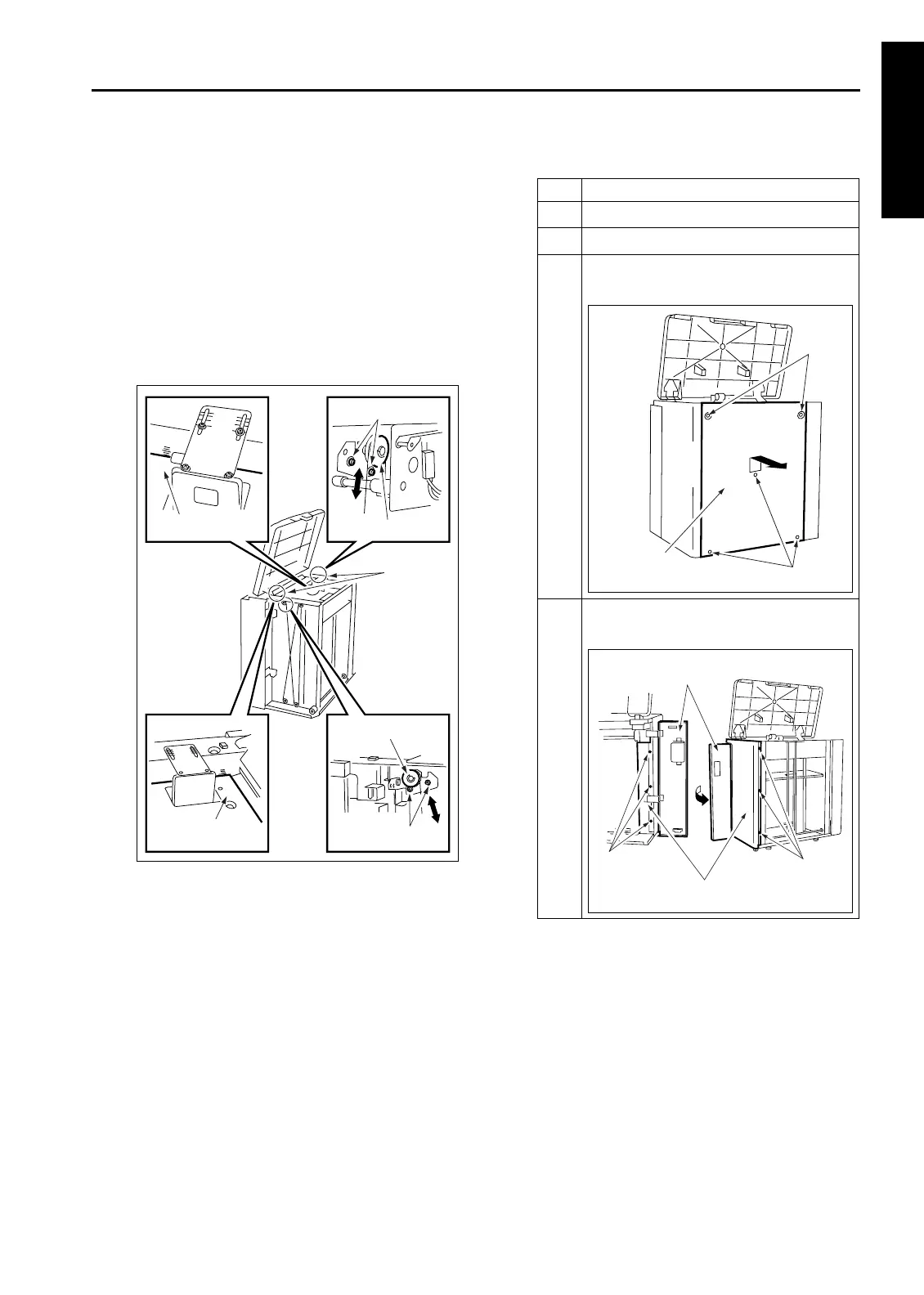

2. LCT up/down plate horizontal adjustment of LT-
402
a. Adjustment method
Up/down plate
Up/down plate
Up/down pulley
Up/down pulley
Screws
Screws
Adjusting
screws
Step Operation
1
Raise the up/down plate.
2
Open the top cover.
3
Remove five screws to detach the side
cover (right).
4
Open the jam access door, then remove
six screws to detach the front cover.
Screws
Screws
Side cover
(right)
Jam access door
Screws
Screws
Side cover (right)
