OTHER ADJUSTMENT
1 ADJUSTMENT

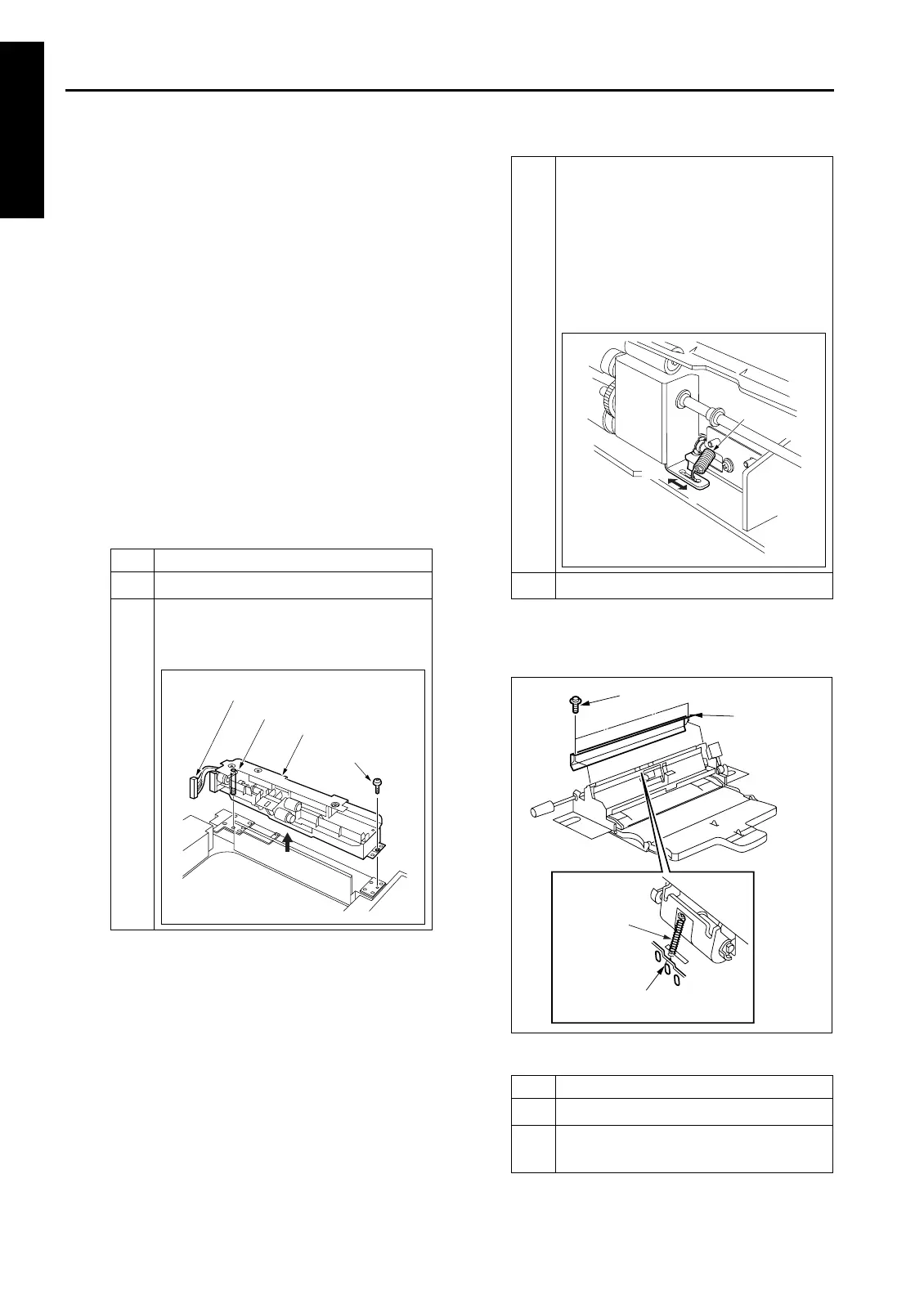

[6] Tray spring pressure adjustment
Caution: Tray spring pressure adjustment must
be performed when no feed or double
feed of paper occurs. Tray spring
pressure may be affected by the type
of paper used or the operating envi-
ronment (under low temperature con-
ditions, no feed of paper tends to
occur. Under high temperature condi-
tions, double feed of paper tends to
occur). Excessive adjustment of tray
spring pressure may exacerbate the
problem. Take care.
1. Tool
• Screwdriver (Phillips)
• Flat-nose pliers
2. Tray 1/2/3 spring pressure adjustment
a. Adjustment method
3. By-pass paper feed spring pressure adjust-
ment
a. Adjustment method
Step Operation
1
Draw out the tray.
2
Remove one screw, loosen one hold-
down shaft screw, and detach the paper
feed unit.
Connector (CN814,834,854)
Fixing shaft screw
Paper feed unit
Screw
3
Change the spring hooking position at
the bottom of paper feed unit.
Weak: Double feed is prevented.
Strong: No feed is prevented.
Reference: Reference: The spring load
changes about 10% each
time the spring is hooked in
the next slit.
4
Set the tray.
Step Operation
1
Remove the by-pass tray.
2
Remove two screws and detach the bot-
tom plate assembly.
Spring
Strong
Weak
Screws
Bottom plate
Spring
Spring
mounting hole
Weak
Strong
1-104
