PARTS LAYOUT DRAWING
5 ELECTRIC PARTS LIST
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE HANDBOOK May 20027155/7165
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE HANDBOOK7155/7165

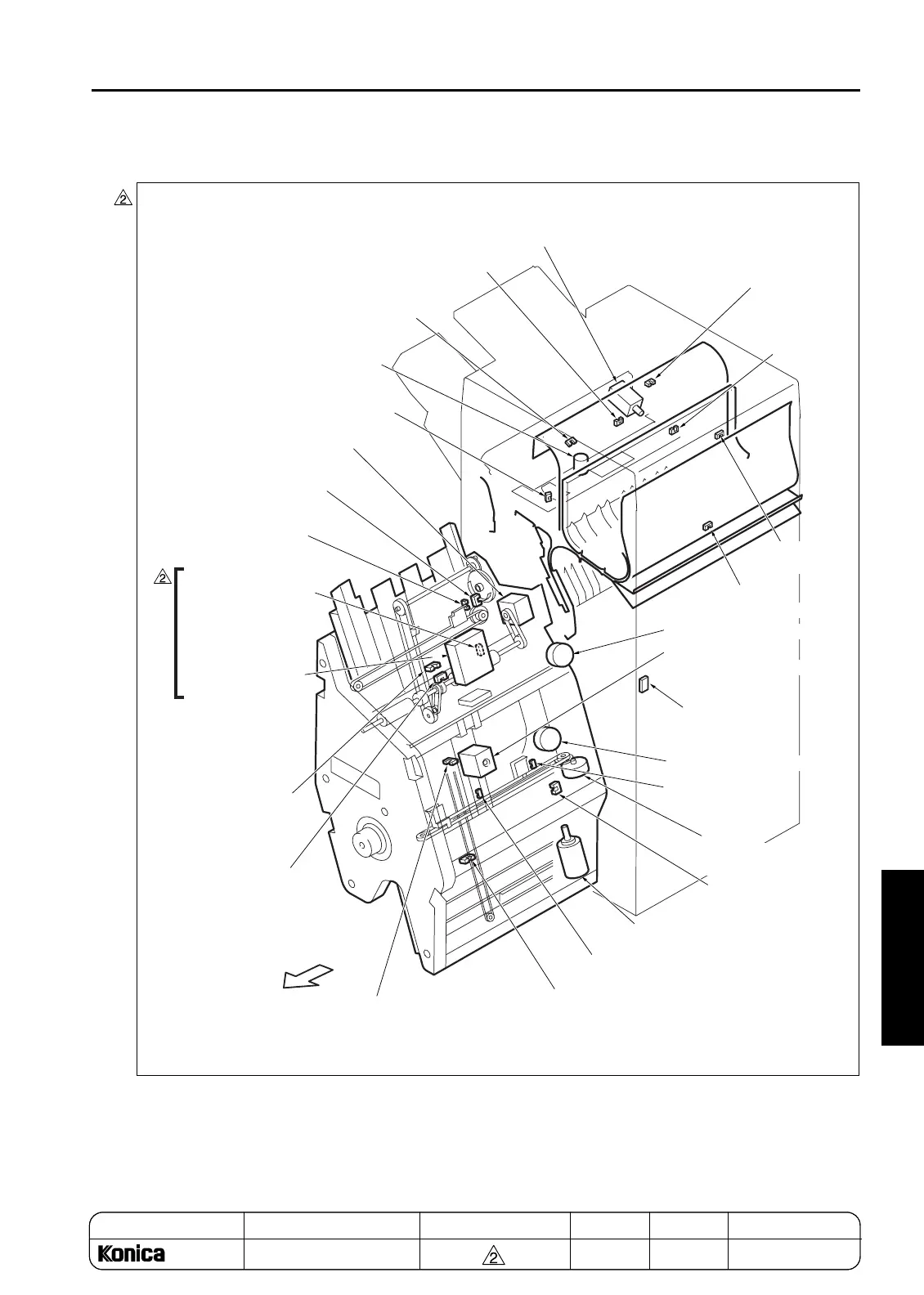

[4] FS-110/FS-210 Parts Layout Drawing
M716
Alignment/L motor
(Only for FS-210)
SD704
Paper exit opening SD
PS719
Sub-tray full PS
PS706
Main tray paper exit PS
M702
Shift motor
PS718
Shift HP PS
M713
Stacker entrance motor
PS709
Paper exit belt HP PS
PS708
Alignment HP/U PS
PS720
Stacker no paper PS
PS705
Stacker entrance PS
PS723
Folding stopper HP PS
(Only for FS-210)
PS726
Folding passage PS
(Only for FS-210)
PS714
Clincher rotation HP PS
M719
Folding knife motor
(Only for FS-210)
PS722
Folding knife HP PS
(Only for FS-210)
PS724
Alignment HP/L PS
M704
Clincher rotation motor
MS701
FNS interlock
M718
Folding stopper motor
(Only for FS-210)
M711
Stapler movement motor
PS704
FNS entrance PS
PS712
Paper exit
opening HP
PS701
Sub-tray paper exit PS
FRONT
PS716
Gate HP
PS720
Stacker no paper PS
(Only when A kit is
installed)
FM701
Stacker fan
(Only when A kit is
installed)
5-11
