PAPER FEED UNITS OF TRAYS 3 AND 4 (7255/7272)
3-K-7
3 DIS./ASSEMBLY
PAPER FEED UNITS OF TRAYS 3 AND 4 (7255/7272)
Caution:
Trays 3 and 4 have the same shape and
mechanism.
[1] Removing and Reinstalling the Paper
Feed Unit
The contents here shall be in accordance with
the "[1] Removing and Reinstalling the Paper
Feed Unit" of PAPER FEED UNITS OF TRAY 1
AND 2 (7155/7165).
[2] Removing and Reinstalling the Paper
Feed Tray 3 and 4
Warning:
When removing the tray, stand in a proper
position so that you do not hurt your back
and waist. If the tray contains paper,
remove all paper before removing the tray.
Caution:
Be sure the power cord has been
unplugged from the wall outlet.

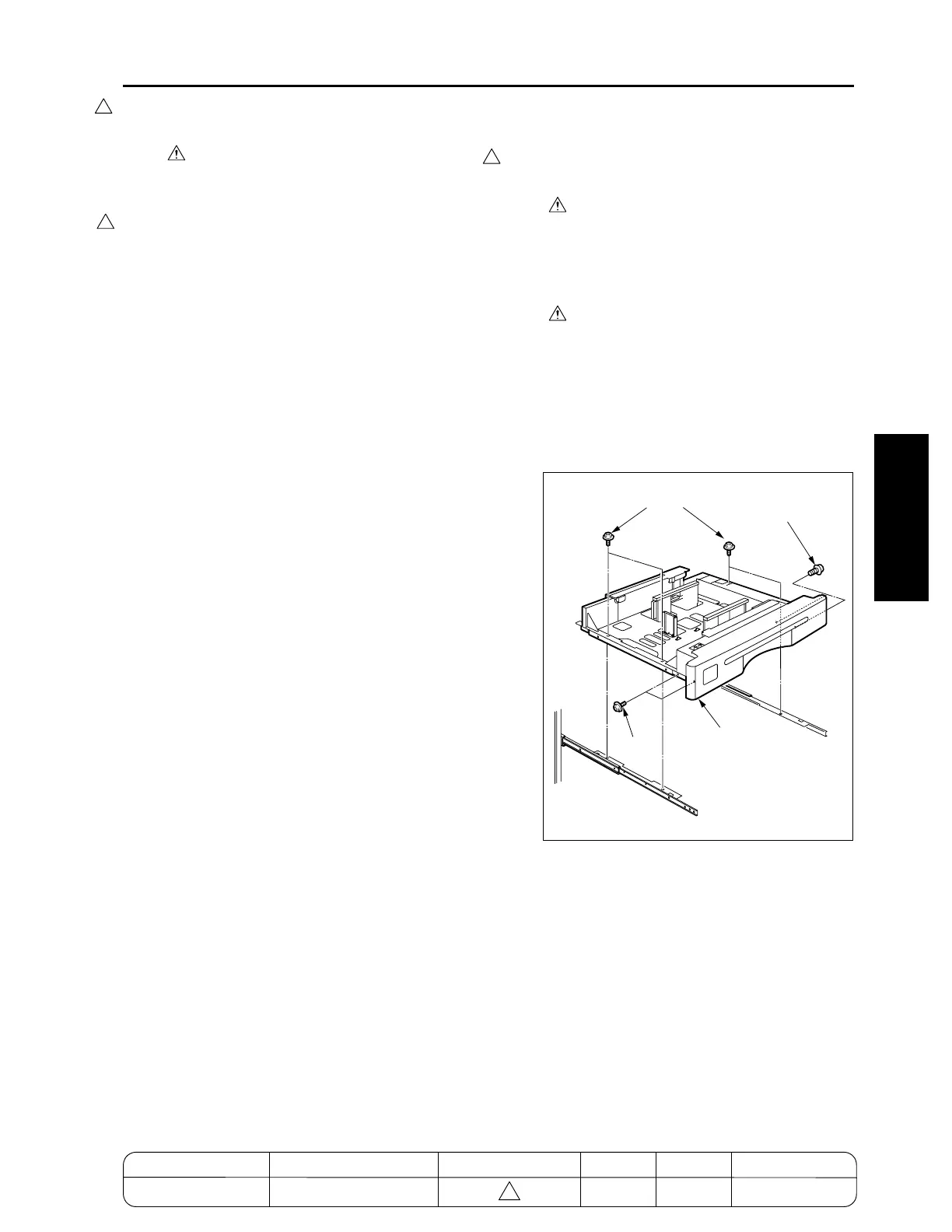

a. Procedure
(1) Draw out paper feed tray 3.
(2) Remove the paper feed unit.
(3) Remove eight screws and detach the tray 3 by
lifting.
(4) Reinstall the above parts following the removal
steps in reverse.
4
7272ma3020
Screws
Screws
Screws
Tray 3
4
MODEL MANUAL REVISED EDITION DATE PAGE METHOD
SERVICE MANUAL Dec. 2003
7155/7165/7255/7272
3-K-7 ADDITION
4
4
