CLEANING/TONER RECYCLE UNIT
2-I-1
2 UNIT EXPLANATION

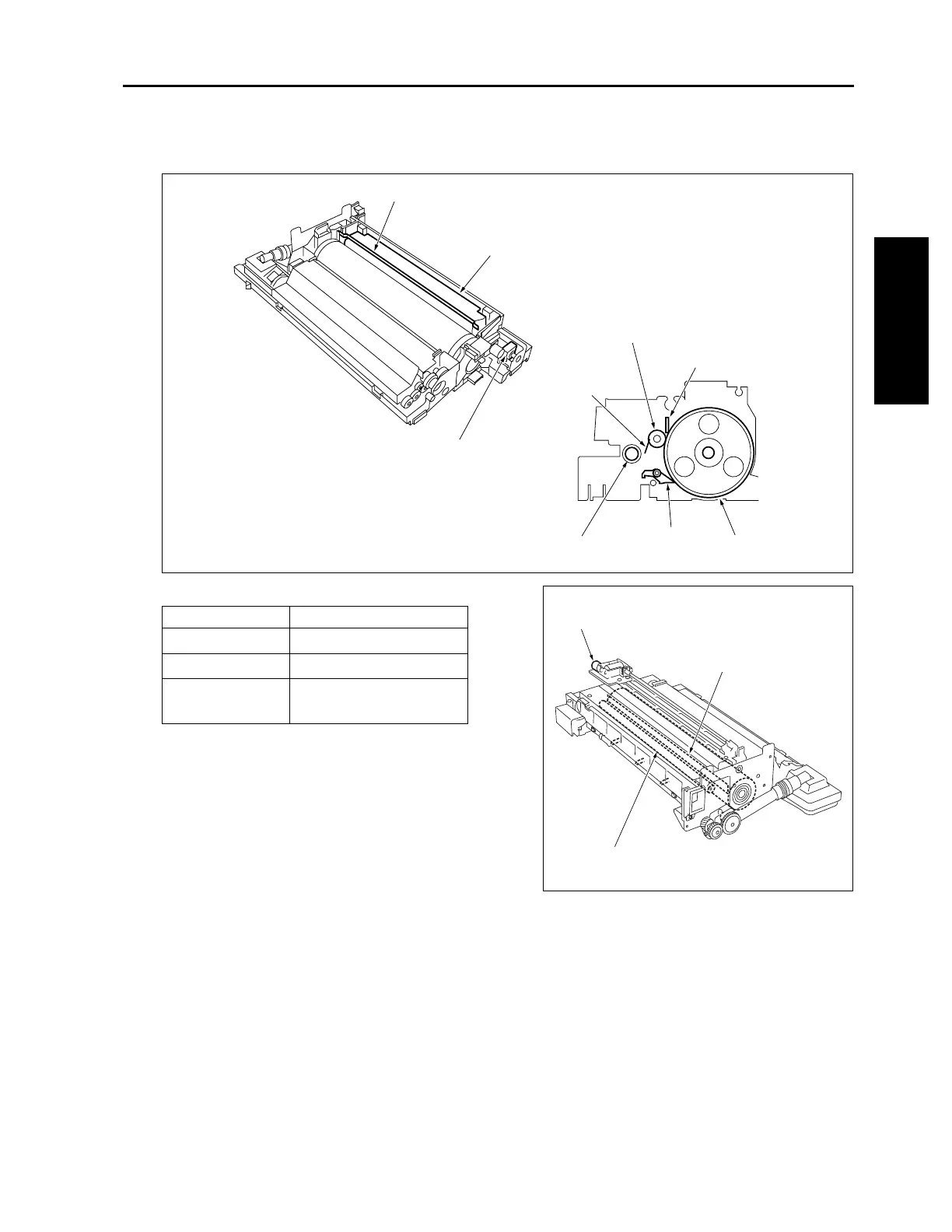

CLEANING/TONER RECYCLE UNIT
[1] Composition
[2] Mechanisms
*1 Toner collection
Toner removed by the cleaning blade is collected
by the toner guide roller (TGR) and removed by
the scraper, then conveyed by the toner convey-
ance screw to be reused. High pressure is
applied to the toner guide roller (TGR) to
enhance the toner cleaning ability.
*2 Toner recycle
When the drum performs preliminary rotation as
warm-up, toner recycle MC (MC14) is turned
OFF, stopping the drive force from the toner con-
veyance screw. This prevents excessive recy-
cled toner from being conveyed to the developing
unit.
Cleaning blade
Cleaning/toner recycle section
Toner guide roller (TGR)
Cleaning blade
Scraper
Toner conveyance screw
Separation
claw
Drum
Toner recycle MC (MC14)
Mechanism Method
Drum cleaning Cleaning blade
Toner collection *1 Toner guide roller (TGR)
Toner recycle Screw conveyance + Toner
recycle MC (MC14)
Toner guide roller (TGR)
Cleaning blade
HV Terminal
