ADU UNIT
3-N-19
3 DIS./ASSEMBLY
(7) Remove two screws to release the high voltage
supply unit (1).
(8) Disconnect the two connectors (CN460, 461).
Caution: Each relay connector consists of two
male sides and one female side. Be
sure to remove only the male side
(shown below) of the connector.
(9) Remove two screws to remove the conveyance
unit.
(10) Disconnect the three connectors (CN421, 426,
427)
Caution: Each relay connector consists of two
male sides and one female side. Be
sure to remove only the male side
(shown below) of the connector.
(11) Remove two screws to remove the harness
guide plate (front).
(12) Remove four screws to detach the registration
drive motor assembly.

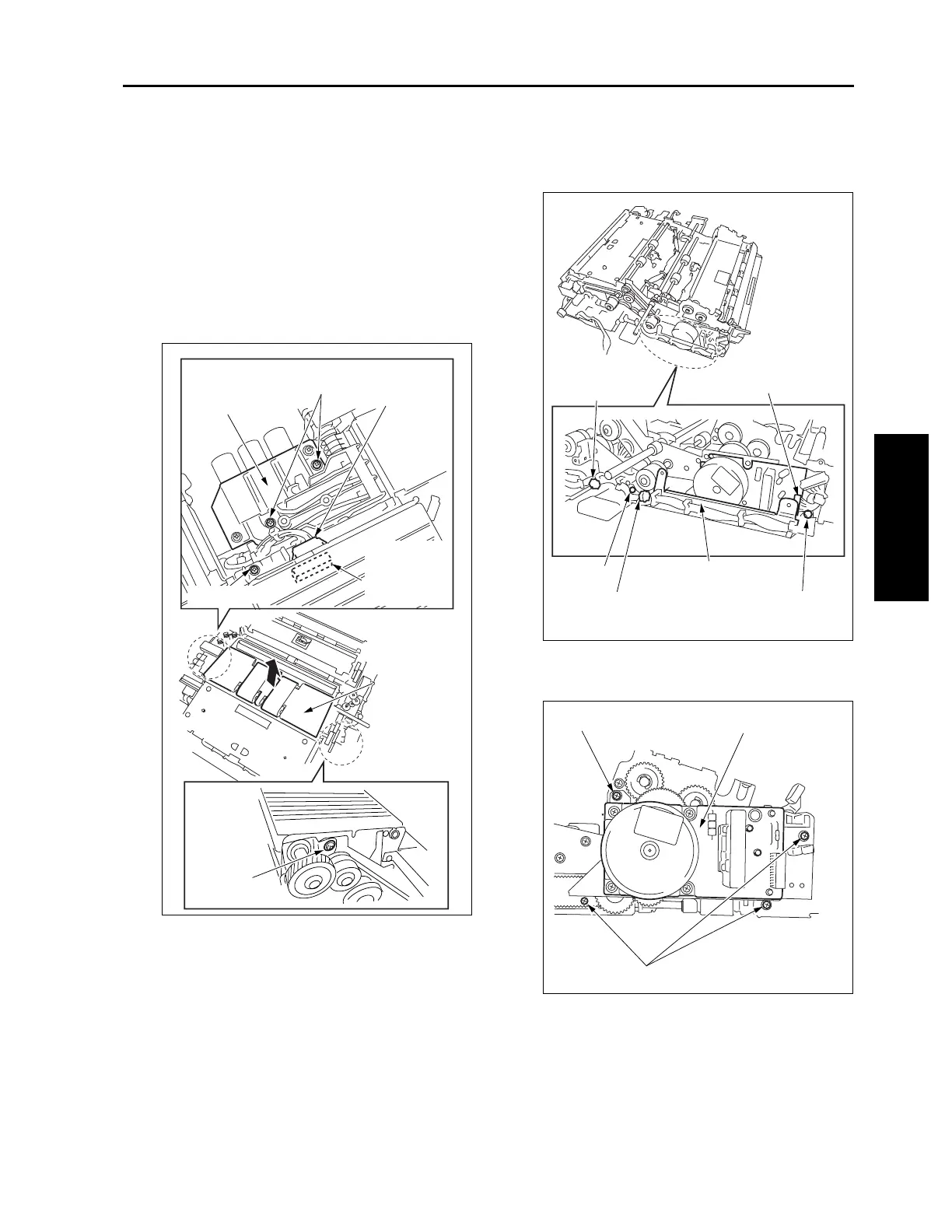

High voltage
supply unit (1)
Screws
Relay connector
(CN460)
Relay
connector
(CN461)
Conveyance
unit
Screw
Relay connector
(CN427)
Harness guide plate
(front)
Screw
Screw
Relay connector
(CN426)
Relay connector
(CN421)
Registration drive motor assembly
Screw
Screws(3)
3-N-13
To Next Page
