Konica Minolta bizhub 501 Service Manual

bizhub 501/421/361
3. PERIODIC CHECK
79
Field Service Ver.2.0 Mar. 2009
3.14 Maintenance procedure of the fusing section
3.14.1 Removing/reinstalling the fusing unit
Caution
• Since the fusing section gets hot immediately after turning off the main power switch (SW1) or the
power switch (SW2), you may suffer a burn. Be sure to conduct the operations when the tempera-
ture goes down sufficiently.
A. Procedure
1. Open ADU.
(See P.138)
2. Remove the right cover /Up.
(See P.138)
3. Open the conveyance unit.
(See P.29)

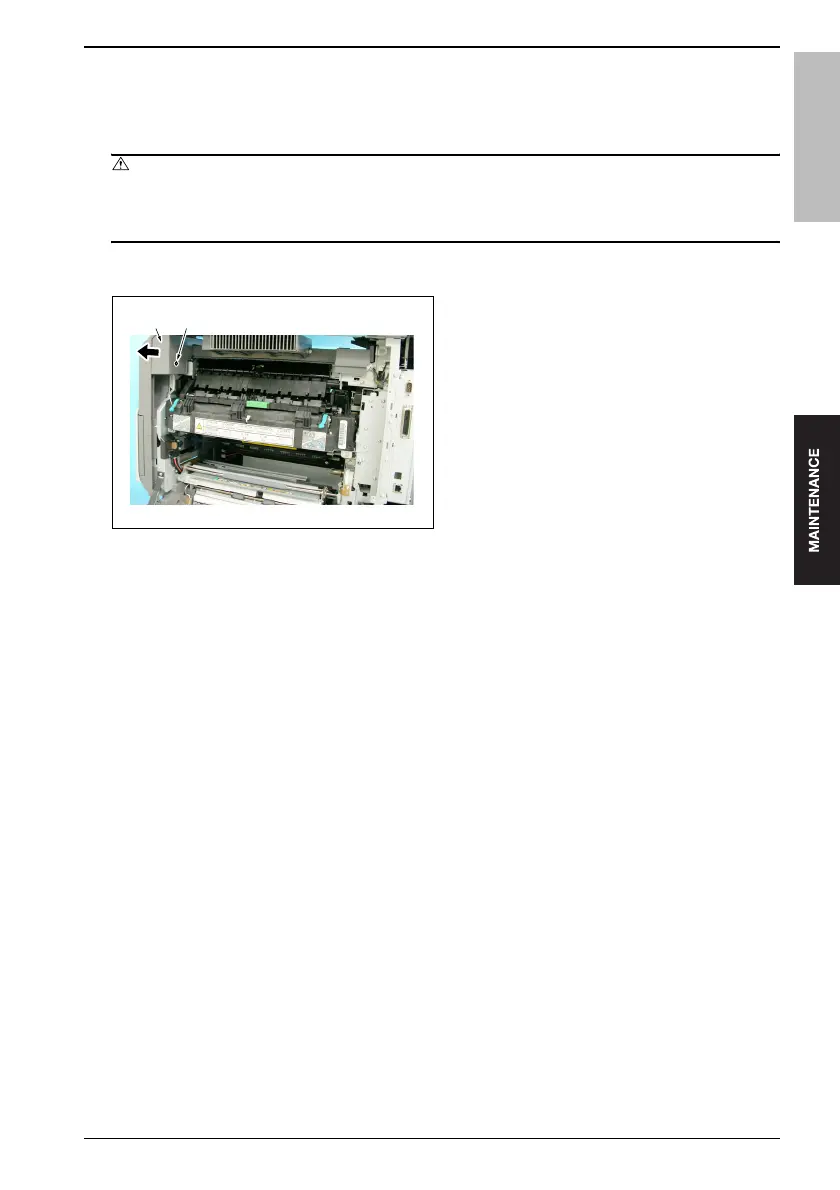

4. Loosen the screw [1] and remove the front auxil-
iary cover [2].
[1][2]
50gaf2c085nb

Konica Minolta bizhub 501 Specifications

General

Type	All-in-One Printer
Functions	Print, Copy, Scan, Fax
Print Speed (Black)	50 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (B&W)	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	50 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Paper Capacity	1, 150 sheets
Max Paper Capacity	5, 650 sheets
Automatic Duplexing	Yes
Duplex Printing	Yes
Connectivity	USB, Ethernet
Network Connectivity	Yes
Operating System Compatibility	Windows, Mac, Linux
Maximum Paper Size	11 x 17 inches
