2.1 Maintenance procedure
NOTE
• The alcohol described in the cleaning procedure of Maintenance represents the iso-
propyl alcohol.
2.1.1 Cleaning of the Roller
A. Periodic cleaning cycle
• Various Rollers : Every 250,000 prints *1
: Every 225,000 prints *2
•
Paper Holding Paddle
: Every 250,000 prints *1
: Every 225,000 prints *2
*1 501/421
*2 361
B. Procedure
1. Remove the Lift Tray.
(See P.13)
2. Remove the Conveyance Unit.
(See P.13)
3. Remove the Conveyance Top Cover.
(See P.9)

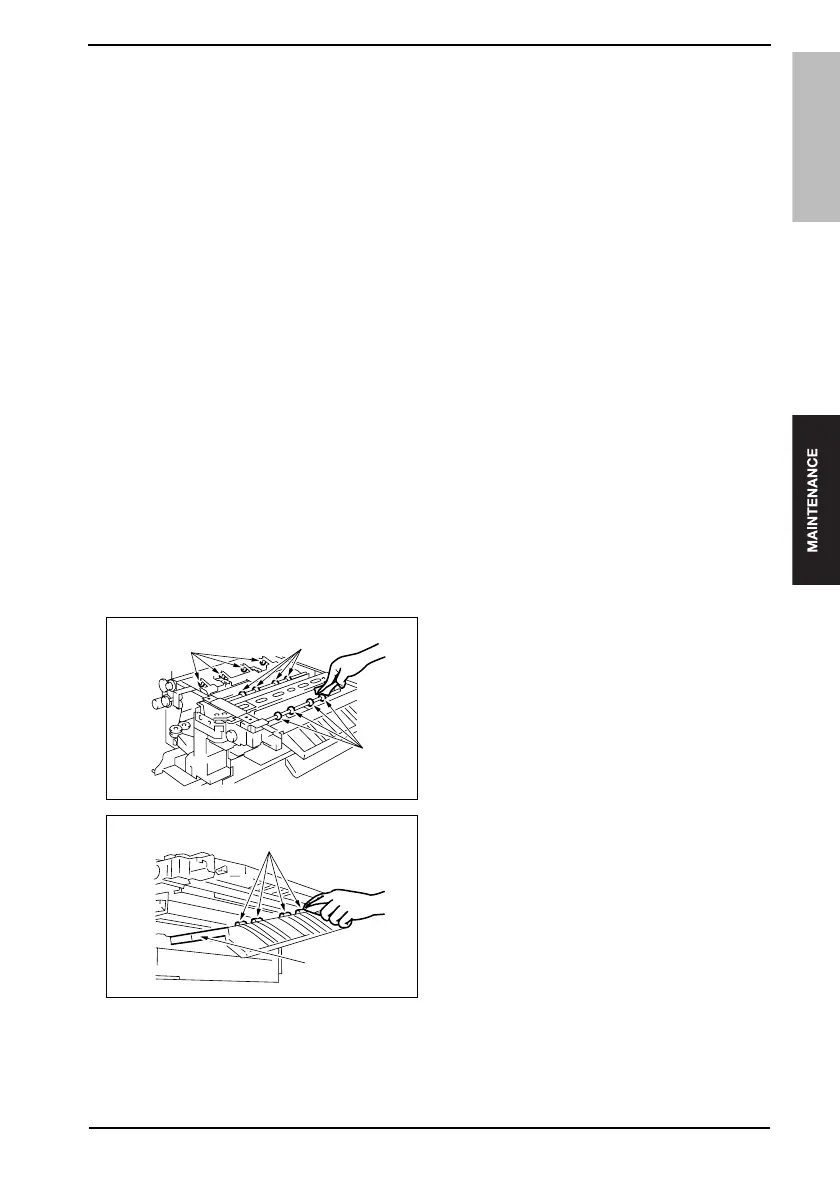

4. Using a soft cloth dampened with alco-
hol, wipe the roller [1].
5. Lower Processing Guide FN1 [2].
6. Using a soft cloth dampened with alco-
hol, wipe the roller [3].
[1]
[1]
[1]
4349f2c001na
[2]
[3]
4349f2c002na
