Konica Minolta bizhub 501 Service Manual

bizhub 501/421/361
6. OTHERS
131
Field Service Ver.2.0 Mar. 2009
6.1.3 Developing unit
(1) Parts not allowed to be removed
• 2 attaching screws of the developer restriction blade
• 1 fixing screw of the magnet adjustment plate
• Ds adjustment screws
Developing unit at 2 places (inside the cover)
(2) Reason for prohibition
Each of the developer restriction blade and the magnet adjustment plate is used to determine the height of
developer on the developing roller. And the Ds adjustment screws are also used to determine the distance
between the drum and the developing roller. These parts are adjusted to an appropriate value in advance.
Therefore do not remove these attaching screws and fixing screws.

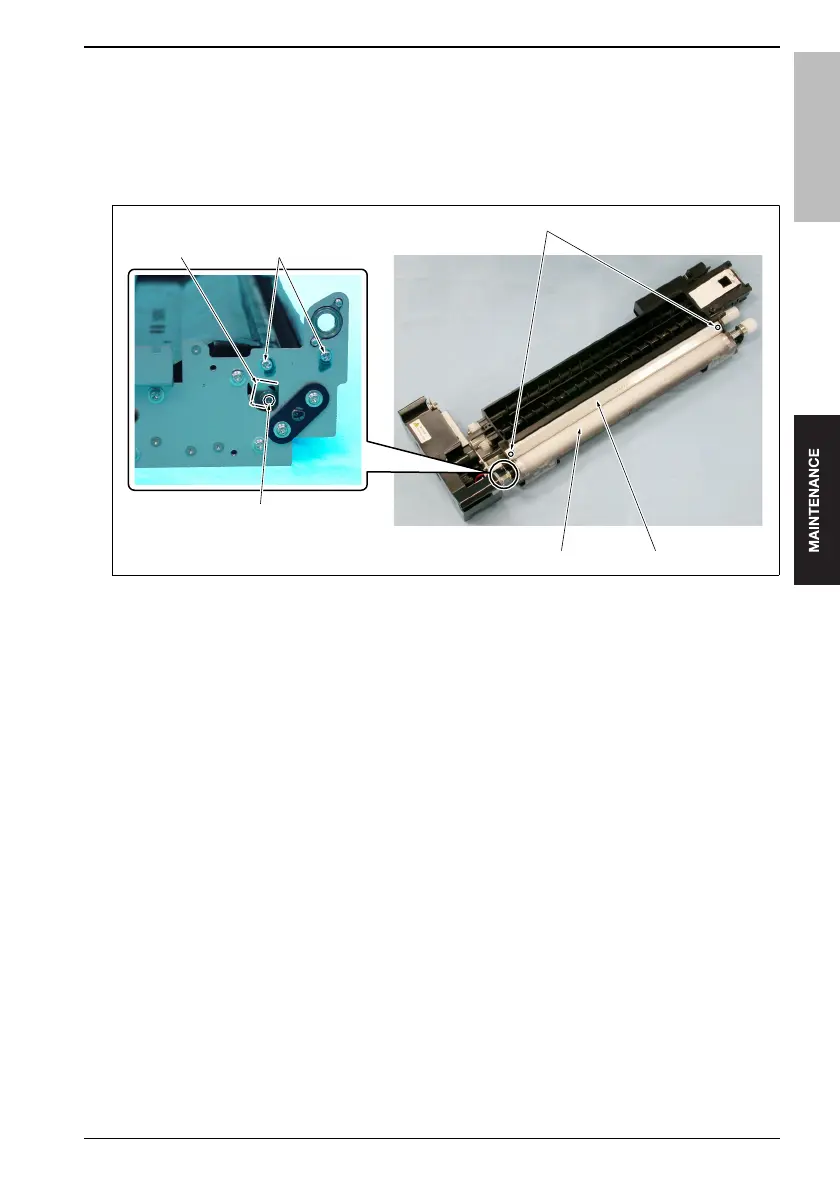

[1] Developer restriction blade [5] Screws not allowed to be removed
(Ds adjustment screws)
[2] Developing roller
[3] Screws not allowed to be removed [6] Screws not allowed to be removed
[4] Magnet adjustment plate
50gaf2c140na
[6]
[1][2]
[4] [5]
[3]

Konica Minolta bizhub 501 Specifications

General

Type	All-in-One Printer
Functions	Print, Copy, Scan, Fax
Print Speed (Black)	50 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (B&W)	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	50 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Paper Capacity	1, 150 sheets
Max Paper Capacity	5, 650 sheets
Automatic Duplexing	Yes
Duplex Printing	Yes
Connectivity	USB, Ethernet
Network Connectivity	Yes
Operating System Compatibility	Windows, Mac, Linux
Maximum Paper Size	11 x 17 inches
