Field Service Ver.1.0 May. 2008 4. MECHANICAL ADJUSTMENT
21
DF-613
îš„ ADJUSTMENT/SETTING
4. MECHANICAL ADJUSTMENT

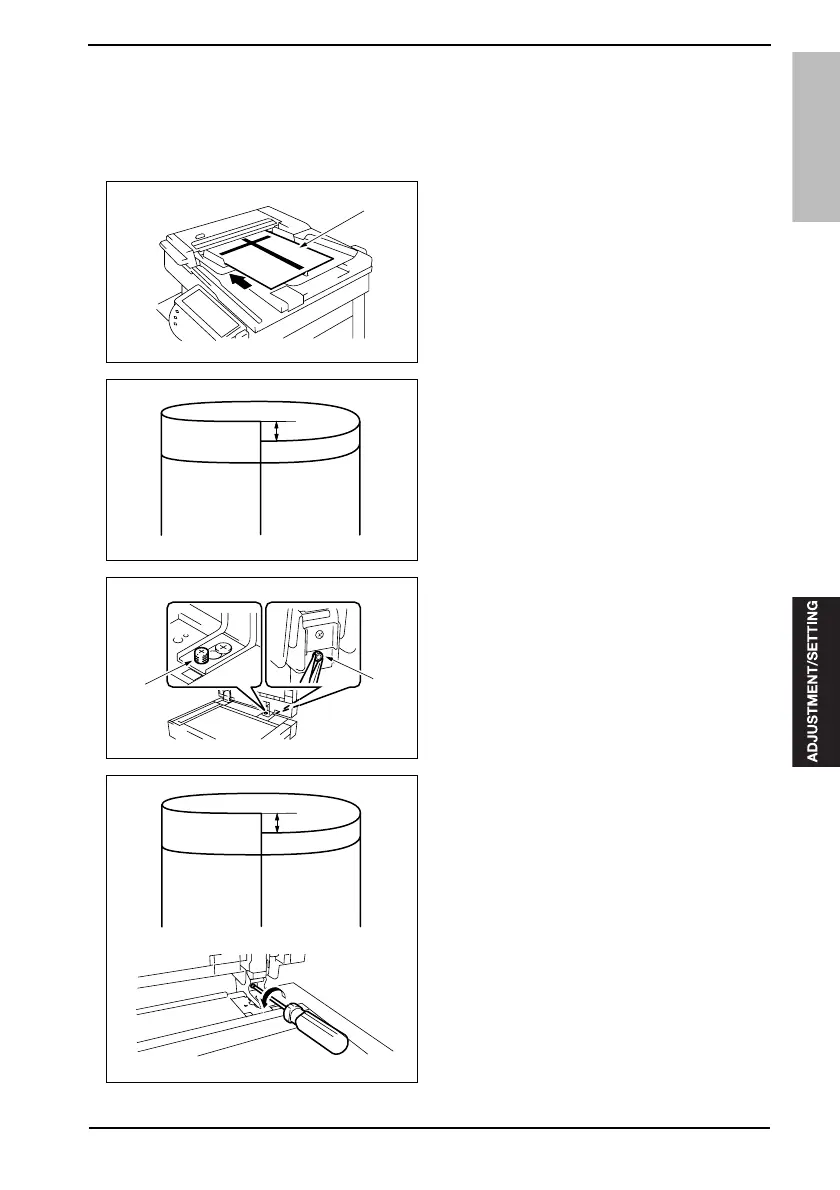

4.1 Leading Edge Skew Adjustment
1. Load the test chart [1] in the DF and
make one 1-sided copy five consecutive
times.
2. Fold each of the sample copies as illus-
trated and check for any deviation.
Specifications: 0 ± 3.0 mm
3. If the deviation does not fall within the
specified range, perform the following
adjustment procedure.
4. Open the DF.
5. Loosen the decorative screw [2] and the
nut [3] in the back to the right.
6. If there is a deviation as shown on the
figure, turn the screw counterclockwise
to adjust it.
16eaf3c001nb
[1]
16eaf3c002na
[3]
[2]
16eaf3c003na
16eaf3c004na
