Konica Minolta bizhub 501 Service Manual

bizhub 501/421/361
15. CONNECTOR LAYOUT DRAWING
401
Field Service Ver.2.0 Mar. 2009
15. CONNECTOR LAYOUT DRAWING
15.1 Main body
15.1.1 Connector in the board

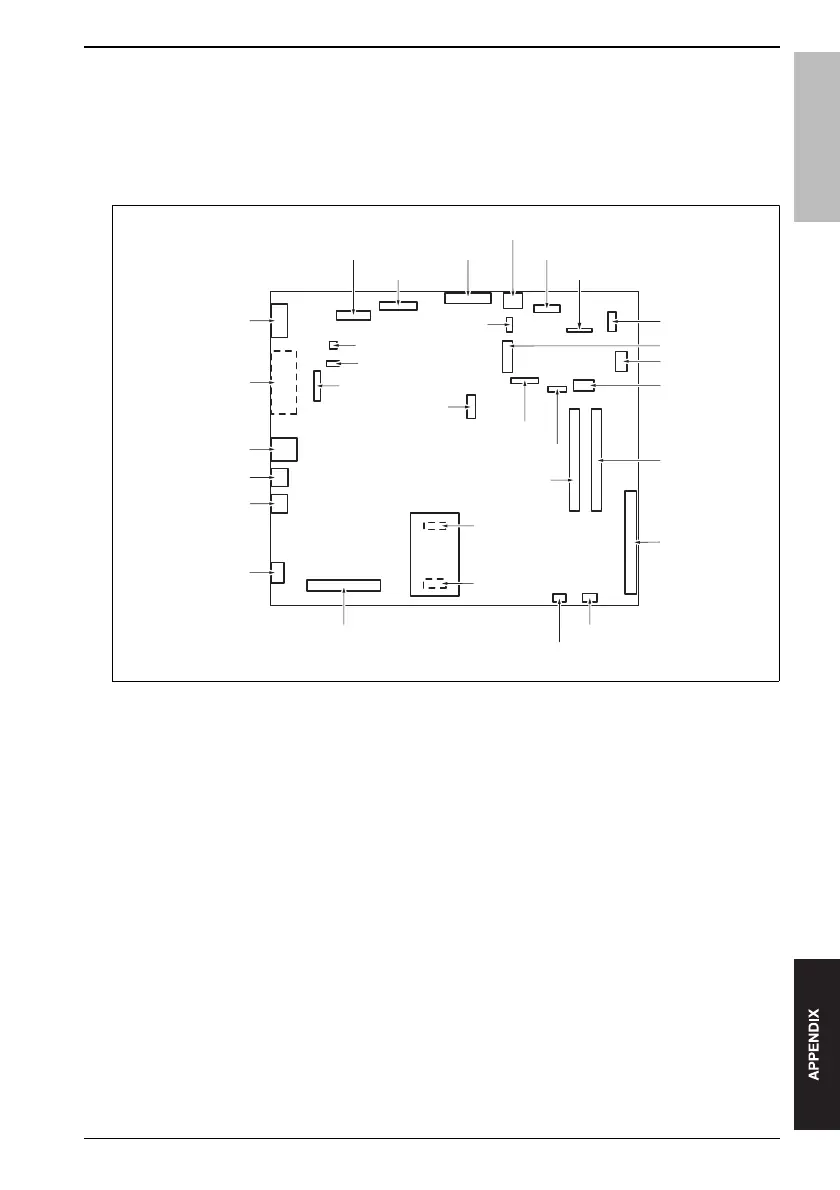

A. Overall control board (OACB)
a0r5f5c018ca
2201 (W : 4 pin)
2301 (BN : 3 pin)
2302 (BN : 3 pin)
1901 (Silver Metal : 8 pin)
2003 (Silver Metal : 4 pin)
2303 (BK : 6 pin)
2601 (BN : 40 pin)
2701 (BK : 100 pin)
1001 (BN : 200 pin)
2602 (BN : 40 pin)
4603 (BN : 5 pin)
4602 (BN : 8 pin)
1301 (BN : 14 pin)
3902 (BK : 8 pin)
1302 (BK : 50 pin)
2005 (Silver Metal : 4 pin)
2401 (BN : 20 pin)
2002 (W : 4 pin)
1000 (BN : 8 pin)
4601 (W : 4 pin)
NC
2304 (BK : 9 pin)
CF (BN : 50 pin)
2501 (BN : 2 pin)
NC
2702 (BK : 80 pin)
46 (GY : 50 pin)
2001 (BK : 7 pin)
3601 (BN : 5 pin)
3501 (BN : 24 pin)
3901 (BK : 16 pin)
1101 (BN : 200 pin)
2004 (Silver Metal : 4 pin)
NC
NC
NC
NC

Konica Minolta bizhub 501 Specifications

General

Type	All-in-One Printer
Functions	Print, Copy, Scan, Fax
Print Speed (Black)	50 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (B&W)	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	50 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Paper Capacity	1, 150 sheets
Max Paper Capacity	5, 650 sheets
Automatic Duplexing	Yes
Duplex Printing	Yes
Connectivity	USB, Ethernet
Network Connectivity	Yes
Operating System Compatibility	Windows, Mac, Linux
Maximum Paper Size	11 x 17 inches
