Konica Minolta bizhub 501 Service Manual

Field Service Ver.1.0 May. 2008 3. OTHER
5
SD-507
3.2 Disassembling and assembling list
3.3 Disassembling and assembling procedure

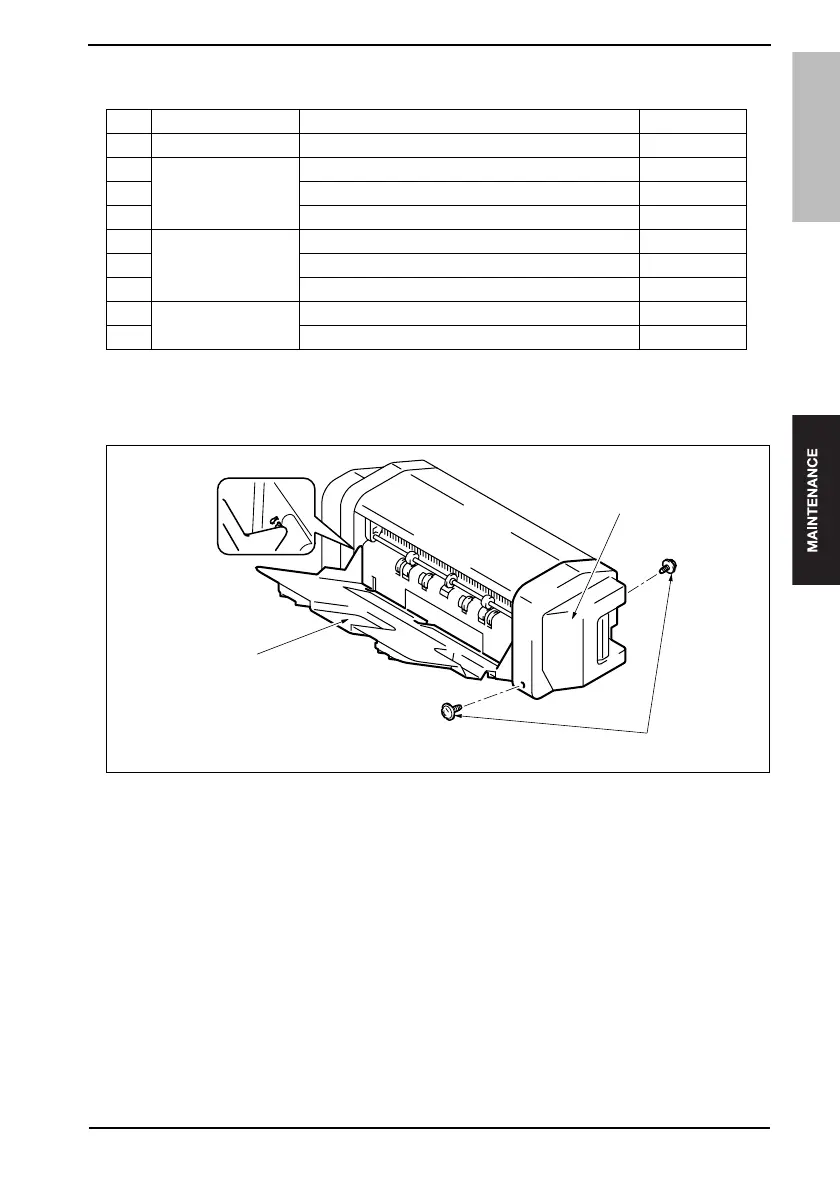

3.3.1 Paper Output Tray/Front Cover
1. Align the cutout and remove the Paper Output Tray [1].
2. Remove two screws [2], and remove the Front Cover [3].
3. Reinstall the above parts following the removal steps in reverse.
No. Section Part name Ref.Page
1 Paper Output Tray Paper Output Tray P. 5
2
Cover
Front Cover P. 5
3 Upper Cover P. 6
4 Rear Cover P. 6
5
Unit
Saddle Unit P. 7
6 Folding Unit P. 8
7 Stapler Unit P. 9
8
Others
Paper Guide Motor (M13) P. 1 4
9 Folding Roller P. 1 8
[1]
[3]
[2]
4511f2c004na

Konica Minolta bizhub 501 Specifications

General

Type	All-in-One Printer
Functions	Print, Copy, Scan, Fax
Print Speed (Black)	50 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (B&W)	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	50 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Paper Capacity	1, 150 sheets
Max Paper Capacity	5, 650 sheets
Automatic Duplexing	Yes
Duplex Printing	Yes
Connectivity	USB, Ethernet
Network Connectivity	Yes
Operating System Compatibility	Windows, Mac, Linux
Maximum Paper Size	11 x 17 inches
