Konica Minolta bizhub 501 Service Manual

6. OTHERS
140
Field Service Ver.2.0 Mar. 2009
bizhub 501/421/361

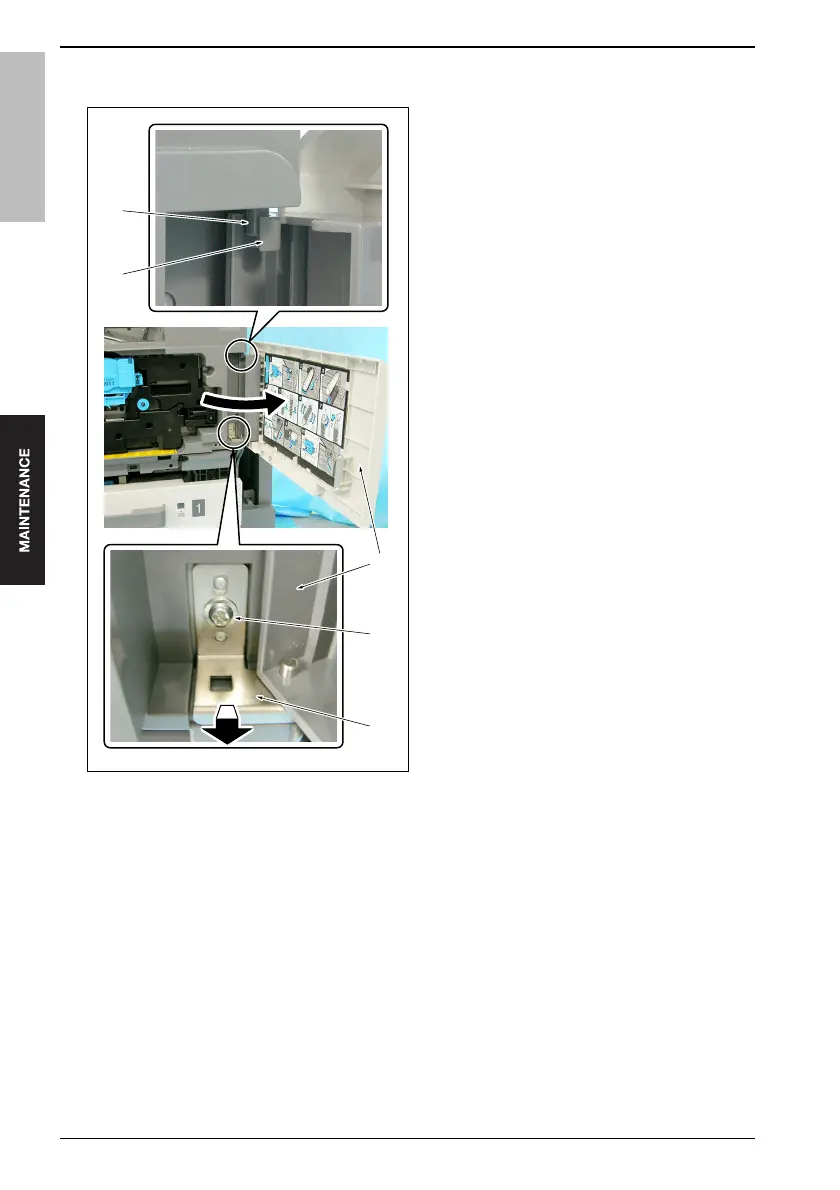

6.3.8 Removing/reinstalling the front door
A. Procedure
1. Open the front door [1].
2. Remove the front cover.
(See P.144)
3. Remove the screw [2] and then remove the sup-
port plate [3] and the front door at the same time.
Note
• When installing the front door, be sure first to
fit the installation hole [4] to the shaft [5].
4. Reinstall the above parts following the removal
steps in reverse.
50gaf2c057na
[5]
[4]
[2]
[3]
[1]

Konica Minolta bizhub 501 Specifications

General

Type	All-in-One Printer
Functions	Print, Copy, Scan, Fax
Print Speed (Black)	50 ppm
Print Resolution	1200 x 1200 dpi
Max Resolution (B&W)	1200 x 1200 dpi
Scan Resolution	600 x 600 dpi
Copy Speed (Black)	50 cpm
Copy Resolution	600 x 600 dpi
Fax Transmission Speed	33.6 Kbps
Paper Capacity	1, 150 sheets
Max Paper Capacity	5, 650 sheets
Automatic Duplexing	Yes
Duplex Printing	Yes
Connectivity	USB, Ethernet
Network Connectivity	Yes
Operating System Compatibility	Windows, Mac, Linux
Maximum Paper Size	11 x 17 inches
