FS-523/RU-507
3. MECHANICAL ADJUSTMENT
31
Field Service Ver.1.0 May. 2008
3.5 Adjusting the tray upper surface detection position
This adjustment is made when replacing the FS control board (FSCB), or the main tray upper limit LED (LED19)
or the main tray upper limit sensor (PS19).
A. Procedure
1.
Set the output check mode "Sensor output check
mode."
(See P.17)
2.

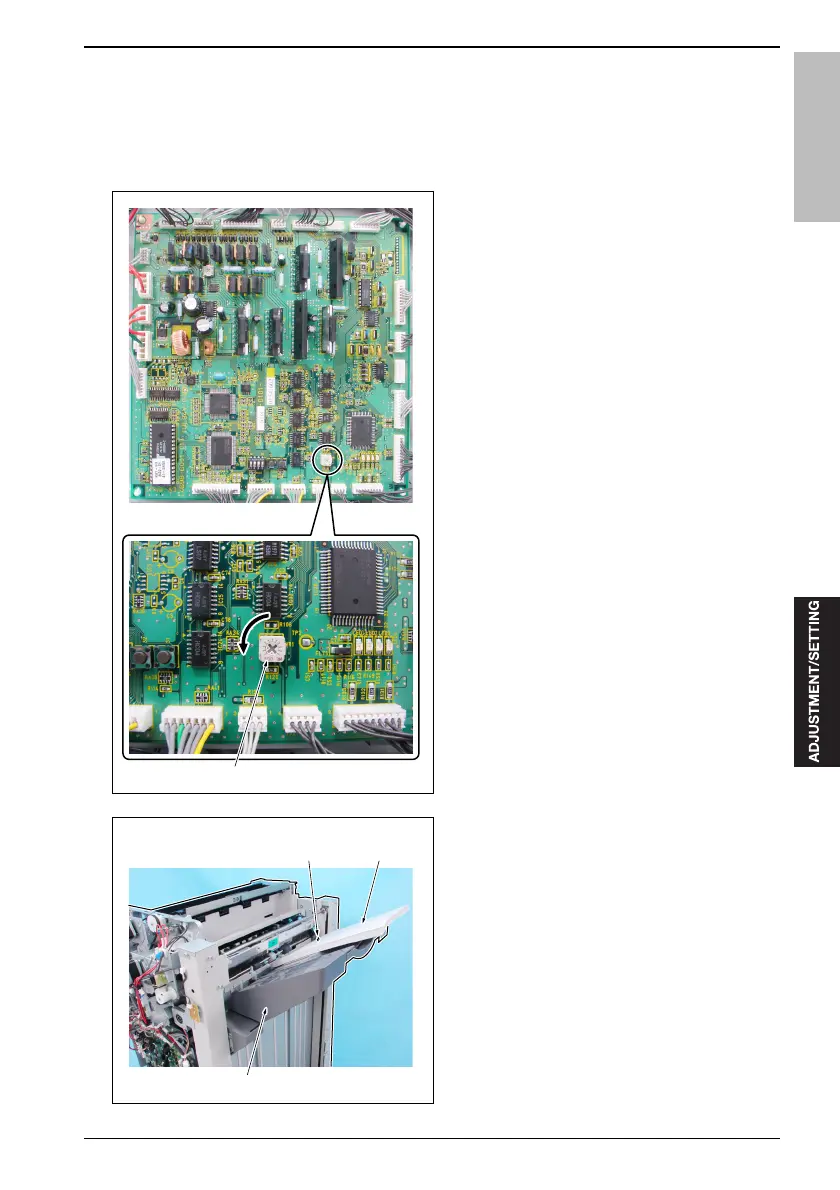

Rotate VR1 [1] provided on the FS control board
(FSCB) up to the limit counterclockwise.
3.
Place the paper [3] on the main tray [2] to block
the light of the main tray upper limit LED (LED19)
[4].
4521f3c011na
[1]
[3][4]
4521f3c012na
[2]
To Next Page
