Space Requirements

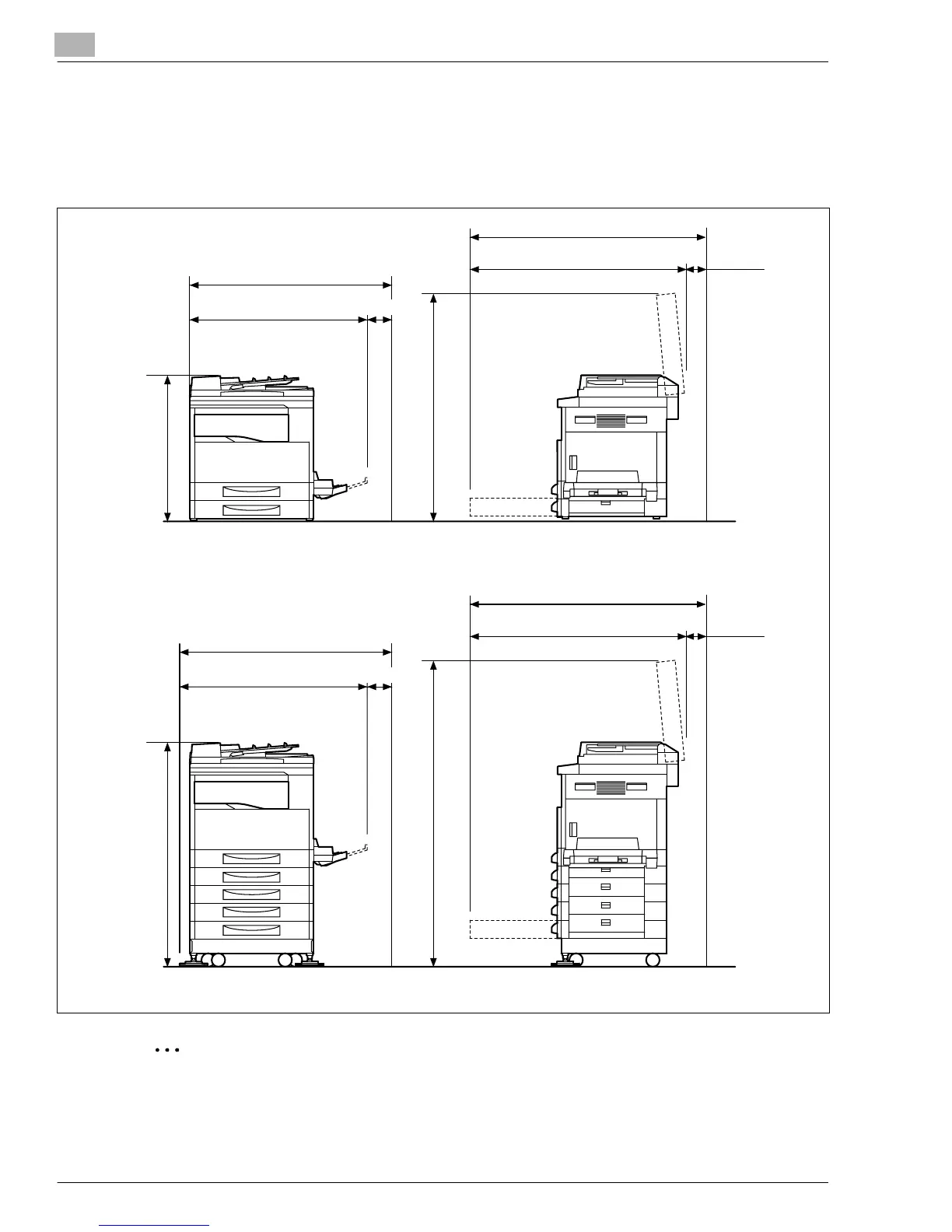

To ensure easy copier operation, supply replacement, and maintenance, adhere to the recom-
mended space requirements detailed below.
✎
Note
Be sure to allow a clearance of 3.9 in. (100 mm) or more at the back of the copier for the
ventilation duct and 5.9 in. (150 mm) or more at the right of the copier for the removal of the
misfed papers.
39.2 (995)
44.8 (1138)
40.9 (1038) 3.9 (100)
41.5 (1055)
60.0 (1524)
Unit: inch (mm)
Konica 7118
37.8 (959)
44.8 (1138)
40.9 (1038) 3.9 (100)
23.1 (588)
41.9 (1065)
Unit: inch (mm)
Konica 7115
43.7 (1109)
5.9
(150)
45.1 (1145)
5.9
(150)
