Korg PA3X - Page 88

CAV0010079 - HARNESS CONTROL BOARD/MB/RIGHT PANEL

1

FLAT CABLE AWM 2651 20 WIRE

L= 380mm

N.3 MOLEX PICOFLEX 90327-0320

1

1

L= 70mm

1

CAV0010078 - HARNESS M.B./OUTPUT BOARD

1

FLAT CABLE AWM 2651 20 WIRE

N.2 MOLEX PICOFLEX 90327-0326

L= 50mm

1

CAV0010080 - HARNESS VIDEO OUT

1

FLAT CABLE AWM 2651 12 WIRE

L= 270mm

N.2 MOLEX PICOFLEX 90327-0312

1

CAV0010084 - HARNESS KEYBOARD UPPER 61

CAV0010091 - HARNESS SOUND CONTROL 61

FLAT CABLE AWM 2651 8 WIRE

L= 150mm

N.2 MOLEX PICOFLEX 90327-0308

1

1

CAV0010089 - HARNESS KEYBOARD INTERFACE/M.B.

FLAT CABLE AWM 2651 10 WIRE

L= 500mm

N.2 MOLEX PICOFLEX 90327-0310

1

1

Opponent Assembling

CAV0010090 - HARNESS LEFT/RIGHT PANEL

FLAT CABLE AWM 2651 16 WIRE

L= 85mm

N.2 MOLEX PICOFLEX 90327-0316

1

1

CAV0010092 - HARNESS RIBBON CONTROL 61

FLAT CABLE AWM 2651 6 WIRE

L= 280mm

N.2 MOLEX PICOFLEX 90327-0306

1

1

Opponent Assembling


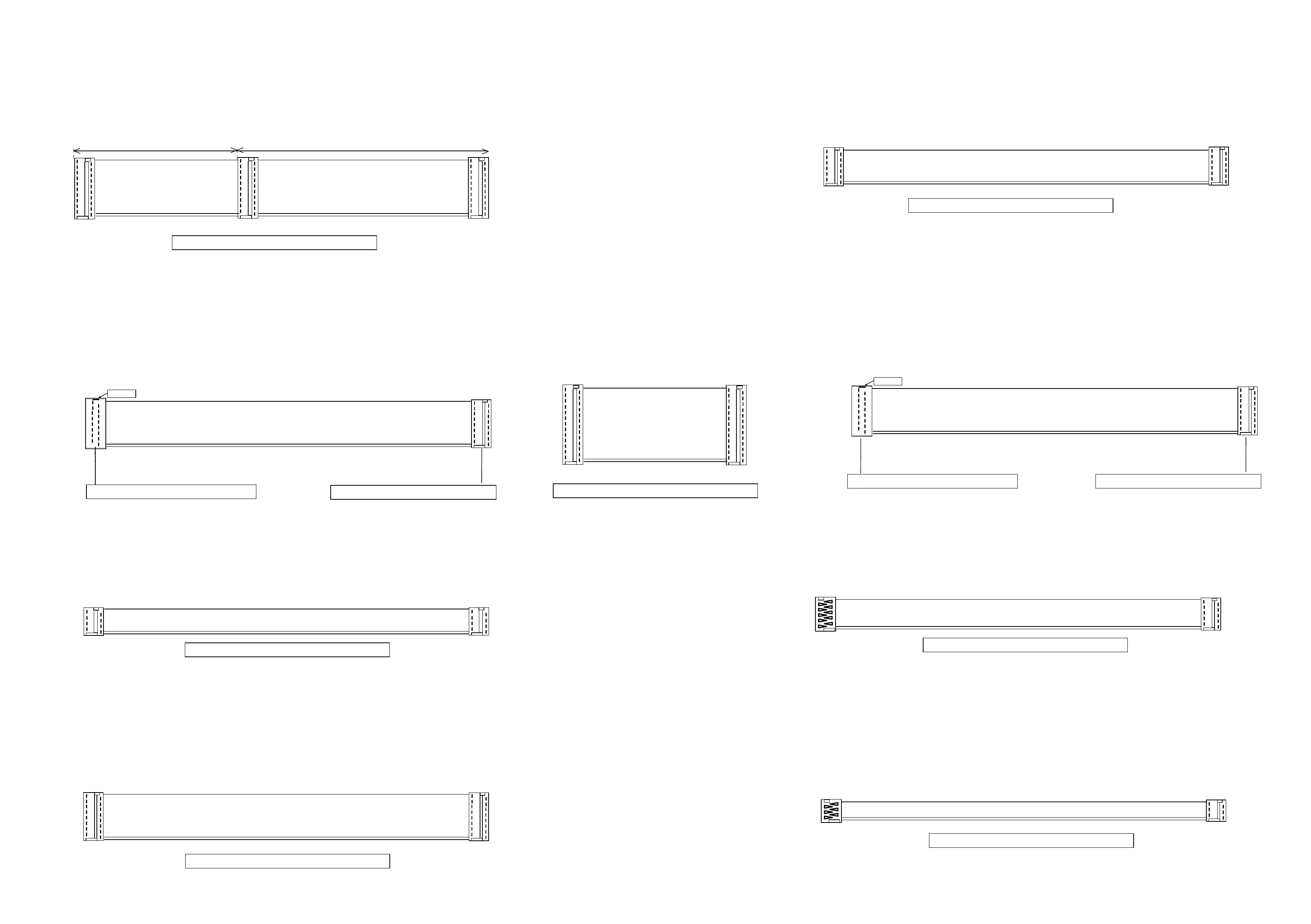

Pa3X 61keys FLAT CABLES

FLAT CABLE AWM 2651 16 WIRE

L= 290mm

MOLEX PICOFLEX 90327-0316

1

1

TYCO MICROMATCH 1-215083-6

Opponent Assembling

Mec. Key

CAV0010083 - HARNESS KEYBOARD LOWER

FLAT CABLE AWM 2651 16 WIRE

L= 400mm

MOLEX PICOFLEX 90327-0316

1

1

TYCO MICROMATCH 1-215083-6

Opponent Assembling

Mec. Key

